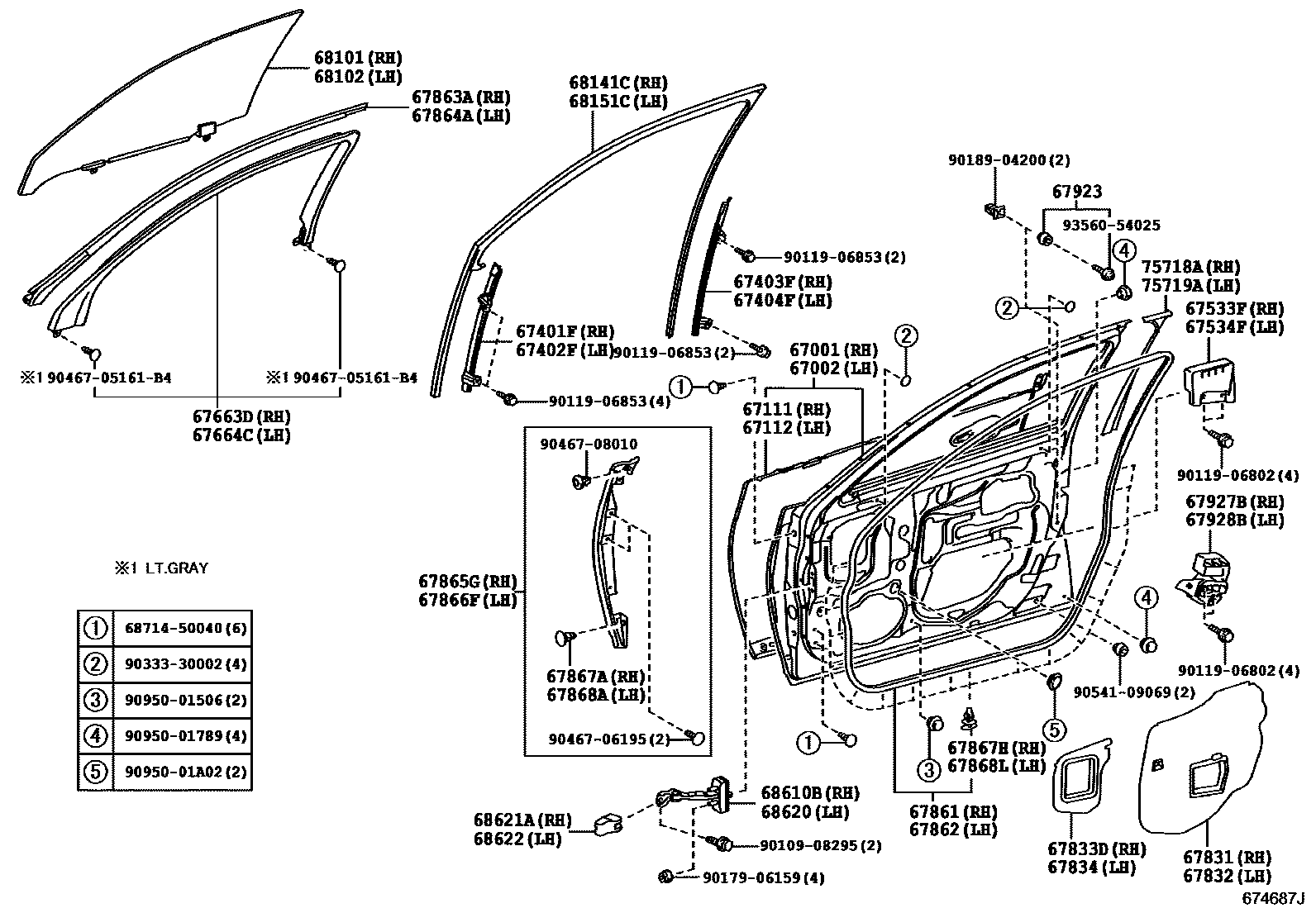

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67533FPAD, FRONT DOOR LOWER FRAME GARNISH, RH
67534FPAD, FRONT DOOR LOWER FRAME GARNISH, LH
67663DGARNISH, DOOR FRAME, RH
BLACK,TRIM1#,2#
ORCHID BROWN,TRIM00,01
ORCHID BROWN,TRIM0#
67664CGARNISH, DOOR FRAME, LH
BLACK,TRIM1#,2#
ORCHID BROWN,TRIM00,01
ORCHID BROWN,TRIM0#
67831COVER, FRONT DOOR SERVICE HOLE, RH
67832COVER, FRONT DOOR SERVICE HOLE, LH
67833DCOVER, FRONT DOOR SERVICE HOLE, NO.2 RH
67834COVER, FRONT DOOR SERVICE HOLE, NO.2 LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67863AWEATHERSTRIP, FRONT DOOR, UPPER RH
67864AWEATHERSTRIP, FRONT DOOR, UPPER, LH
67865GWEATHERSTRIP, FRONT DOOR, NO.3 RH
67866FWEATHERSTRIP, FRONT DOOR, NO.3 LH
67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
67867HRETAINER, DOOR WEATHERSTRIP, RH
67868ACLIP, DOOR GLASS WEATHERSTRIP(FOR FRONT DOOR)
67868LRETAINER, DOOR WEATHERSTRIP, LH
67923CUSHION, FRONT DOOR STIFFENER, NO.1
67927BCUSHION, SEPARATION DOOR STIFFENER, NO.1
67928BCUSHION, SEPARATION DOOR STIFFENER, NO.2
68101GLASS SUB-ASSY, FRONT DOOR, RH
*IRCL,T=5.1,GREEN
68102GLASS SUB-ASSY, FRONT DOOR, LH
*IRCL,T=5.1,GREEN
68621ACOVER, FRONT DOOR CHECK, RH
68622COVER, FRONT DOOR CHECK, LH
75718ACOVER, FRONT DOOR BELT MOULDING END, REAR RH
75719ACOVER, FRONT DOOR BELT MOULDING END, REAR LH
6871450040
main68714-50040
9010908295
main90109-08295
9011906802
main90119-06802
9011906853
main90119-06853
9017906159
main90179-06159
9018904200
main90189-04200
9033330002
main90333-30002
9046705161B4
main90467-05161B4
9046706195
main90467-06195
9046708010
main90467-08010
9054109069
main90541-09069
9095001506
main90950-01506
9095001789
main90950-01789
9095001A02
main90950-01A02
9356054025
main93560-54025
54 parts on this diagram · 2 diagrams in section
