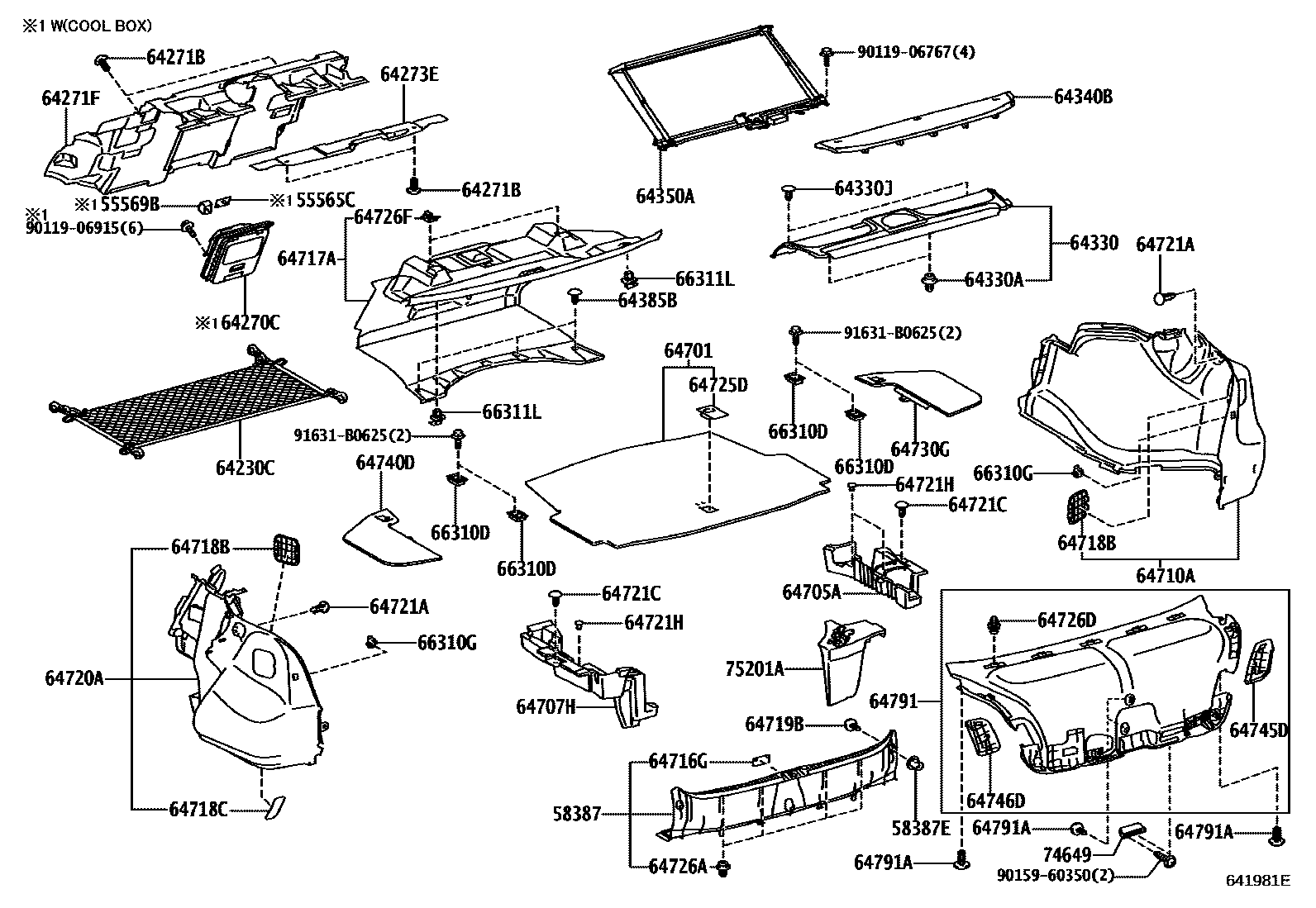

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
55565CHANDLE, GLOVE COMPARTMENT DOOR LH
MELLOW WHITE,TRIM01
55569BCOVER, GLOVE COMPARTMENT DOOR LOCK
MELLOW WHITE,TRIM01
58387PLATE, REAR FLOOR FINISH
58387ECLIP(FOR REAR FLOOR FINISH PLATE)
64230CNET ASSY, ROOM PARTITION
64270CBOARD ASSY, ROOM PARTITION
64271BCLIP(FOR ROOM PARTITION BOARD)
64271FTRIM, ROOM PARTITION
VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-WITH(POWER SLIDE)
VERSION U OR VERSION U I PACKAGE&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)
REAR SEAT ADJUSTER-W(POWER SLIDE SEAT)
VERSION U OR U I PACKAGE OR KOREA SPEC
64273EPAD, ROOM PARTITION
64330PANEL ASSY, PACKAGE TRAY TRIM
MELLOW WHITE,TRIM01
VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT),IVORY,TRIM00
VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER),IVORY,TRIM00
IVORY,TRIM00
VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER),MELLOW WHITE,TRIM01
MELLOW WHITE,TRIM01
VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT),MELLOW WHITE,TRIM01
LT.GRAY,TRIM1#
VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT),LT.GRAY,TRIM1#
VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER),LT.GRAY,TRIM1#
BLACK,TRIM2#
VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER),BLACK,TRIM2#
VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-W(POWER SLIDE SEAT),BLACK,TRIM2#
VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN
IVORY,TRIM00
VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,IVORY,TRIM00
REAR SEAT ADJUSTER-OTTOMAN,IVORY,TRIM00
VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-W(OTTOMAN),IVORY,TRIM00
REAR SEAT ADJUSTER-W(OTTOMAN),IVORY,TRIM00
VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,MELLOW WHITE,TRIM01
REAR SEAT ADJUSTER-OTTOMAN,MELLOW WHITE,TRIM01
MELLOW WHITE,TRIM01
VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-W(OTTOMAN),MELLOW WHITE,TRIM01
REAR SEAT ADJUSTER-W(OTTOMAN),MELLOW WHITE,TRIM01
REAR SEAT ADJUSTER-W(OTTOMAN),LT.GRAY,TRIM1#
VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-W(OTTOMAN),LT.GRAY,TRIM1#
LT.GRAY,TRIM1#
VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,LT.GRAY,TRIM1#
REAR SEAT ADJUSTER-OTTOMAN,LT.GRAY,TRIM1#
REAR SEAT ADJUSTER-W(OTTOMAN),BLACK,TRIM2#
BLACK,TRIM2#
VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN,BLACK,TRIM2#
REAR SEAT ADJUSTER-OTTOMAN,BLACK,TRIM2#
VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-W(OTTOMAN),BLACK,TRIM2#
MELLOW WHITE,TRIM01,07
VERSION U OR U I PACKAGE OR KOREA SPEC,MELLOW WHITE,TRIM01,07
REAR ARMREST-W(OTTOMAN:5SEAT+*RSE),MELLOW WHITE,TRIM01,07
MELLOW WHITE,TRIM07
IVORY,TRIM00,06
IVORY,TRIM00
VERSION U OR U I PACKAGE OR KOREA SPEC,IVORY,TRIM00,06
REAR ARMREST-W(OTTOMAN:5SEAT+*RSE),IVORY,TRIM00,06
REAR ARMREST-W(OTTOMAN:5SEAT+*RSE),LT.GRAY,TRIM1#
VERSION U OR U I PACKAGE OR KOREA SPEC,LT.GRAY,TRIM1#
REAR ARMREST-W(OTTOMAN:5SEAT+*RSE),BLACK,TRIM2#
VERSION U OR U I PACKAGE OR KOREA SPEC,BLACK,TRIM2#
W(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),MELLOW WHITE,TRIM01,07
W(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),MELLOW WHITE,TRIM01,07
W(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),IVORY,TRIM00,06
W(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),IVORY,TRIM00,06
W(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),LT.GRAY,TRIM1#
W(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),LT.GRAY,TRIM1#
W(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+CIGARETTE LIGHTER),BLACK,TRIM2#
W(OTTOMAN:4 SEAT)&REAR ARMREST-W(OTTOMAN:4SEAT+*RSE+ACC SOCKET:DC12V),BLACK,TRIM2#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)
MELLOW WHITE,TRIM01,07
VERSION U OR U I PACKAGE OR KOREA SPEC,MELLOW WHITE,TRIM01,07
VERSION U OR U I PACKAGE OR KOREA SPEC,LT.GRAY,TRIM1#
64340BPANEL ASSY, PACKAGE TRAY TRIM, NO.2
VERSION U OR VERSION U I PACKAGE&WITH(REAR COOLER)&REAR SEAT ADJUSTER-OTTOMAN
VERSION U OR U I PACKAGE OR KOREA SPEC,MELLOW WHITE,TRIM01,07
VERSION U OR U I PACKAGE OR KOREA SPEC,LT.GRAY,TRIM1#
64350ASHADE ASSY, REAR WINDOW
64385BCLIP
VERSION U OR VERSION U I PACKAGE,BLACK,TRIM0#,1#,2#
VERSION U OR U I PACKAGE OR KOREA SPEC,BLACK,TRIM0#,1#,2#
64701MAT SUB-ASSY, LUGGAGE COMPARTMENT
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
SPARE TIRE-GROUND TIRE,BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
64705AGUARD SUB-ASSY, SPARE WHEEL
SPARE TIRE-GROUND TIRE
64707HGUARD SUB-ASSY, SPARE WHEEL, NO.2
64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH
BLACK,TRIM0#,1#,2#
VERSION U OR VERSION U I PACKAGE,BLACK,TRIM0#,1#,2#
VERSION U OR U I PACKAGE OR KOREA SPEC,BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
VERSION U OR VERSION U I PACKAGE,BLACK,TRIM0#,1#,2#
VERSION U OR VERSION U I PACKAGE,BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM0#,1#,2#
VERSION U OR VERSION U I PACKAGE,BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
VERSION U OR U I PACKAGE OR KOREA SPEC,BLACK,TRIM0#,1#,2#
VERSION U OR VERSION U I PACKAGE,BLACK,TRIM0#,1#,2#
64718BCOVER, LUGGAGE TRIM SERVICE HOLE
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
64718CCOVER, LUGGAGE TRIM SERVICE HOLE
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH
BLACK,TRIM0#,1#,2#
VERSION U OR U I PACKAGE OR KOREA SPEC,BLACK,TRIM0#,1#,2#
VERSION U OR VERSION U I PACKAGE,BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
VERSION U OR VERSION U I PACKAGE,BLACK,TRIM0#,1#,2#
VERSION U OR VERSION U I PACKAGE,BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64721CCLIP(LUGGAGE COMPARTMENT)
SPARE TIRE-GROUND TIRE,BLACK,TRIM0#,1#,2#
64721HCLIP(LUGGAGE COMPARTMENT)
SPARE TIRE-GROUND TIRE,BLACK,TRIM0#,1#,2#
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
SPARE TIRE-GROUND TIRE,BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
64726ACLIP, LUGGAGE TRIM, REAR
64726DCLIP, LUGGAGE TRIM, REAR
64726FHOOK, LUGGAGE COMPARTMENT TRIM, NO.2
BLACK,TRIM0#,1#,2#
64730GBOARD, DECK TRIM SIDE, RH
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
SPARE TIRE-GROUND TIRE,BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
64740DBOARD, DECK TRIM SIDE, LH
BLACK,TRIM0#,1#,2#
SPARE TIRE-GROUND TIRE,BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#
64745DCOVER, REAR COMBINATION LAMP SERVICE, RH
BLACK,TRIM0#,1#,2#
64746DCOVER, REAR COMBINATION LAMP SERVICE, LH
BLACK,TRIM0#,1#,2#
64791COVER, BACK DOOR TRIM
BLACK,TRIM0#,1#,2#
AUTO & EASY CLOSER DOOR-W(DOOR & LUGAGE CLOSER &POWER TRUNK LID),BLACK,TRIM0#,1#,2#
AUTO & EASY CLOSER DOOR-WITH(DR & LUG CLOSER & POWER TRUNK LID),BLACK,TRIM0#,1#,2#
AUTO & EASY CLOSER DOOR-W(DOOR & LUG CLOSER & POWER TRUNK LID),BLACK,TRIM0#,1#,2#
AUTO & EASY CLOSER DOOR-W(DOOR & LUG CLOSER & POWER TRUNK LID),BLACK,TRIM0#,1#,2#
64791ACLIP(FOR BACK DOOR TRIM)
66310DHOOK ASSY, ROPE
66310GHOOK ASSY, ROPE
BLACK
66311LHOOK,ROPE
BLACK
74649GRIP, LUGGAGE COMPARTMENT DOOR ASSIST
75201ABOX, TOOL
SPARE TIRE-GROUND TIRE
9011906767
9011906915
9015960350
91631B0625
47 parts on this diagram · 4 diagrams in section
