SIDE MEMBER
53821BBRACKET, FRONT FENDER, REAR RH
5701
58331DBRACKET, LUGGAGE COMPARTMENT TRIM, NO.1
58741FPROTECTOR, REAR WHEEL EXTENSION, RH
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
61103AREINFORCEMENT SUB-ASSY, COWL SIDE, RH
61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH
sub61106-50041
61131CPILLAR, FRONT BODY, OUTER RH
61141CEXTENSION, FRONT PILLAR, UPPER INNER RH
61173AREINFORCEMENT, FRONT BODY PILLAR, UPPER INNER RH
61211RAIL, ROOF SIDE, OUTER RH
61225ARAIL, ROOF SIDE OUTER UPPER NO.1, RH
SINGAPOLE/BRUNEI SPEC
61247BREINFORCEMENT, ROOF SIDE RAIL, INNER RH
61307PILLAR SUB-ASSY, CENTER BODY, INNER RH
61339BSEAL, CENTER BODY PILLAR, INNER NO.1
61343APILLAR, CENTER BODY, INNER RH
61427REINFORCEMENT, ROCKER PANEL, NO.5 RH
61433AREINFORCEMENT, ROCKER PANEL, OUTER RH
61611PANEL, QUARTER, RH
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
61623EEXTENSION, QUARTER INNER PANEL, REAR RH
61625GEXTENSION, QUARTER PANEL, REAR RH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61708AREINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, RH
61711PANEL, ROOF SIDE, OUTER RH
61713BREINFORCE, ROOF SIDE, OUTER RH
61735APANEL, ROOF SIDE, INNER REAR RH
61815CCOVER, ROOF SIDE, INNER UPPER
61819COVER, ROOF SIDE, INNER LOWER
61824DPLATE, NOISE CONTROL, NO.1
61825APLATE, NOISE CONTROL, NO.2
61825CPAD, NOISE SHUTTER, NO.2
62555BPAD, PILLAR, NO.5
64181AREINFORCEMENT, REAR SEAT BELT ANCHOR, RH
64211STRAINER, PACKAGE TRAY TO FLOOR, RH
64213EXTENSION, PACKAGE TRAY STRAINER, RH
65637LINER, REAR WHEEL HOUSE, RH
AUSTRALIA SPEC
5870750060PLUG SET, HOLE
main58707-50060
6446950010CUSHION, LUGGAGE COMPARTMENT DOOR, NO.2
main64469-50010
6942350010CATCH, BACK DOOR LOCK
main69423-50010
6942350020CATCH, BACK DOOR LOCK
main69423-50020
6975950160SNAP, DOOR LOCK CONTROL LINK, NO.1
main69759-50160
9010906267
main90109-06267
9015960507
main90159-60507
9017806011
main90178-06011
9018906157
main90189-06157

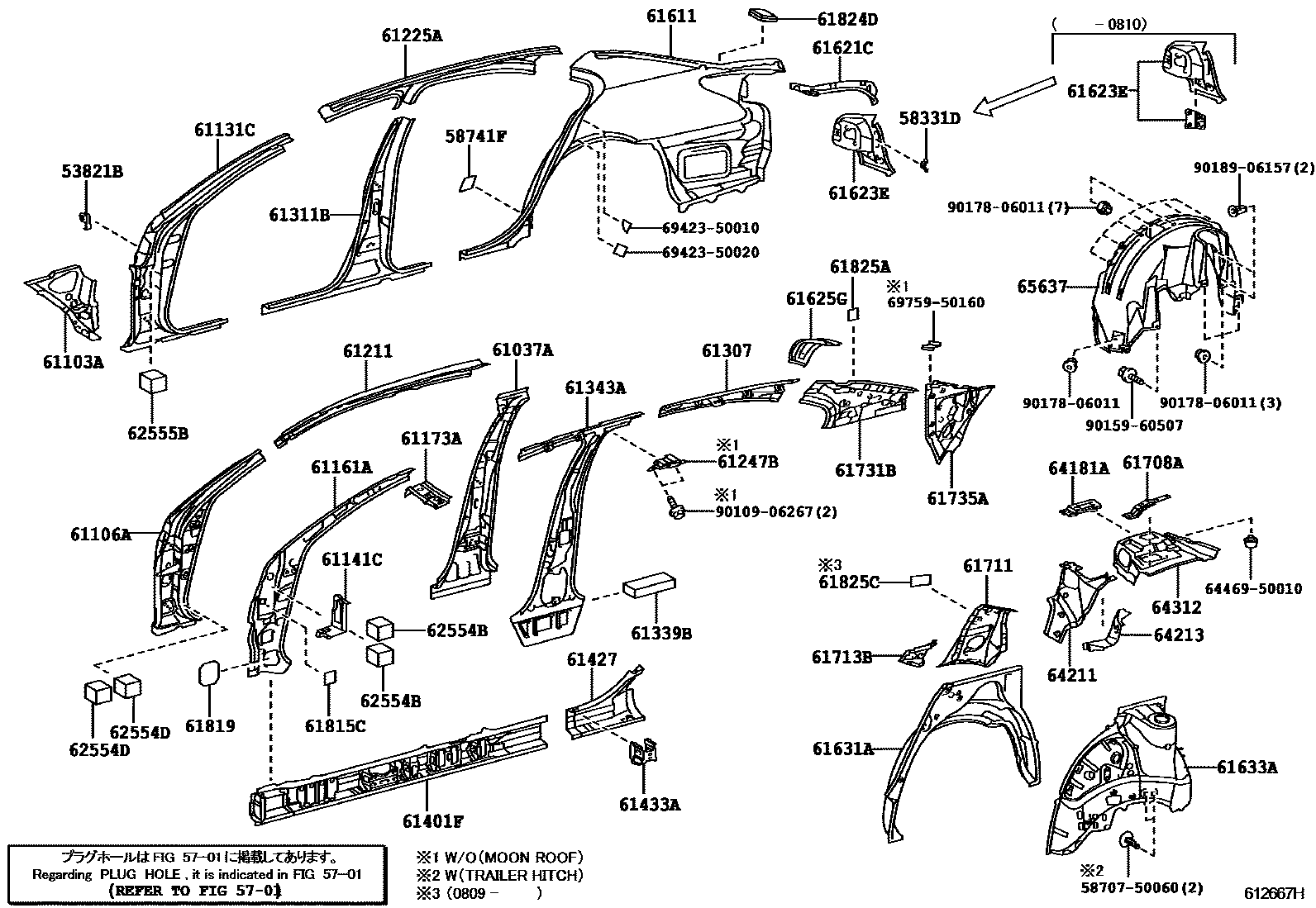

54 parts on this diagram · 2 diagrams in section
