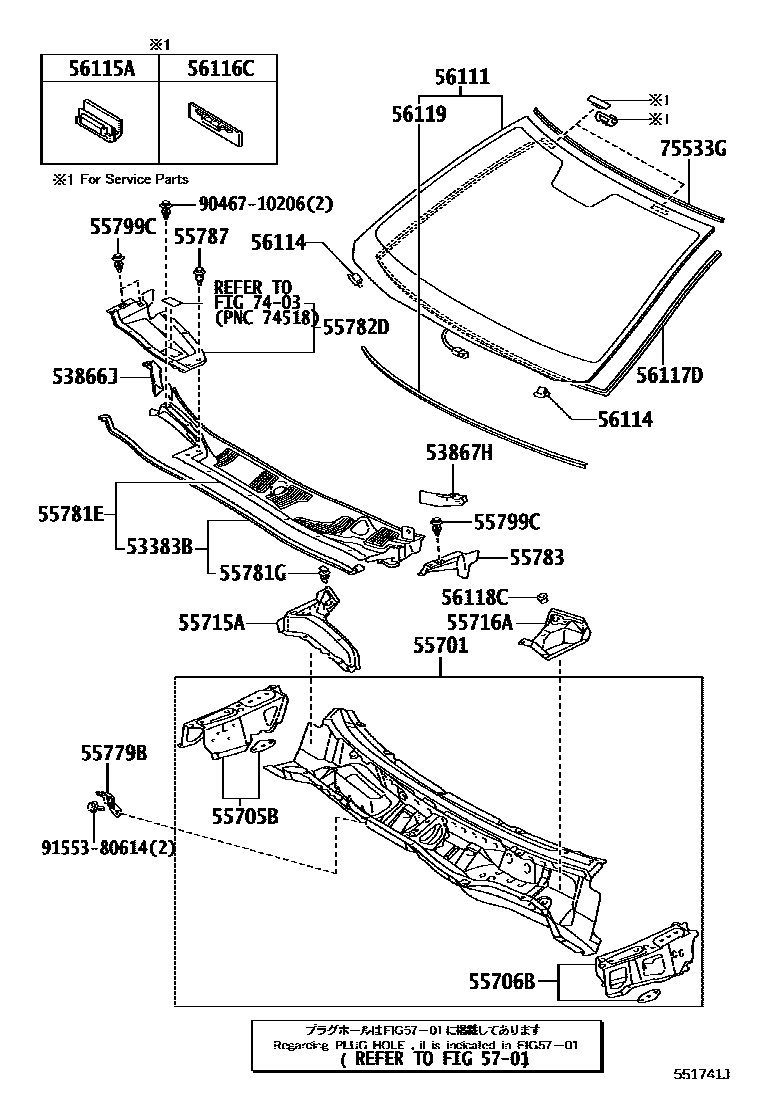

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55701PANEL SUB-ASSY, COWL
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55779BBRACKET, WIRING HARNESS MOUNTING
55781GCLIP, COWL TOP VENTILATOR LOUVER
55782PROTECTOR, COWL TOP VENTILATOR LOUVER, RH
55782DLOUVER, COWL TOP VENTILATOR, LH
55783PROTECTOR, COWL TOP VENTILATOR LOUVER, LH
55787CLIP, COWL VENTILATOR LOUVER, INNER
55799CCLIP, COWL TOP VENTILATOR LOUVER
BLACK
56111GLASS, WINDSHIELD
*LAM,T=5.48,GREEN
*LAM,T=5.48,GREEN
*LAM,T=5.48,BLUE,PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)
*LAM,T=5.48,BLUE,PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)
*LAM,T=5.48,BLUE,PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)
*LAM,T=5.48,BLUE,PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)
*LAM,T=5.48,GREEN,INTERMITTENT WIPER-AUTO(RAIN SENSOR)
*EHL,T=5.48,GREEN,WINDSHIELD DEICER-WITH
*EHL,T=5.48,GREEN,WINDSHIELD DEICER-WITH
sub56101-50750
*EHL,T=5.48,BLUE,PRE-COLLISION SYSTEM-WITH(*STC & *DMO & *RPCS & *PB)&WINDSHIELD DEICER-WITH
*EHL,T=5.48,BLUE,PRE-COLLISION SYSTEM-WITH(*DMO & *PB & *RPCS & *STC)&WINDSHIELD DEICER-WITH
sub56101-50991
56114RETAINER, WINDSHIELD GLASS
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117DDAM, WINDSHIELD GLASS ADHESIVE
56118CRETAINER, WINDSHIELD GLASS, NO.2
56119SEAL, WINDSHIELD GLASS
5701
7403
75533GMOULDING, WINDSHIELD, OUTSIDE
9046710206
main90467-10206
9155380614
main91553-80614
28 parts on this diagram · 2 diagrams in section
