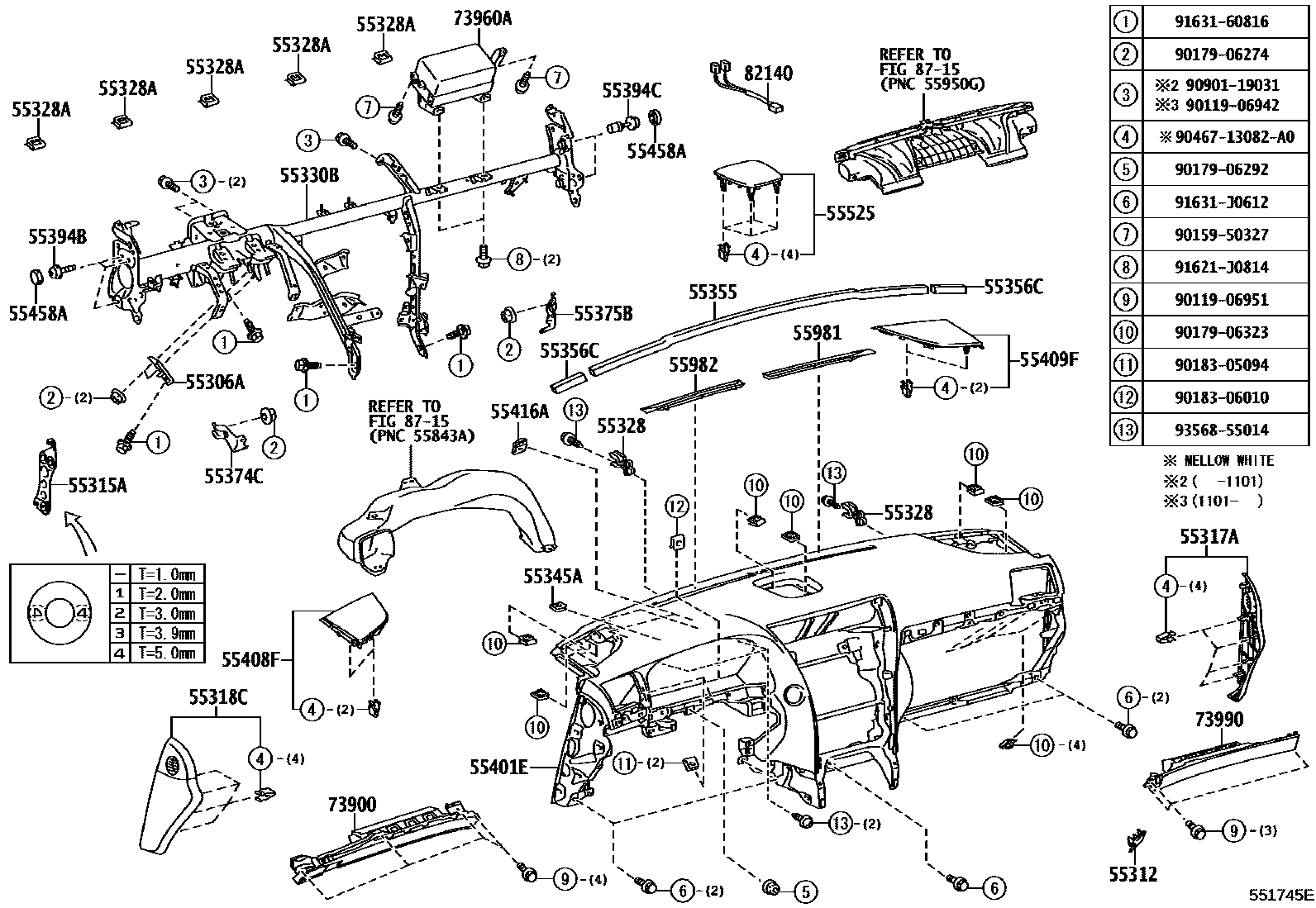

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1DRIVER SIDE 0004 1DRIVER SIDE 0005 1CENTER 0006 1CENTER 0007 1CENTER 0008 1PASSENGER SIDE 0009 1PASSENGER SIDE 0010 1PASSENGER SIDE 0011 1 0012 1DRIVER SIDE 0013 1DRIVER SIDE 0014 1DRIVER SIDE 0015 1CENTER 0016 1CENTER 0017 1CENTER 0018 1PASSENGER SIDE 0019 1PASSENGER SIDE 0020 1PASSENGER SIDE

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-50200iUSF4#..LHD200608-200809

main55306-50210iUSF4#..RHD200608-200809

55312PANEL, INSTRUMENT, LOWER

main55312-50070-A0iUSF4#..LHD200608-200809

IVORY,TRIM00

main55312-50070-A1iUSF40,41..D4..GCC201009-201209

MELLOW WHITE,TRIM07

main55312-50070-A2iUSF40,41..D4..GCC201009-201209

IVORY,TRIM00

main55312-50070-B0iUSF4#..LHD200809-200909

LT.GRAY,TRIM1#

main55312-50070-C0iUSF4#..LHD200809-200909

BLACK,TRIM2#

main55312-50080-A0iUSF40,41,45..RHD200809-200909

IVORY,TRIM00

main55312-50080-A1iUSF40,41,45..RHD200909-201209

MELLOW WHITE,TRIM07

main55312-50080-A2iUSF41,45..RHD200909-201209

IVORY,TRIM00

main55312-50080-B0iUSF40,41,45..RHD200809-200909

LT.GRAY,TRIM1#

main55312-50080-C0iUSF4#..RHD200608-200809

BLACK,TRIM2#

55315ASPACER, INSTRUMENT PANEL, NO.1

main62221-50020iUSF4#..LHD200909

T=1.0

main62221-50030iUSF4#..LHD200608-200809

T=2.0

main62221-50040iUSF4#..LHD200909

T=3.0

main62221-50050iUSF4#..LHD200909

T=3.9

main62221-50060iUSF4#..LHD200608-200809

T=5.0

main62231-50010iUSF4#..RHD200608-200809

T=1.0

main62231-50020iUSF4#..RHD200608-200809

T=2.0

main62231-50030iUSF4#..RHD200608-200809

T=3.0

main62231-50040iUSF40,41,45..RHD200809-200909

T=3.9

main62231-50050iUSF40,41,45..RHD200909

T=5.0

55317APANEL, INSTRUMENT SIDE, RH

main55317-50040-C0iUSF4#..RHD200608-200809

LT.GRAY,TRIM1#

sub55317-50900

main55317-50040-C1iUSF4#..RHD200608-200809

BLACK,TRIM2#

sub55317-50900

main55317-50040-E0iUSF40,41,45..RHD200809-200909

IVORY,TRIM00

sub55317-50900

main55317-50040-E1iUSF40,41,45..RHD200909-201209

MELLOW WHITE,TRIM07

sub55317-50900

main55317-50040-E2iUSF41,45..RHD200909-201209

ORCHID BROWN/IVORY,TRIM00,06

sub55317-50900

main55317-50050-C0iUSF4#..LHD200608-200809

LT.GRAY,TRIM1#

sub55317-50901

main55317-50050-C1iUSF4#..LHD200608-200809

BLACK,TRIM2#

sub55317-50901

main55317-50050-E0iUSF4#..LHD200809-200909

IVORY,TRIM00

sub55317-50901

main55317-50050-E1iUSF4#..LHD200608-200809

MELLOW WHITE,TRIM01

sub55317-50901

main55317-50050-E2iUSF40,41..HTWC;USF4#..LHD..D4..EUR200909-201209

ORCHID BROWN/IVORY,TRIM00,06

sub55317-50901

55318CPANEL, INSTRUMENT SIDE, LH

main55318-50040-C0iUSF4#..LHD200608-200809

LT.GRAY,TRIM1#

sub55318-50900

main55318-50040-C1iUSF4#..LHD200909-201209

BLACK,TRIM2#

sub55318-50900

main55318-50040-E0iUSF4#..LHD200608-200809

IVORY,TRIM00

sub55318-50900

main55318-50040-E1iUSF40,41..D4..GCC201009-201209

MELLOW WHITE,TRIM07

sub55318-50900

main55318-50040-E2iUSF40,41..D4..GCC201009-201209

ORCHID BROWN/IVORY,TRIM00

sub55318-50900

main55318-50050-C0iUSF40,41,45..RHD200909-201209

LT.GRAY,TRIM1#

sub55318-50901

main55318-50050-C1iUSF40,41,45..RHD200809-200909

BLACK,TRIM2#

sub55318-50901

main55318-50050-E0iUSF40,41,45..RHD200809-200909

IVORY,TRIM00

sub55318-50901

main55318-50050-E1iUSF4#..RHD200608-200809

MELLOW WHITE,TRIM01

sub55318-50901

main55318-50050-E2iUSF41,45..RHD200909-201209

ORCHID BROWN/IVORY,TRIM00,06

sub55318-50901

55328PIN, INSTRUMENT PANEL, NO.1

main55328-50160×2iUSF4#..GCC200608-200809

55328ASTAY, INSTRUMENT PANEL, NO.3

main55328-30160×5iUSF4#200608-200705

main55328-33120×5iUSF4#200706-200707

main55328-48110×5iUSF4#201010

main55328-50170×5iUSF4#200809-200909

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-50220iUSF4#..LHD200909

main55330-50230iUSF4#..RHD200608-200809

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-12060×2iUSF4#..GCC200608-200809

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-50080iUSF4#200909

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-50020×2iUSF4#200809-200909

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-50090iUSF4#..LHD200909

main55374-50100iUSF4#..RHD200608-200809

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-50100iUSF4#..LHD200608-200809

main55375-50110iUSF4#..RHD200608-200809

55394BBOLT, INSTRUMENT PANEL

main55394-50010×3iUSF4#200608-200809

55394CBOLT, INSTRUMENT PANEL

main55394-33041×2iUSF4#200710-200809

main55394-51011×2iUSF4#200608-200709

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-50907-C1iUSF4#..LHD200608-200612

LT.GRAY,TRIM1#

main55401-50907-C2iUSF4#..LHD200608-200612

BLACK,TRIM2#

main55401-50907-E2iUSF4#..LHD200608-200612

IVORY,TRIM00

main55401-50907-E3iUSF4#..LHD200608-200612

MELLOW WHITE,TRIM01

main55401-50908-C1iUSF4#..RHD200608-200612

LT.GRAY,TRIM1#

main55401-50908-C2iUSF4#..RHD200608-200612

BLACK,TRIM2#

main55401-50908-E2iUSF4#..RHD200608-200612

IVORY,TRIM00

main55401-50908-E3iUSF4#..RHD200608-200612

MELLOW WHITE,TRIM01

main55401-50909-C1iUSF4#..LHD200809-200909

BLACK,TRIM1#

sub55401-50914

main55401-50909-C2iUSF4#..LHD200809-200909

BLACK,TRIM2#

sub55401-50914

main55401-50909-E2iUSF4#..LHD200612-200809

ORCHID BROWN,TRIM00

sub55401-50914

main55401-50909-E3iUSF40,41..HTWC;USF4#..LHD..D4..EUR200909-201209

ORCHID BROWN/MELLOW WHITE,TRIM01,07

sub55401-50914

main55401-50909-E6iUSF40,41..D4..GCC201009-201209

ORCHID BROWN/IVORY,TRIM00

sub55401-50914

main55401-50910-C2iUSF4#..RHD200612-200809

BLACK,TRIM1#

main55401-50910-C3iUSF40,41,45..RHD200809-200909

BLACK,TRIM2#

main55401-50910-E2iUSF4#..RHD200612-200809

ORCHID BROWN,TRIM00

main55401-50910-E3iUSF40,41,45..RHD200909-201209

ORCHID BROWN/MELLOW WHITE,TRIM01,07

main55401-50910-E4iUSF40,41,45..RHD200909-201209

ORCHID BROWN/IVORY,TRIM00,06

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-50110-C0iUSF4#..LHD200909-201209

BLACK,TRIM1#,2#

sub55408-50150

main55408-50110-E0iUSF4#..LHD200809-200909

ORCHID BROWN,TRIM0#

sub55408-50150

main55408-50120-C0iUSF40,41,45..RHD200809-200909

BLACK,TRIM1#,2#

sub55408-50160

main55408-50120-E0iUSF40,41,45..RHD200809-200909

ORCHID BROWN,TRIM0#

sub55408-50160

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55409-50050-C0iUSF4#..LHD200909-201209

BLACK,TRIM1#,2#

sub55409-50100

main55409-50050-E0iUSF4#..LHD200809-200909

ORCHID BROWN,TRIM0#

sub55409-50100

main55409-50060-C0iUSF40,41,45..RHD200809-200909

BLACK,TRIM1#,2#

sub55409-50110

main55409-50060-E0iUSF40,41,45..RHD200909-201209

ORCHID BROWN,TRIM0#

sub55409-50110

55416ARETAINER, METER HOOD, NO.1

main55416-30140×2iUSF4#200809-200909

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-50100×5iUSF4#200909

55525COVER, SPEAKER HOLE, NO.1

main55510-50010-C0iUSF41..GCC;USF40,45,46;USF41..LHD..D4..EUR200909-201209

BLACK,TRIM1#,2#

main55510-50010-E0iUSF41..GCC;USF40,45,46;USF41..LHD..D4..EUR200909-201209

ORCHID BROWN,TRIM0#

main55510-50020-C0iUSF40..EUR;USF41..LHD..EUR200608-200809

AUDIO-AM-FM,EMV,MARK LEVINSON,BLACK,TRIM1#,2#

main55510-50020-E0iUSF41..HTWC..EUR200809-200909

AUDIO-AM-FM,DVD CHANGER,MARK LEVINSON,ORCHID BROWN,TRIM0#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-50110iUSF4#200809-200909

55982GARNISH, DEFROSTER NOZZLE, NO.2

main55982-50050iUSF4#..GCC200608-200809

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-50030-A0iUSF4#..LHD200608-200809

IVORY,TRIM00

main73900-50030-A1iUSF4#..LHD200809-200909

MELLOW WHITE,TRIM01

main73900-50030-B0iUSF4#..LHD200809-200909

LT.GRAY,TRIM1#

main73900-50030-C0iUSF4#..LHD200809-200909

BLACK,TRIM2#

main73900-50040-A0iUSF40,41,45..RHD200809-200909

IVORY,TRIM00

main73900-50040-A1iUSF40,41,45..RHD200809-200909

MELLOW WHITE,TRIM01

main73900-50040-B0iUSF40,41,45..RHD200809-200909

LT.GRAY,TRIM1#

main73900-50040-C0iUSF4#..RHD200608-200809

BLACK,TRIM2#

main73900-50050-A0iUSF40,41..D4..GCC201009-201209

MELLOW WHITE,TRIM07

sub73900-50051

main73900-50050-A1iUSF40,41..HTWC;USF4#..LHD..D4..EUR200909-201209

IVORY,TRIM00,06

sub73900-50051

main73900-50050-B0iUSF4#..LHD200909-201209

LT.GRAY,TRIM1#

sub73900-50051

main73900-50050-C0iUSF4#..LHD200909-201209

BLACK,TRIM2#

sub73900-50051

main73900-50060-A0iUSF40,41,45..RHD200909-201209

MELLOW WHITE,TRIM07

main73900-50060-A1iUSF41,45..RHD200909-201209

IVORY,TRIM00

main73900-50060-B0iUSF40,41,45..RHD200909-201209

LT.GRAY,TRIM1#

main73900-50060-C0iUSF40,41,45..RHD200909-201209

BLACK,TRIM2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-50090iUSF4#200608-200809

73990AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.2

main73990-50030-A0iUSF4#..LHD200608-200809

IVORY,TRIM00

sub73990-50031

main73990-50030-A1iUSF4#..LHD200608-200809

MELLOW WHITE,TRIM01

sub73990-50031

main73990-50030-A2iUSF40,41..HTWC;USF4#..LHD..D4..EUR200909-201209

IVORY,TRIM00,06

sub73990-50031

main73990-50030-B0iUSF4#..LHD200608-200809

LT.GRAY,TRIM1#

sub73990-50031

main73990-50030-C0iUSF4#..LHD200909-201209

BLACK,TRIM2#

sub73990-50031

main73990-50040-A0iUSF4#..RHD200608-200809

IVORY,TRIM00

main73990-50040-A1iUSF40,41,45..RHD200909-201209

MELLOW WHITE,TRIM07

main73990-50040-A2iUSF41,45..RHD200909-201209

IVORY,TRIM00

main73990-50040-B0iUSF40,41,45..RHD200909-201209

LT.GRAY,TRIM1#

main73990-50040-C0iUSF40,41,45..RHD200809-200909

BLACK,TRIM2#

82140WIRE ASSY, INSTRUMENT PANEL

main82140-47010iUSF4#200909

8715

9011906942

main90119-06942

9011906951

main90119-06951

9015950327

main90159-50327

9017906274

main90179-06274

9017906292

main90179-06292

9017906323

main90179-06323

9018305094

main90183-05094

9018306010

main90183-06010

9046713082A0

main90467-13082A0

9090119031

main90901-19031

91621J0814

main91621-J0814

9163160816

main91631-60816

91631J0612

main91631-J0612

9356855014

main93568-55014

42 parts on this diagram · 20 diagrams in section
