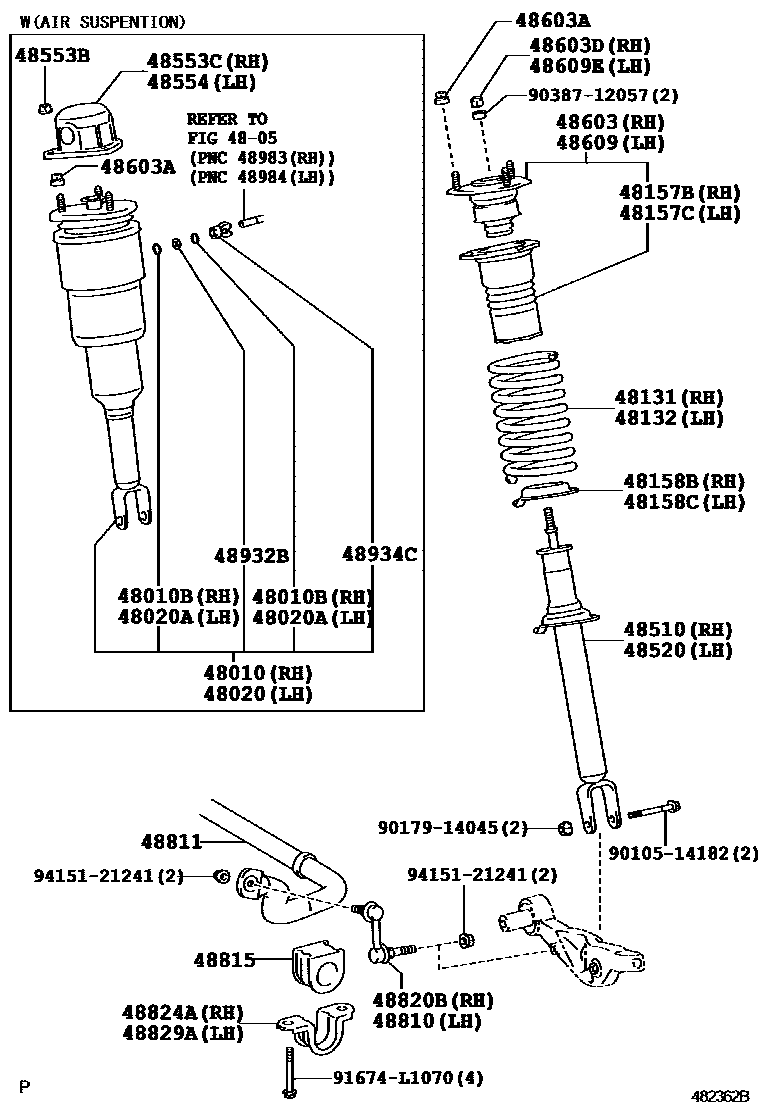

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

48010CYLINDER ASSY, PNEUMATIC, FRONT RH W/SHOCK ABSORBER

main48010-50150iUSF40..RHD200608-200708

SINGAPORE SPEC&SUSPENSION-COIL SPRING

sub48010-50152

main48010-50251iUSF40..RHD200708-200712

SINGAPORE SPEC&SUSPENSION-COIL SPRING

main48010-50253iUSF40..RHD200712-200809

SINGAPORE SPEC&SUSPENSION-COIL SPRING

sub48010-50254

main48010-50260iUSF45,46200809-200909

main48010-50261iUSF45,46201105-201201

main48010-50262iUSF45,46201202-201209

main48010-50300iUSF40..RHD200909-201105

AUSTRALIA SPEC&SUSPENSION-COIL SPRING

main48010-50301iUSF40..LHD..EUR201106-201209

AUSTRALIA SPEC&SUSPENSION-COIL SPRING

main48010-50240iUSF4#..HTWC..EUR200708-200712

CHINA(EXCEPT BEIJING) SPEC&SUSPENSION-SPORT AIR SUSPENTION

main48010-50242iUSF40,41..HTWC..EUR200809-200909

THAILAND SPEC

sub48010-50243

main48010-50270iUSF40..RHD200909-201105

NETHERLAND SPEC&SPORTS GRADE

main48010-50271iUSF40..RHD201106-201209

NEW ZEALAND SPEC&SUSPENSION-AIR SUS VERSION SPORT GRADE

main48010-50290supersedes 48010-50300iUSF40..RHD200909-201104

NETHERLAND SPEC

main48010-50291iUSF40..RHD201105-201209

NETHERLAND SPEC

main48010-50310iUSF40..RHD200909-201105

SUSPENSION-AIR SUS VERSION SPORT GRADE

main48010-50311iUSF40..RHD201106-201209

SUSPENSION-AIR SUS VERSION SPORT GRADE

48010BRING, O(FOR FRONT PNEUMATIC CYLINDER RH)

main90301-04011×2iUSF41..LHD..D4200608-200809

FORMOSA SPEC

48020CYLINDER ASSY, PNEUMATIC, FRONT LH W/SHOCK ABSORBER

main48020-50150iUSF40..RHD200608-200708

SINGAPORE SPEC&SUSPENSION-COIL SPRING

sub48020-50152

main48020-50251iUSF40..RHD200708-200712

SINGAPORE SPEC&SUSPENSION-COIL SPRING

main48020-50253iUSF40..RHD200712-200809

SINGAPORE SPEC&SUSPENSION-COIL SPRING

sub48020-50254

main48020-50260iUSF45,46200809-200909

main48020-50261iUSF45,46201105-201201

main48020-50262iUSF45,46201202-201209

main48020-50300iUSF40..RHD200909-201105

AUSTRALIA SPEC&SUSPENSION-COIL SPRING

main48020-50301iUSF40..LHD..EUR201106-201209

AUSTRALIA SPEC&SUSPENSION-COIL SPRING

main48020-50240iUSF4#..HTWC..EUR200708-200712

CHINA(EXCEPT BEIJING) SPEC&SUSPENSION-SPORT AIR SUSPENTION

main48020-50242iUSF40..RHD200712-200809

BEIJING SPEC&SUSPENSION-SPORT AIR SUSPENTION

sub48020-50243

main48020-50270iUSF40..RHD200909-201105

NETHERLAND SPEC&SPORTS GRADE

main48020-50271iUSF40..RHD201106-201209

NEW ZEALAND SPEC&SUSPENSION-AIR SUS VERSION SPORT GRADE

main48020-50290supersedes 48020-50300iUSF40..RHD200909-201104

NETHERLAND SPEC

main48020-50291iUSF40..RHD201105-201209

NETHERLAND SPEC

main48020-50310iUSF40..RHD200909-201105

SUSPENSION-AIR SUS VERSION SPORT GRADE

main48020-50311iUSF40..RHD201106-201209

SUSPENSION-AIR SUS VERSION SPORT GRADE

48020ARING, O(FOR FRONT PNEUMATIC CYLINDER LH)

main90301-04011×2iUSF41..LHD..D4200608-200809

FORMOSA SPEC

4805

48131SPRING, FRONT COIL, RH

main48131-50210iUSF40..RHD200608-200705

ISRAEL SPEC

main48131-50211iUSF40..RHD200705-200808

ISRAEL SPEC

main48131-50212iUSF40..RHD200809-200909

SINGAPORE SPEC&SUSPENSION-COIL SPRING

main48131-50220iUSF40..RHD200608-200705

NEW ZEALAND SPEC&SUSPENSION-COIL SPRING

main48131-50221iUSF40..RHD200705-200808

AUSTRALIA SPEC&SUSPENSION-COIL SPRING

main48131-50222iUSF41200809-200909

main48131-50240iUSF40..HTWC;USF40..D4..GCC200909-201209

main48131-50250iUSF41..RHD200909-201009

HONG KONG SPEC&SUSPENSION-SPORT AIR SUSPENTION

48132SPRING, FRONT COIL, LH

main48131-50210iUSF40..RHD200608-200705

ISRAEL SPEC

main48131-50211iUSF40..RHD200705-200808

ISRAEL SPEC

main48131-50212iUSF40..RHD200809-200909

SINGAPORE SPEC&SUSPENSION-COIL SPRING

main48131-50220iUSF40..RHD200608-200705

NEW ZEALAND SPEC&SUSPENSION-COIL SPRING

main48131-50221iUSF40..RHD200705-200808

AUSTRALIA SPEC&SUSPENSION-COIL SPRING

main48131-50222iUSF41200809-200909

main48131-50240iUSF40..HTWC;USF40..D4..GCC200909-201209

main48131-50250iUSF41..HTWC;USF41..D4..GCC200909-201209

CHINA(EXCEPT BEIJING) SPEC

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-50030iUSF40,41..HTWC;USF40,41..D4..GCC200909

SUSPENSION-COIL SPRING

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-50030iUSF41..RHD200909-201009

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-30020iUSF40,41..HTWC;USF40,41..D4..GCC200909

SUSPENSION-COIL SPRING

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-30020iUSF40,41..HTWC;USF40,41..D4..GCC200909

SUSPENSION-COIL SPRING

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80340iUSF40,41..HTWC;USF40,41..D4..GCC200909

MARK 48510-50170,SUSPENSION-SPORT AIR SUSPENTION

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-80340iUSF40,41..HTWC..EUR200909

MARK 48510-50170,SUSPENSION-SPORT AIR SUSPENTION

48553BNUT(FOR FRONT SHOCK ABSORBER CAP)

main90179-10174×6iUSF41..LHD..D4200608-200809

FORMOSA SPEC

48553CCAP, FRONT SHOCK ABSORBER, RH

main48553-30080iUSF41..LHD..D4200608-200711

FORMOSA SPEC

main48553-50120iUSF45,46200909

main48553-50130iUSF41..RHD201009

48554CAP, FRONT SHOCK ABSORBER, LH

main48553-30080iUSF41..LHD..D4200608-200711

FORMOSA SPEC

main48553-50120iUSF45,46200909

main48553-50130iUSF41..LHD..D4200712-200809

FORMOSA SPEC

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48680-50120iUSF40..D4200809-200909

SUSPENSION-COIL SPRING

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10014×6iUSF4#200608-200809

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90177-12002iUSF40..D4200809-200909

SUSPENSION-COIL SPRING

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48680-50120iUSF40,41..HTWC;USF40,41..D4..GCC200909

SUSPENSION-COIL SPRING

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90177-12002iUSF40..RHD200608-200809

ISRAEL SPEC

48810LINK ASSY, FRONT STABILIZER, LH

main48810-50020iUSF4#200809-200909

48811BAR, STABILIZER, FRONT

main48811-50120iUSF40,41200909

main48811-50150iUSF45,46200809-200909

main48811-50230iUSF40..RHD200909

SPORTS GRADE&SUSPENSION-AIR SUS VERSION SPORT GRADE

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-50200×2iUSF4#200608-200809

main48815-50220×2iUSF45,46200909

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-50030iUSF4#200909

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-50040iUSF40,41200809-200909

main48824-50060iUSF45,46200909

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-50050iUSF40,41200909

main48829-50010iUSF45,46200909

48932BPLATE, HEIGHT CONTROL TUBE

main48932-30010×2iUSF40..RHD200909

AUSTRALIA SPEC&SUSPENSION-COIL SPRING

48934CCONNECTOR, HEIGHT CONTROL TUBE

main48934-30010×2iUSF41..LHD..D4200608-200809

FORMOSA SPEC

9010514182

main90105-14182

9017914045

main90179-14045

9038712057

main90387-12057

91674L1070

main91674-L1070

9415121241

main94151-21241

34 parts on this diagram · 2 diagrams in section
