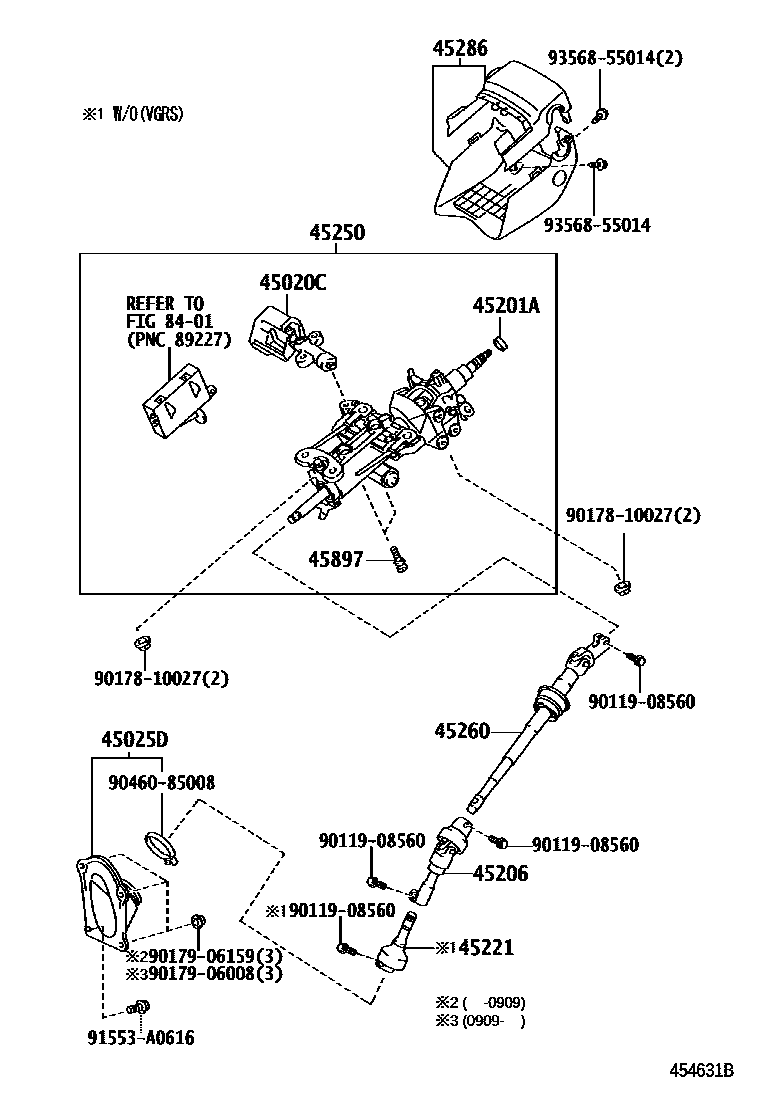

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1 0004 1

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-30A60iUSF4#201106-201209

main45020-50130iUSF4#200608-201106

sub45020-30A60

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-50070iUSF40,41..RHD200608-200909

sub45025-50110

main45025-50080iUSF40,41..LHD200608-200909

sub45025-50120

main45025-50090iUSF45..RHD200809-200909

main45025-50100iUSF45,46..LHD200809-200909

45201ABEARING(FOR STEERING MAIN SHAFT)

main90363-25077iUSF4#200608-200909

45206YOKE SUB-ASSY, STEERING SLIDING W/SHAFT

main45206-50040iUSF4#200608-200809

sub45206-50050

main45206-50050iUSF40,41200809-200909

45221SHAFT, STEERING INTERMEDIATE

main45297-50030iUSF41;USF40..HTWC200608-200909

SUSPENSION-COIL SPRING

sub45297-50031

main45297-50030iUSF41..RHD200909-201009

sub45297-50031

45250COLUMN ASSY, STEERING

main45250-50220iUSF4#..RHD200608-200909

main45250-50230iUSF4#..LHD200608-200909

main45250-50240iUSF40,41,45..RHD200909-201011

sub45810-50050

sub45020-50130

sub45892-50010

sub45897-12020

sub89227-50130

sub93219-15010

sub93381-15010

main45250-50250iUSF4#..LHD200909-201011

sub45810-50050

sub45020-50130

sub45892-50020

sub45897-12020

sub89227-50130

sub93219-15010

sub93381-15010

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-50080iUSF40,41200608-200909

main45260-50090iUSF45..RHD200809-200909

sub45260-50091

main45260-50100iUSF45,46..LHD200809-200909

sub45260-50101

45286COVER, STEERING COLUMN

main45286-50973iUSF40,41..D4..GCC201009

main45286-50973-C0iUSF4#200608-200909

BLACK,TRIM1#,2#

main45286-50973-E2iUSF4#200608-200909

ORCHID BROWN,TRIM00,01

main45286-50973-E2iUSF4#..D4..EUR;USF40,41..HTWC200909

ORCHID BROWN,TRIM0#

45897BOLT, STEERING LOCK SET

main45897-12020iUSF4#200608-200909

8401

9011908560

main90119-08560

9017810027

main90178-10027

9017906008

main90179-06008

9017906159

main90179-06159

9046085008

main90460-85008

91553A0616

main91553-A0616

9356855014

main93568-55014

17 parts on this diagram · 4 diagrams in section
