SHIFT LEVER & RETAINER
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK & BROWN,TRIM22,24,TYPE A:REFER ILLUST.
sub33504-30352
BLACK & BROWN,TRIM20,TYPE A:REFER ILLUST.
sub33504-30352
ORCHID BROWN,TRIM01,TYPE A:REFER ILLUST.
BLACK,TRIM2#,TYPE C:REFER ILLUST.
ORCHID BROWN,TRIM00,TYPE C:REFER ILLUST.
ORCHID BROWN,TRIM0#,TYPE C:REFER ILLUST.
BLACK,TRIM1#,TYPE D:REFER ILLUST.
BLACK & BROWN,TRIM2#,TYPE B:REFER ILLUST.
sub33504-30352
33525GRING, SHIFT LEVER
33550FLOOR SHIFT ASSY, TRANSMISSION
33563BUTTON, SHIFT LOCK RELEASE
33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)
33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33877LABEL, SHIFT LOCK INFORMATION, NO.1
35569CGROMMET (FOR TRANSMISSION CONTROL ROD)
35569GBUSH (FOR TRANSMISSION CONTROL ROD)
35906WIRE SUB-ASSY, INDICATOR LAMP
35906AHOUSING, CONNECTOR MALE (FOR INDICATOR LAMP WIRE)
35921PLATE, CONTROL POSITION INDICATOR
SUSPENSION-AIR SUS VERSION SPORT GRADE
FORMOSA SPEC&SPORTS GRADE
SPORTS GRADE
35952LENS, POSITION INDICATOR
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35978INDICATOR, SHIFT POSITION
SUSPENSION-AIR SUS VERSION SPORT GRADE
FORMOSA SPEC&SPORTS GRADE
SPORTS GRADE
9011906775
main90119-06775
9015950138
main90159-50138
9017908233
main90179-08233
9046814033
main90468-14033
9354055012
main93540-55012

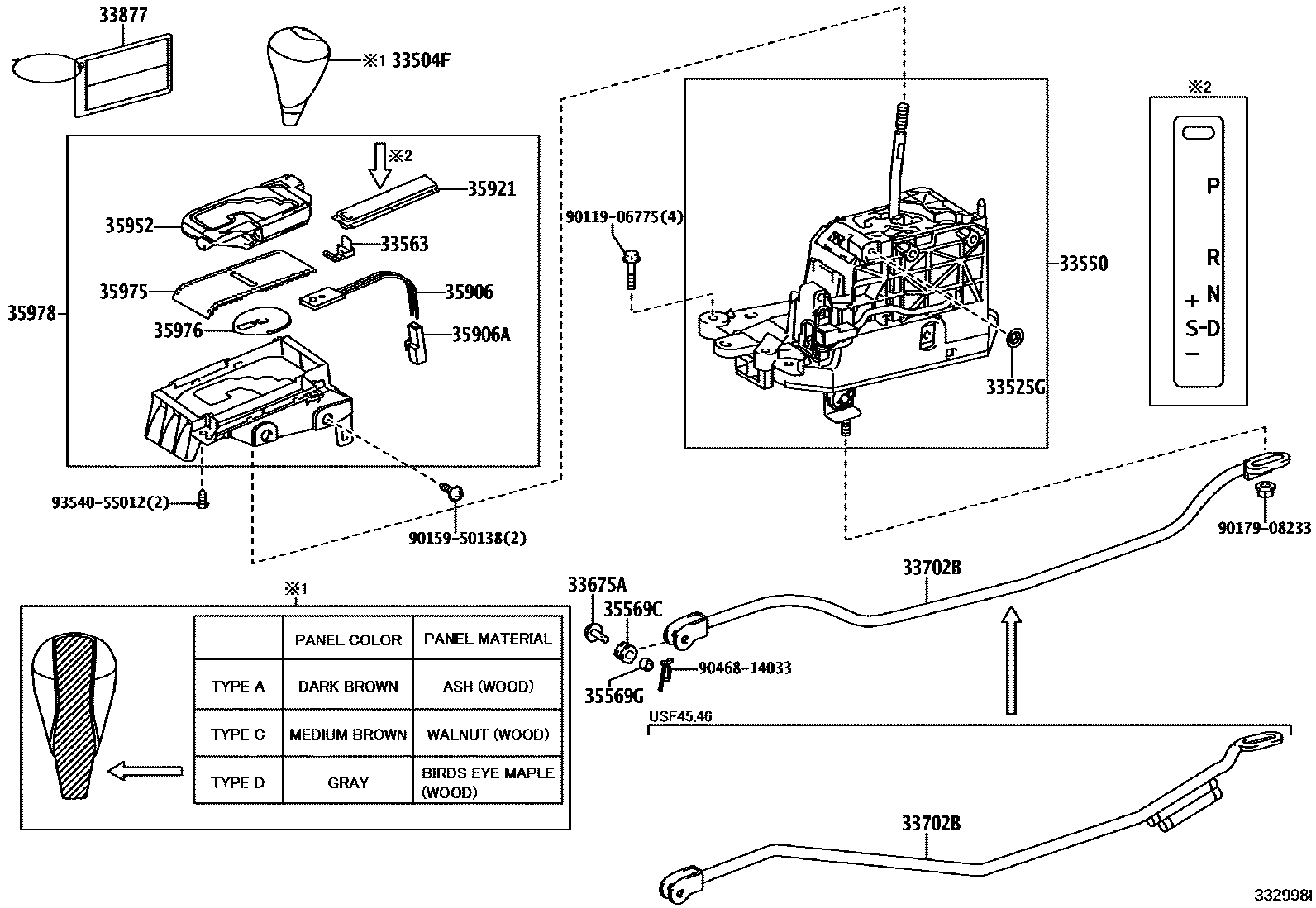

21 parts on this diagram · 4 diagrams in section
