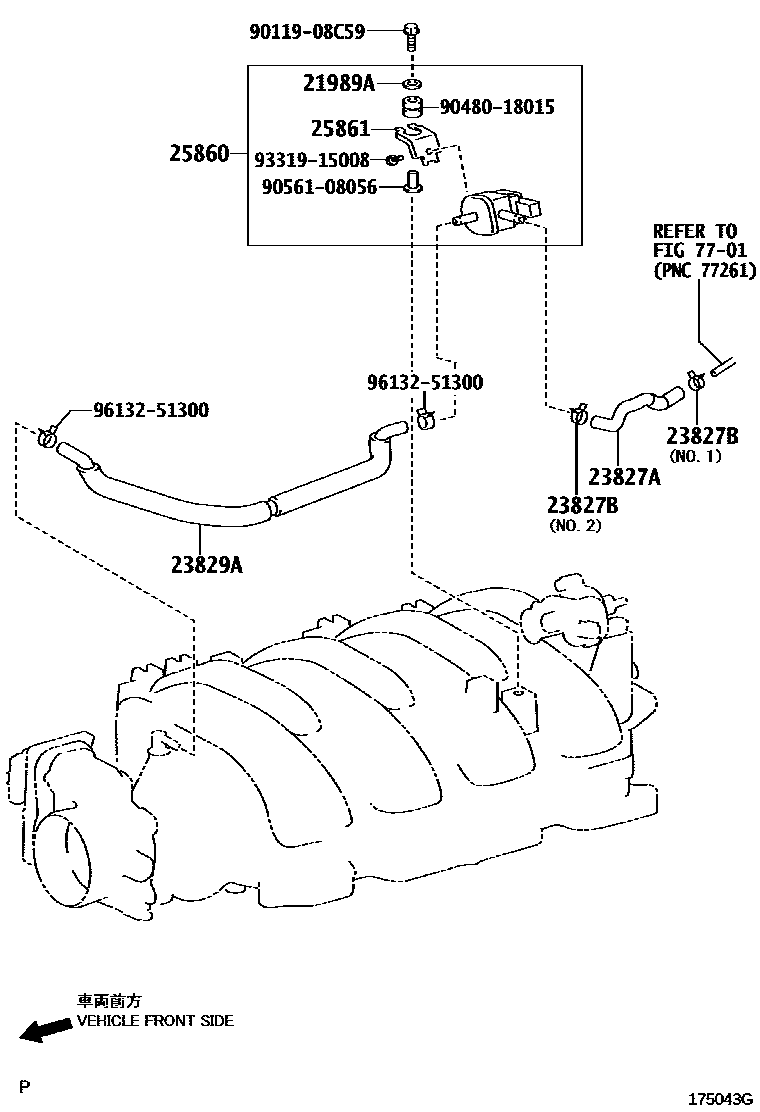

VACUUM PIPING

21989AINSULATOR, PLATE

main21989-38010i1UR#..USF4#200608-200909

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-38010i1UR#..USF40,41200608-200909

main23827-38050i1URFSE..USF45,46200809-200909

23827BCLIP(FOR FUEL VAPOR FEED HOSE, NO.2)

main90467-15022i1UR#..USF4#200608-200909

NO.1

main96132-51300i1UR#..USF4#200608-200909

NO.2

23829AHOSE, FUEL VAPOR FEED

main23829-38030i1UR#..USF4#200608-200909

sub23829-38031

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-38030i1UR#..USF4#200608-200909

25861BRACKET, VACUUM SWITCHING VALVE

main25861-38010i1UR#..USF4#200608-200909

7701

9011908C59

main90119-08C59

9048018015

main90480-18015

9056108056

main90561-08056

9331915008

main93319-15008

9613251300

main96132-51300

12 parts on this diagram · 1 diagram in section
