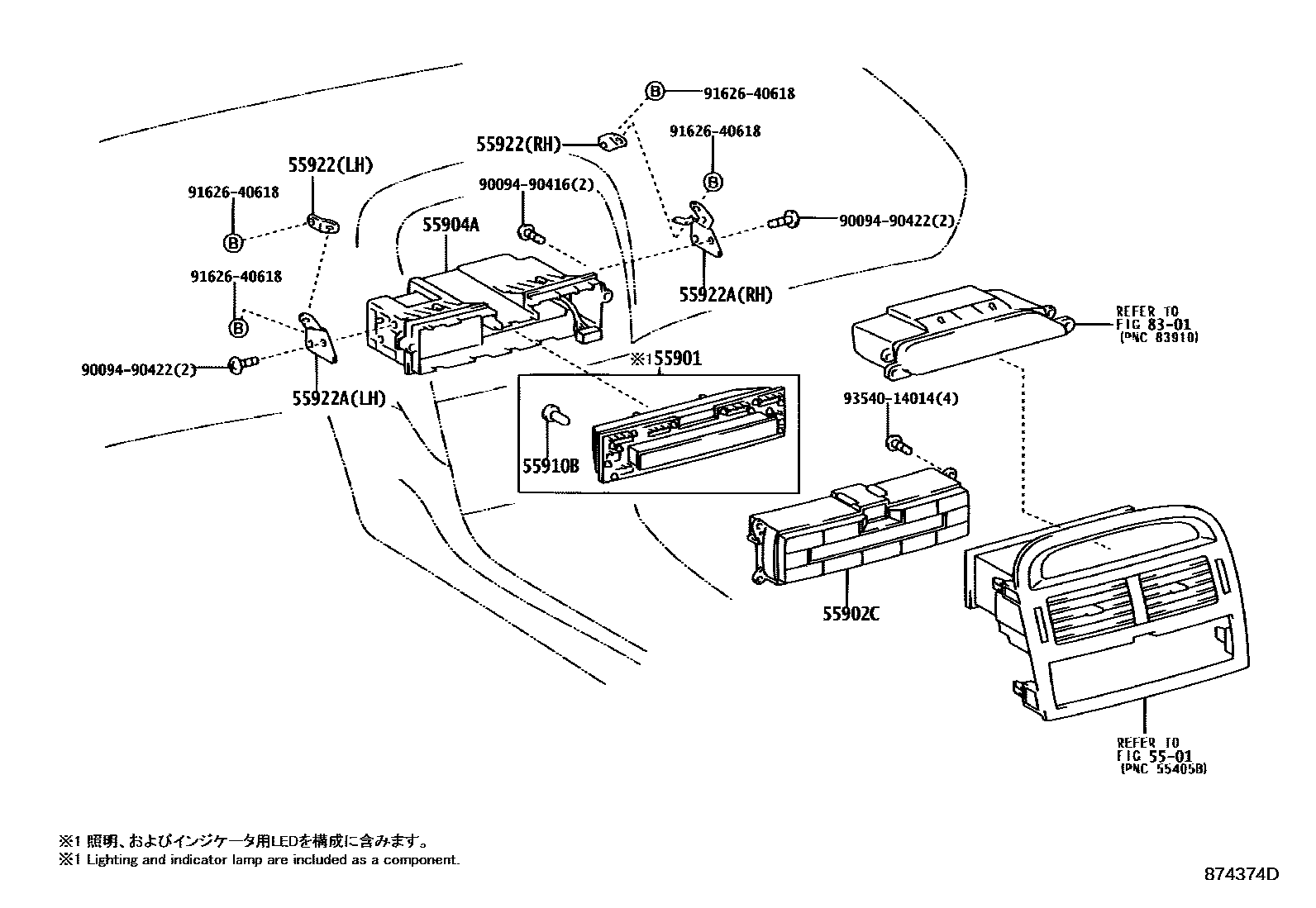

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL PANEL 0002 1FRONT AIR DUCT 0003 1FRONT AIR DUCT 0004 1REAR AIR DUCT 0005 1SENSOR 0006 1SENSOR

5501

55901BASE SUB-ASSY, HEATER CONTROL

main55901-50010iUCF30..LHD..EUR200008-200307

main55901-50020iUCF30..LHD..EUR200008-200107

W(AIR PURIFIER)

main55901-50030iUCF30..LHD..EUR200008-200307

W(REAR AIR CONDITIONER)

main55901-50040iUCF30..GCC200008-200307

main55901-50050iUCF30..RHD200008-200307

main55901-50060iUCF30..RHD200008-200107

W(AIR PURIFIER)

main55901-50070iUCF30..RHD200008-200307

W(REAR AIR CONDITIONER)

55902CPANEL SUB-ASSY, AIR CONDITIONER

main55902-50220iUCF30..LHD..EUR200008-200307

main55902-50230iUCF30..LHD..EUR200008-200107

W(AIR PURIFIER)

main55902-50240iUCF30..LHD..EUR200008-200307

W(REAR AIR CONDITIONER)

main55902-50250iUCF30..GCC200008-200307

main55902-50260iUCF30..RHD200008-200307

main55902-50270iUCF30..RHD200008-200107

W(AIR PURIFIER)

main55902-50280iUCF30..RHD200008-200307

W(REAR AIR CONDITIONER)

55904AHOUSING SUB-ASSY, HEATER CONTROL

main55904-50010iUCF30200008-200307

main55904-50020iUCF30..ARL,EUR200307

55910BBULB, HEATER CONTROL

main90010-03046iUCF30200008-200307

55922BRACKET, HEATER CONTROL BASE

main55922-50030iUCF30..LHD200008-200307

RH

main55922-50040iUCF30..LHD..EUR200008-200307

LH

main55922-50070iUCF30..RHD200008-200307

RH

main55922-50080iUCF30..RHD200008-200307

LH

55922ABRACKET, HEATER CONTROL BASE, NO.1

main55922-50010iUCF30..LHD200008-200307

RH

main55922-50020iUCF30..LHD200008-200307

LH

main55922-50050iUCF30..RHD200008-200307

RH

main55922-50060iUCF30..RHD200008-200307

LH

8301

9009490416

main90094-90416

9009490422

main90094-90422

9162640618

main91626-40618

9354014014

main93540-14014

12 parts on this diagram · 6 diagrams in section
