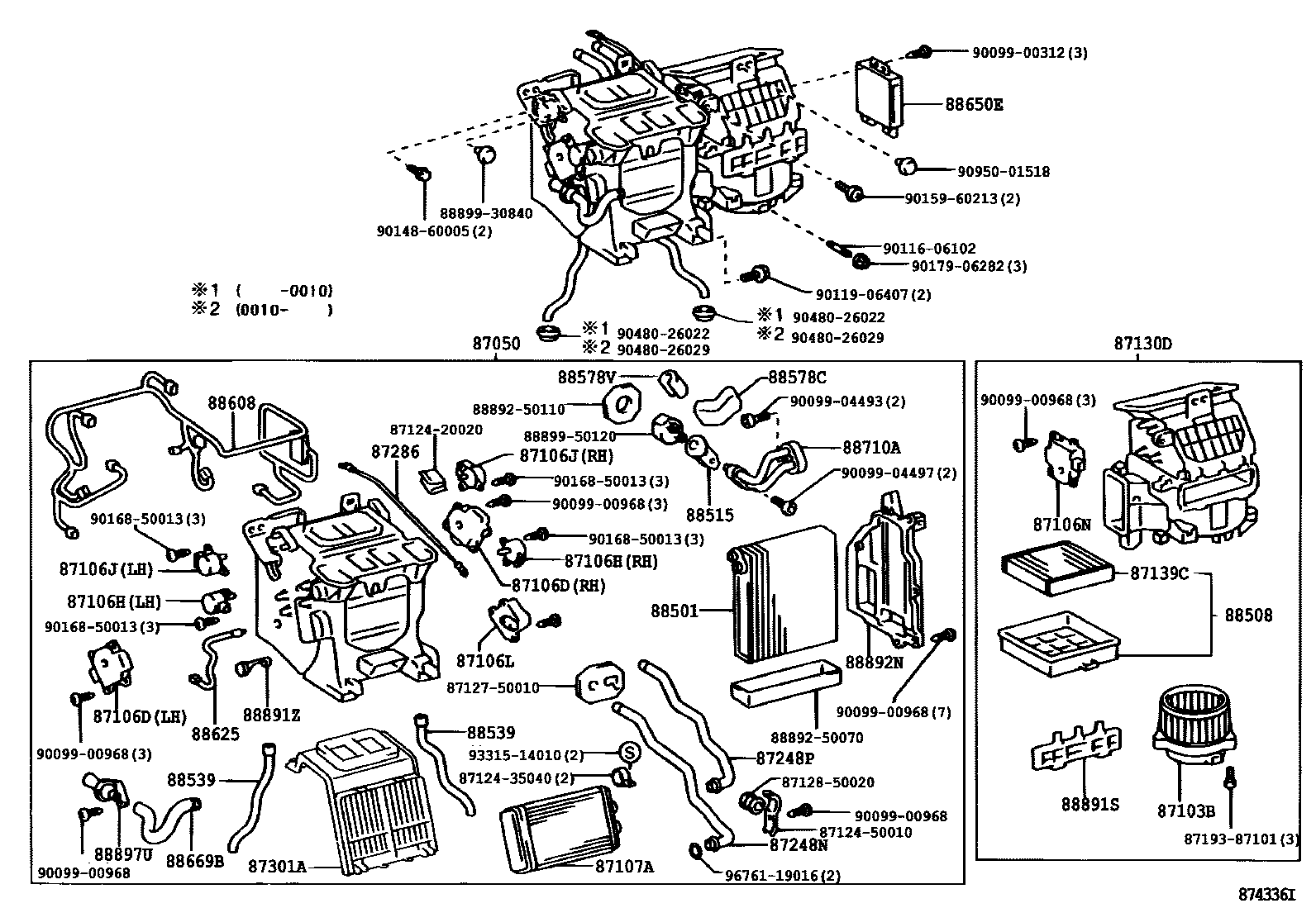

HEATING & AIR CONDITIONING - COOLER UNIT
87050RADIATOR ASSY, AIR CONDITIONER
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87106DSERVO SUB-ASSY, DAMPER, NO.1
RH
LH
LH
RH
87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)
LH
RH
87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)
87107AUNIT SUB-ASSY, HEATER RADIATOR
87130DBLOWER ASSY
87139CFILTER, CLEAN AIR
87301ACASE SUB-ASSY, HEATER
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88508FILTER SUB-ASSY, CLEAN AIR
88515VALVE, COOLER EXPANSION
88539HOSE, COOLER UNIT DRAIN, NO.1
88578CPACKING, COOLING UNIT, NO.2
88578VPACKING, COOLING UNIT, NO.3
88608HARNESS SUB-ASSY, WIRING AIR CONDITIONER
88625THERMISTOR, COOLER, NO.1
88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1
88669BHOSE, COOLER AIR
88710ATUBE ASSY, AIR CONDITIONER
88891SCOVER, COOLER, NO.1
88891ZBRACKET, COOLER THERMISTOR
88892NCOVER, COOLER, NO.2
8712420020CLAMP, HEATER
main87124-20020
8712435040CLAMP, HEATER
main87124-35040
8712450010CLAMP, HEATER
main87124-50010
8712750010PACKING, HEATER AIR DAMPER
main87127-50010
8712850020GROMMET, HEATER
main87128-50020
8719387101
main87193-87101
8889250070BRACKET, COOLER EVAPORATOR MOUNTING
main88892-50070
8889250110BRACKET, COOLER EVAPORATOR MOUNTING
main88892-50110
8889930840COVER, EVAPORATOR
main88899-30840
8889950120COVER, EVAPORATOR
main88899-50120
9009900312
main90099-00312
9009900968
main90099-00968
9009904493
main90099-04493
9009904497
main90099-04497
9011606102
main90116-06102
9011906407
main90119-06407
9014860005
main90148-60005
9015960213
main90159-60213
9016850013
main90168-50013
9017906282
main90179-06282
9048026022
main90480-26022
9048026029
main90480-26029
9095001518
main90950-01518
9331514010
main93315-14010
9676119016
main96761-19016
