SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM 0004 1COWL 0005 1COWL 0006 1COWL 0007 1COWL 0008 1INSTRUMENT PANEL 0009 1INSTRUMENT PANEL 0010 1IGNITION & COMBINATION SWITCH0011 1SEAT & REAR ARMREST 0012 1DOOR,ROOF,FLOOR & LUGGAGE

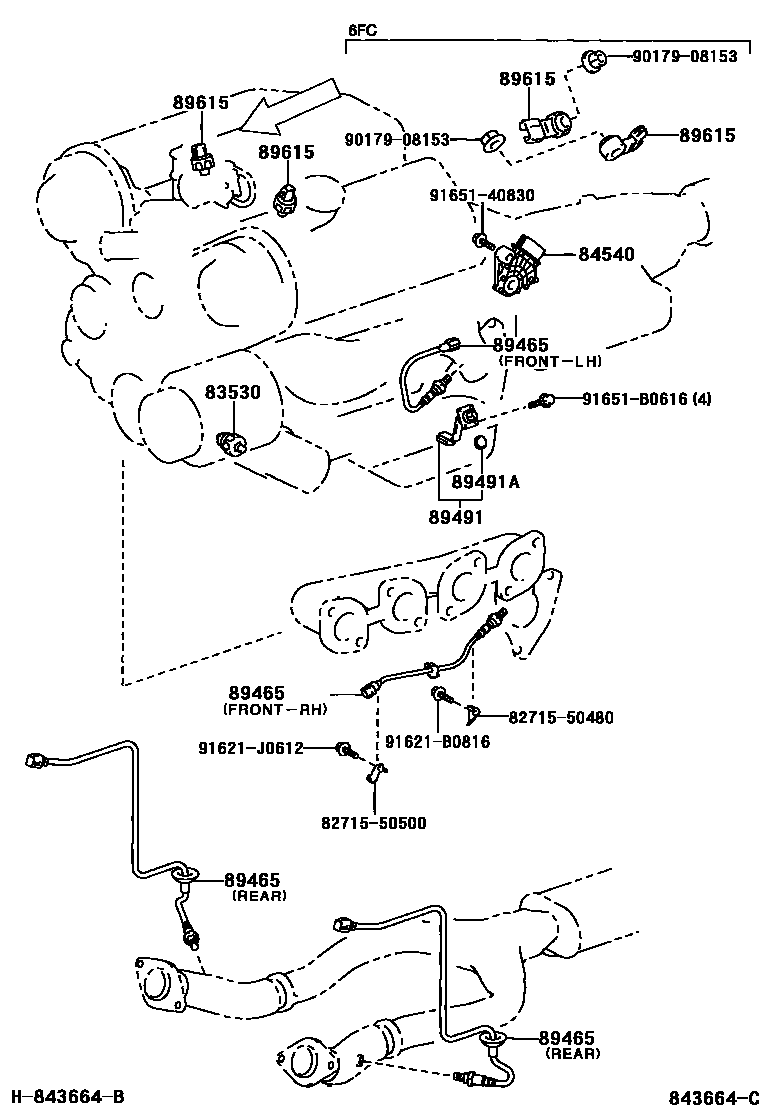

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iUCF30200008-200608

84540SWITCH ASSY, NEUTRAL START

main84540-50020iUCF30200008-200608

89465SENSOR, OXYGEN

main89465-50120iUCF30200008-200307

FRONT LH

main89465-50130iUCF30..ARL,EUR200008-200307

FRONT RH

main89465-50140iUCF30..ARL,EUR200008-200307

REAR

main89465-50160iUCF30200307

REAR

89491SENSOR, ENGINE OIL LEVEL

main89491-50030iUCF30200008-200307

89491AGASKET, ENGINE OIL LEVEL SENSOR

main90430-27001iUCF30200008-200307

89615SENSOR, KNOCK CONTROL

main89615-20090iUCF30200307

main89615-30080iUCF30200008-200307

8271550480BRACKET,WIRING HARNESS CLAMP

main82715-50480

8271550500BRACKET,WIRING HARNESS CLAMP

main82715-50500

9017908153

main90179-08153

91621B0816

main91621-B0816

91621J0612

main91621-J0612

9165140830

main91651-40830

91651B0616

main91651-B0616

13 parts on this diagram · 12 diagrams in section
