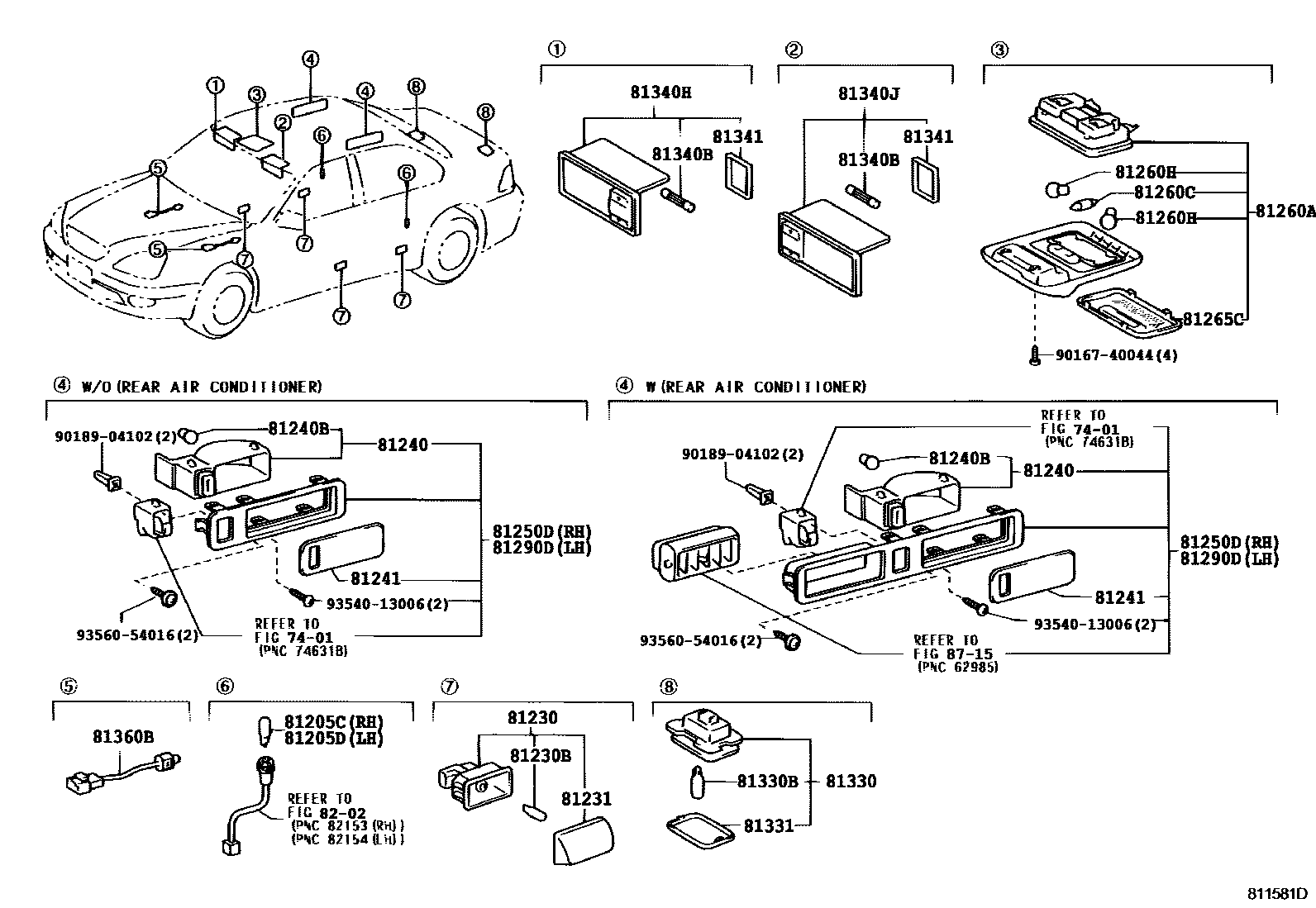

INTERIOR LAMP
7401
81205CBULB, ASH RECEPTACLE LAMP, REAR RH
81205DBULB, ASH RECEPTACLE LAMP, REAR LH
81230LAMP ASSY, COURTESY
81230BBULB(FOR COURTESY LAMP)
12V 3.8W
81231LENS, COURTESY LAMP
81240LAMP ASSY, ROOM, NO.1
IVORY,TRIM04,RH
ECRU,TRIM03,RH
MD.CHARCOAL,TRIM1#,2#,RH
IVORY,TRIM04,LH
ECRU,TRIM03,LH
MD.CHARCOAL,TRIM1#,2#,LH
ECRU,TRIM00,RH
NEW IVORY,TRIM07,RH
NEW GRAY,TRIM1#,21,24,RH
ECRU,TRIM00,LH
NEW IVORY,TRIM07,LH
NEW GRAY,TRIM1#,21,24,LH
81240BBULB, ROOM LAMP, NO.1
12V 8W
81241LENS, ROOM LAMP, NO.1
RH
LH
81250DLAMP ASSY, REAR ROOM, RH
IVORY,TRIM04
ECRU,TRIM03
MD.CHARCOAL,TRIM1#,2#
W(REAR AIR CONDITIONER),IVORY,TRIM04
W(REAR AIR CONDITIONER),ECRU,TRIM03
W(REAR AIR CONDITIONER),MD.CHARCOAL,TRIM1#,2#
W(REAR AIR CONDITIONER),ECRU,TRIM00
W(REAR AIR CONDITIONER),NEW IVORY,TRIM07
W(REAR AIR CONDITIONER),NEW GRAY,TRIM1#,21,24
81260ALAMP ASSY, MAP
W(MICROPHONE),ECRU,TRIM00
W(MICROPHONE),NEW IVORY,TRIM07
W(MICROPHONE),NEW GRAY,TRIM1#,21,24
W(MICROPHONE & MOON ROOF),NEW GRAY,TRIM1#,21,24
sub81260-50330
W(MICROPHONE & MOON ROOF),ECRU,TRIM00
W(MICROPHONE & MOON ROOF),NEW IVORY,TRIM07
W(MICROPHONE & MOON ROOF),NEW GRAY,TRIM1#,21,24
81260CBULB(FOR MAP LAMP)
12V 8W
81260HBULB(FOR MAP LAMP), NO.2
12V 8W
81265CLENS, MAP LAMP, NO.1
W(MOON ROOF)
81290DLAMP ASSY, REAR ROOM, LH
IVORY,TRIM04
ECRU,TRIM03
MD.CHARCOAL,TRIM1#,2#
W(REAR AIR CONDITIONER),IVORY,TRIM04
W(REAR AIR CONDITIONER),ECRU,TRIM03
W(REAR AIR CONDITIONER),MD.CHARCOAL,TRIM1#,2#
W(REAR AIR CONDITIONER),ECRU,TRIM00
W(REAR AIR CONDITIONER),NEW IVORY,TRIM07
W(REAR AIR CONDITIONER),NEW GRAY,TRIM1#,21,24
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 3.8W
81331LENS, LUGGAGE COMPARTMENT LAMP
81340BBULB (FOR VANITY LAMP)
12V 3W,FRONT
12V 3W,REAR
81340HLAMP ASSY, VANITY, RH
ECSAINE TYPE,NEW GRAY,TRIM2#,REAR
NEW IVORY,TRIM07,REAR
ECRU,TRIM00,REAR
NEW GRAY,TRIM1#,21,24,REAR
TAIWAN SPEC,IVORY,TRIM04
TAIWAN SPEC,ECRU,TRIM00,FRONT
TAIWAN SPEC,ECRU,TRIM03
TAIWAN SPEC,NEW IVORY,TRIM07,FRONT
TAIWAN SPEC,MD.CHARCOAL,TRIM1#,2#
TAIWAN SPEC,NEW GRAY,TRIM1#,21,24,FRONT
IVORY,TRIM04
ECRU,TRIM00,FRONT
ECRU,TRIM03
NEW IVORY,TRIM07,FRONT
MEDIUM CHARCOAL,TRIM1#,2#
NEW GRAY,TRIM1#,21,24,FRONT
CHARCOAL,TRIM1#,20,29
NEW GRAY,TRIM2#,FRONT
81340JLAMP ASSY, VANITY, LH
TAIWAN SPEC,IVORY,TRIM04
TAIWAN SPEC,ECRU,TRIM00,FRONT
TAIWAN SPEC,ECRU,TRIM03
TAIWAN SPEC,NEW IVORY,TRIM07,FRONT
TAIWAN SPEC,MD.CHARCOAL,TRIM1#,2#
TAIWAN SPEC,NEW GRAY,TRIM1#,21,24,FRONT
IVORY,TRIM04
ECRU,TRIM03
ECRU,TRIM00,FRONT
NEW IVORY,TRIM07,FRONT
MEDIUM CHARCOAL,TRIM1#,2#
NEW GRAY,TRIM1#,21,24,FRONT
CHARCOAL,TRIM1#,20,29
NEW GRAY,TRIM2#,FRONT
ECSAINE TYPE,NEW GRAY,TRIM2#,REAR
NEW IVORY,TRIM07,REAR
ECRU,TRIM00,REAR
NEW GRAY,TRIM1#,21,24,REAR
81360BBULB, STEP OR SPOT LAMP
12V 1.8W
8202
8715
9016740044
main90167-40044
9018904102
main90189-04102
9354013006
main93540-13006
9356054016
main93560-54016
29 parts on this diagram · 3 diagrams in section
