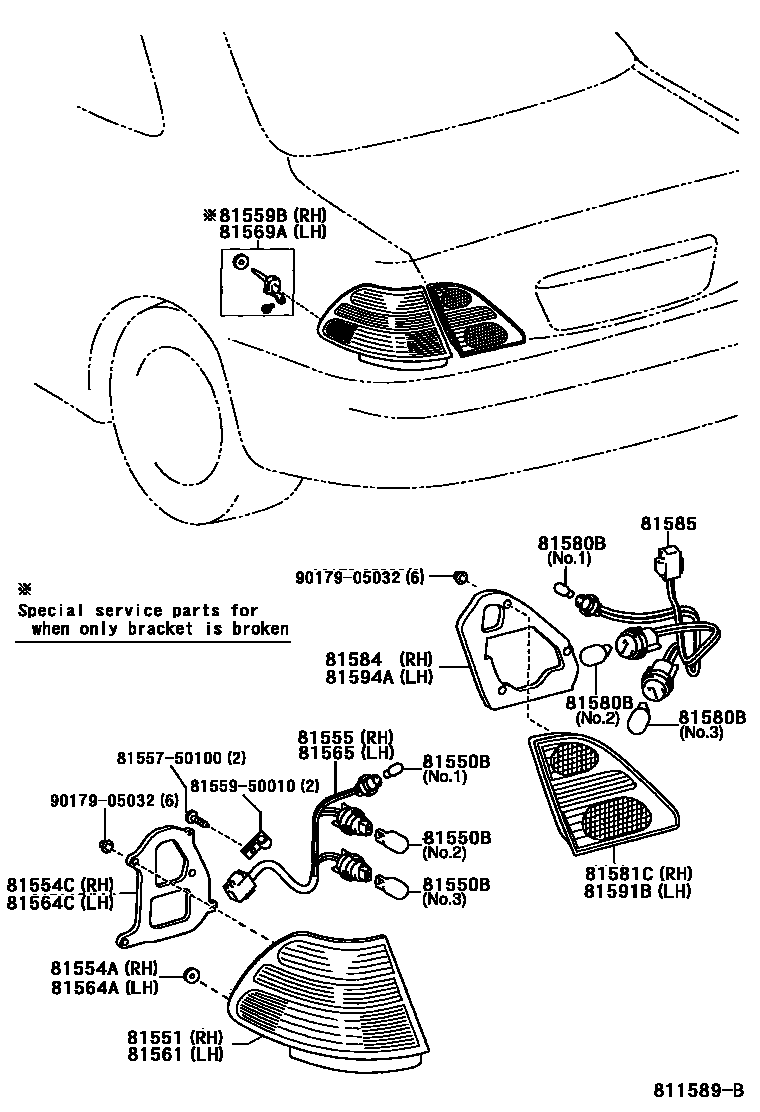

REAR COMBINATION LAMP

0001 1 0002 1 0003 1

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-13050iUCF30¥220200008-200307

12V 21W,NO.2

sub90981-13043¥220

main90981-13051iUCF30¥230200008-200307

12V 21/5W,NO.3

sub90981-11048¥230

main90981-15011iUCF30¥300200307

12V 21W,AMBER

main99132-12050iUCF30¥110200008-200307

12V 5W,NO.1

81551LENS, REAR COMBINATION LAMP, RH

main81551-50110iUCF30..GCC¥34,200200008-200307

main81551-50120iUCF30..ARL,EUR¥34,200200008-200307

main81551-50150iUCF30¥42,900200307

81554AGASKET, REAR COMBINATION LAMP BODY, NO.1 RH

main81554-32150iUCF30¥300200008-200608

81554CPACKING, REAR COMBINATION LAMP BODY, RH

main81554-50100iUCF30¥1,030200008-200307

main81554-50150iUCF30¥1,030200307

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-50110iUCF30..GCC¥2,470200008-200307

main81555-50120iUCF30..ARL,EUR¥2,470200008-200307

81559BBRACKET, REAR COMBINATION LAMP, RH

main81559-50020iUCF30¥120200008-200307

81561LENS, REAR COMBINATION LAMP, LH

main81561-50110iUCF30..GCC¥34,200200008-200307

main81561-50120iUCF30..ARL,EUR¥34,200200008-200307

main81561-50150iUCF30¥42,900200307

81564AGASKET, REAR COMBINATION LAMP BODY, NO.1 LH

main81554-32150iUCF30¥300200008-200608

81564CPACKING, REAR COMBINATION LAMP BODY, LH

main81554-50100iUCF30¥1,030200008-200307

main81564-50150iUCF30¥1,030200307

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-50110iUCF30..GCC¥2,470200008-200307

main81555-50120iUCF30..ARL,EUR¥2,470200008-200307

81569ABRACKET, REAR COMBINATION LAMP, LH

main81559-50020iUCF30¥120200008-200307

81580BBULB (FOR REAR LAMP)

main90981-11059iUCF30..GCC¥200200307

12V 16W

main90981-11059iUCF30..GCC¥200200307

12V 16W,NO.1

main90981-13043iUCF30..ARL,EUR¥220200307

12V 21W,NO.2

main90981-13050iUCF30¥220200008-200307

12V 21W,NO.2

sub90981-13043¥220

main90981-13051iUCF30¥230200008-200307

12V 21/5W,NO.3

sub90981-11048¥230

main99132-12050iUCF30¥110200008-200307

12V 5W,NO.1

81581CLENS AND BODY, REAR LAMP, RH

main81581-50110iUCF30..GCC¥18,700200008-200307

main81581-50120iUCF30..ARL,EUR¥18,700200008-200307

main81581-50130iUCF30..GCC¥22,500200307

main81581-50140iUCF30..ARL,EUR¥18,400200307

81584PACKING, REAR LAMP RH

main81584-50110iUCF30..ARL,GCC;UCF30..LHD..EUR¥1,090200008-200307

main81584-50130iUCF30¥1,030200307

81585SOCKET & WIRE, REAR LAMP

main81278-20610iUCF30¥940200307

NO.1

main81585-50110iUCF30..GCC¥2,470200008-200307

main81585-50120iUCF30..ARL,EUR¥2,470200008-200307

main81585-50130iUCF30..GCC¥1,600200307

NO.2

main81585-50140iUCF30..ARL,EUR¥1,600200307

NO.2

81591BLENS AND BODY, REAR LAMP, LH

main81591-50110iUCF30..GCC¥18,700200008-200307

main81591-50120iUCF30..ARL,EUR¥18,700200008-200307

main81591-50130iUCF30..GCC¥22,500200307

main81591-50140iUCF30..ARL,EUR¥18,400200307

81594AGASKET, REAR LAMP LH

main81584-50110iUCF30..ARL,GCC;UCF30..LHD..EUR¥1,090200008-200307

main81594-50130iUCF30¥1,030200307

8155750100REFLECTOR, REAR COMBINATION LAMP REFLEX

main81557-50100¥180

8155950010MOULDING, REAR COMBINATION LAMP, RH

main81559-50010¥120

9017905032

main90179-05032¥120

20 parts on this diagram · 3 diagrams in section
