HEADLAMP

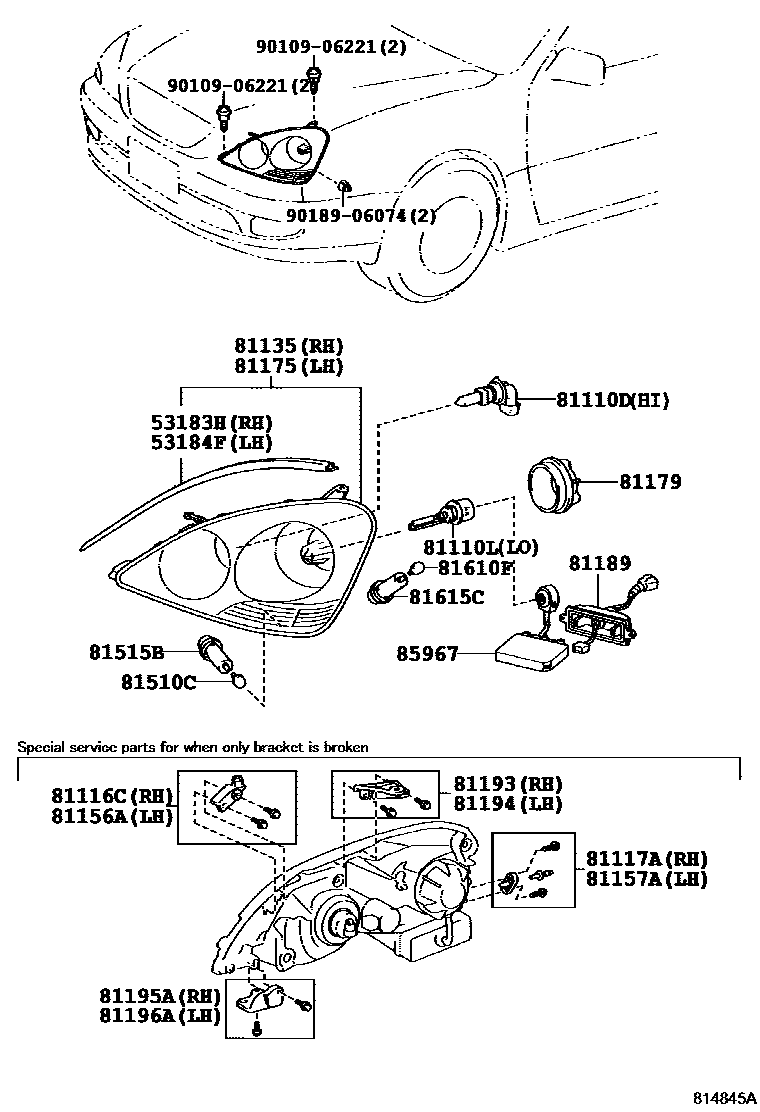

Parts diagram
53183HSEAL, HEADLAMP COVER, RH
main53183-50040i200008-200307
main53183-50050i200307
53184FSEAL, HEADLAMP COVER, LH
main53184-50040i200008-200307
main53184-50050i200307
81110DBULB(FOR HEADLAMP, NO.2)
main90080-81041×2i200008-200307
12V 65W
sub90981-13046
81110LBULB, DISCHARGE HEADLAMP
main90981-20008×2i200008-200307
85V 35W
main90981-20010×2i200307
86V 35W
81116CBRACKET, HEADLAMP, RH
main81116-50010i200008-200307
81117ABRACKET, HEADLAMP, RH
main81117-50010i200008-200307
81135UNIT ASSY, HEADLAMP, RH
main81130-50230i200008-200107
main81130-50231i200108-200307
main81130-50240i200008-200107
main81130-50241i200108-200307
main81130-50260i200307-200311
main81130-50261i200312
main81130-50270i200307-200311
main81130-50271i200312
81156ABRACKET, HEADLAMP, LH
main81156-50010i200008-200307
81157ABRACKET, HEADLAMP, LH
main81117-50010i200008-200307
81175UNIT ASSY, HEADLAMP, LH
main81170-50230i200008-200107
main81170-50231i200108-200307
main81170-50240i200008-200107
main81170-50241i200108-200307
main81170-50260i200307-200311
main81170-50261i200312
main81170-50270i200307-200311
main81170-50271i200312
81179COVER, HEADLAMP SOCKET
main81179-50180×2i200008-200307
main81179-50250×2i200307
81189COVER, HEADLAMP
main81139-50220i200008-200307
RH
main81179-50220i200008-200307
LH
81193RETAINER, HEADLAMP PROTECTOR, UPPER RH
main81193-50010i200008-200307
main81194-48010i200307-200608
NO.2
81194RETAINER, HEADLAMP PROTECTOR, UPPER LH
main81193-48010i200307-200608
NO.2
main81194-50010i200008-200307
81195ARETAINER, HEADLAMP PROTECTOR, LOWER RH
main81195-50010i200008-200307
81196ARETAINER, HEADLAMP PROTECTOR, LOWER LH
main81196-50010i200008-200307
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
main90981-15011×2i200008-200307
12V 21W,AMBER
81515BSOCKET, FRONT TURN SIGNAL LAMP
main90075-60028×2i200008-200307
81610FBULB(FOR CLEARANCE LAMP)
main99132-12050×2i200008-200307
12V 5W
81615CSOCKET & WIRE, CLEARANCE LAMP
main81138-22680×2i200008-200307
85967COMPUTER, LIGHT CONTROL
main85967-41010×2i200008-200307
main85967-50020×2i200307-200312
9010906221
main90109-06221
9018906074
main90189-06074

23 parts on this diagram · 2 diagrams in section
