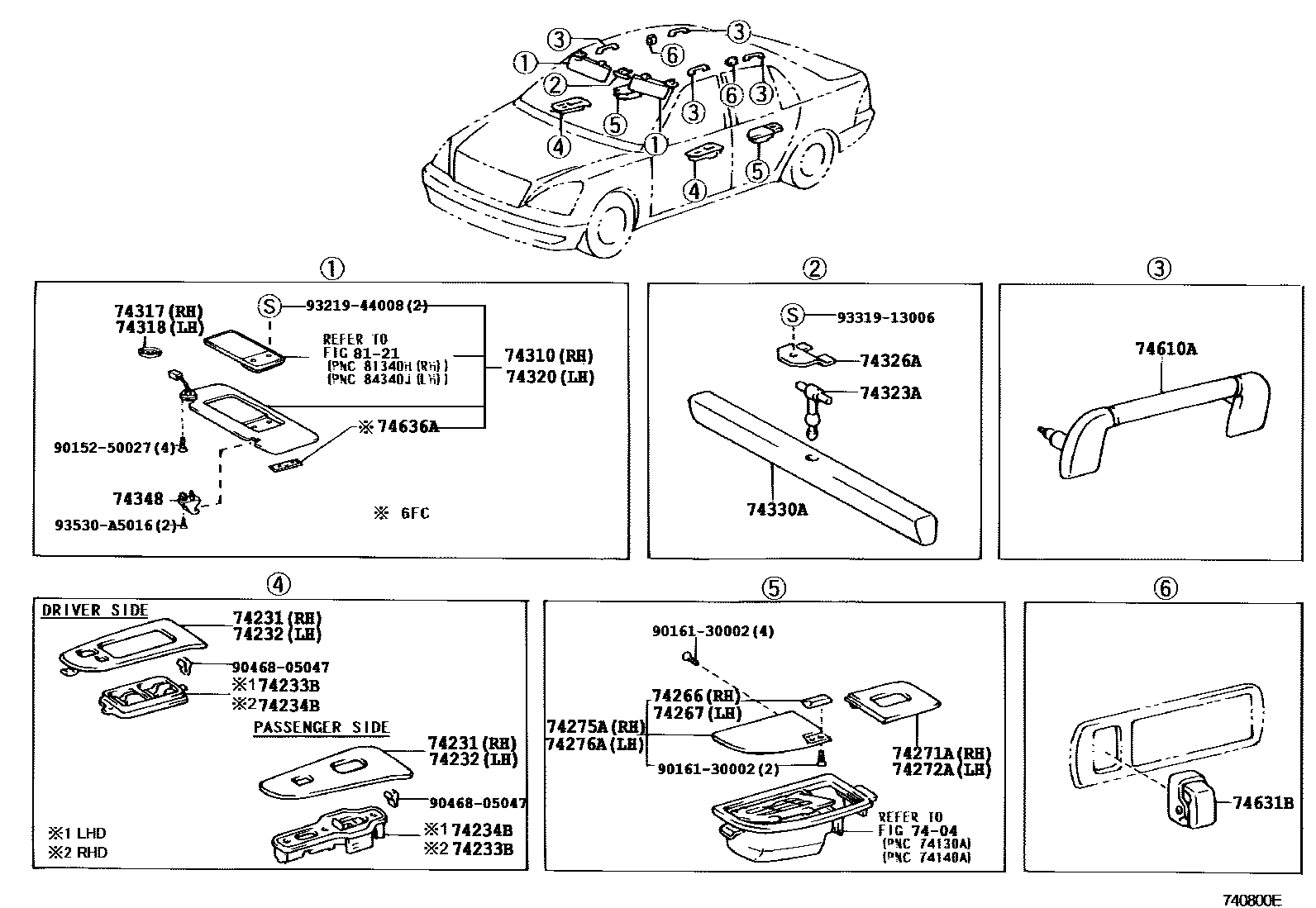

ARMREST & VISOR
7404
74231PANEL, FRONT ARMREST BASE, UPPER RH
MD.BROWN,TRIM04,1#
MD.BROWN,TRIM1#,21,24
LIGHTBROWN,TRIM00,07
LIGHTBROWN,TRIM03,2#
MD.BROWN,TRIM04,1#
LIGHTBROWN,TRIM03,2#
MD.BROWN,TRIM1#,21,24
MD.BROWN,TRIM04,1#
LIGHTBROWN,TRIM03,2#
LIGHTBROWN,TRIM00,07
74232PANEL, FRONT ARMREST BASE, UPPER LH
MD.BROWN,TRIM1#,21,24
MD.BROWN,TRIM04,1#
LIGHTBROWN,TRIM03,2#
LIGHTBROWN,TRIM00,07
MD.BROWN,TRIM04,1#
MD.BROWN,TRIM1#,21,24
LIGHTBROWN,TRIM03,2#
LIGHTBROWN,TRIM00,07
74233BPANEL, FRONT DOOR ARMREST BASE, LOWER RH
74234BPANEL, FRONT DOOR ARMREST BASE, LOWER LH
74266CAP, DOOR ARMREST, RH
74267CAP, DOOR ARMREST, LH
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
MD.BROWN,TRIM1#,21,24
MD.BROWN,TRIM04,1#
LIGHTBROWN,TRIM00,07
LIGHTBROWN,TRIM03,2#
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
MD.BROWN,TRIM04,1#
MD.BROWN,TRIM1#,21,24
LIGHTBROWN,TRIM00,07
LIGHTBROWN,TRIM03,2#
74275APLATE, REAR DOOR ARMREST BASE FINISH,RH
MD.BROWN,TRIM1#,21,24
MD.BROWN,TRIM04,1#
LIGHTBROWN,TRIM03,2#
LIGHTBROWN,TRIM00,07
MD.BROWN,TRIM1#,21,24
LIGHTBROWN,TRIM00,07
74276APLATE, REAR DOOR ARMREST BASE FINISH,LH
MD.BROWN,TRIM04,1#
MD.BROWN,TRIM1#,21,24
LIGHTBROWN,TRIM03,2#
LIGHTBROWN,TRIM00,07
MD.BROWN,TRIM1#,21,24
LIGHTBROWN,TRIM00,07
74310VISOR ASSY, RH
TAIWAN SPEC,IVORY,TRIM04
TAIWAN SPEC,ECRU,TRIM03
TAIWAN SPEC,ECRU,TRIM00
TAIWAN SPEC,NEW IVORY,TRIM07
TAIWAN SPEC,MEDIUM CHARCOAL,TRIM1#,2#
TAIWAN SPEC,NEW GRAY,TRIM1#,21,24
IVORY,TRIM04
CHINA SPEC,IVORY,TRIM04
CHINA SPEC,ECRU,TRIM00
ECRU,TRIM00
ECRU,TRIM03
CHINA SPEC,ECRU,TRIM03
NEW IVORY,TRIM07
CHINA SPEC,NEW IVORY,TRIM07
MEDIUM CHARCOAL,TRIM11,20
CHINA SPEC,MEDIUM CHARCOAL,TRIM1#,2#
MEDIUM CHARCOAL,TRIM1#,2#
NEW GRAY,TRIM1#,21,24
CHINA SPEC,NEW GRAY,TRIM1#,21,24
IVORY,TRIM04
ECRU,TRIM03
ECRU,TRIM00
NEW IVORY,TRIM07
MEDIUM CHARCOAL,TRIM1#,2#
NEW GRAY,TRIM1#,21,24
HONG KONG OR SINGAPORE OR SOUTH AFRICA OR THAILAND SPEC,IVORY,TRIM04
IVORY,TRIM04
ECRU,TRIM00
HONG KONG OR SINGAPORE OR SOUTH AFRICA OR THAILAND SPEC,ECRU,TRIM00
HONG KONG OR SINGAPORE OR SOUTH AFRICA OR THAILAND SPEC,ECRU,TRIM03
ECRU,TRIM03
HONG KONG OR SINGAPORE OR SOUTH AFRICA OR THAILAND SPEC,NEW IVORY,TRIM07
NEW IVORY,TRIM07
MEDIUM CHARCOAL,TRIM11,20
HONG KONG OR SINGAPORE OR SOUTH AFRICA OR THAILAND SPEC,MEDIUM CHARCOAL,TRIM1#,2#
NEW GRAY,TRIM1#,21,24
HONG KONG OR SINGAPORE OR SOUTH AFRICA OR THAILAND SPEC,NEW GRAY,TRIM1#,21,24
74317COVER, VISOR BRACKET, RH
74318COVER, VISOR BRACKET, LH
74320VISOR ASSY, LH
TAIWAN SPEC,IVORY,TRIM04
TAIWAN SPEC,ECRU,TRIM00
TAIWAN SPEC,ECRU,TRIM03
TAIWAN SPEC,NEW IVORY,TRIM07
TAIWAN SPEC,MEDIUM CHARCOAL,TRIM1#,2#
TAIWAN SPEC,NEW GRAY,TRIM1#,21,24
IVORY,TRIM04
ECRU,TRIM03
ECRU,TRIM00
NEW IVORY,TRIM07
MEDIUM CHARCOAL,TRIM1#,2#
NEW GRAY,TRIM1#,21,24
IVORY,TRIM04
HONG KONG OR SINGAPORE OR SOUTH AFRICA OR THAILAND SPEC,IVORY,TRIM04
ECRU,TRIM03
HONG KONG OR SINGAPORE OR SOUTH AFRICA OR THAILAND SPEC,ECRU,TRIM03
ECRU,TRIM00
HONG KONG OR SINGAPORE OR SOUTH AFRICA OR THAILAND SPEC,ECRU,TRIM00
HONG KONG OR SINGAPORE OR SOUTH AFRICA OR THAILAND SPEC,NEW IVORY,TRIM07
NEW IVORY,TRIM07
HONG KONG OR SINGAPORE OR SOUTH AFRICA OR THAILAND SPEC,MEDIUM CHARCOAL,TRIM1#,2#
MEDIUM CHARCOAL,TRIM1#,2#
NEW GRAY,TRIM1#,21,24
HONG KONG OR SINGAPORE OR SOUTH AFRICA OR THAILAND SPEC,NEW GRAY,TRIM1#,21,24
IVORY,TRIM04
CHINA SPEC,IVORY,TRIM04
CHINA SPEC,ECRU,TRIM03
ECRU,TRIM03
CHINA SPEC,ECRU,TRIM00
CHINA SPEC,NEW IVORY,TRIM07
MEDIUM CHARCOAL,TRIM1#,2#
CHINA SPEC,MEDIUM CHARCOAL,TRIM1#,2#
CHINA SPEC,NEW GRAY,TRIM1#,21,24
74323ASTAY, FRONT VISOR, RH
74326ASUPPORT, FRONT VISOR, NO.2
74330AVISOR ASSY, CENTER
IVORY,TRIM04
ECRU,TRIM03
ECRU,TRIM00
NEW IVORY,TRIM07
MEDIUM CHARCOAL,TRIM1#,2#
NEW GRAY,TRIM1#,21,24
NEW GRAY,TRIM2#
74348HOLDER, VISOR
74610AGRIP SUB-ASSY, ASSIST
74631BHOOK, COAT
74636ABEZEL, CARD HOLDER
ECRU,TRIM00
IVORY,TRIM07
GRAY,TRIM1#,21,24
8121
9015250027
9016130002
9046805047
9321944008
9331913006
93530A5016
29 parts on this diagram · 1 diagram in section
