E
EPC Data

REAR SEAT & SEAT TRACK

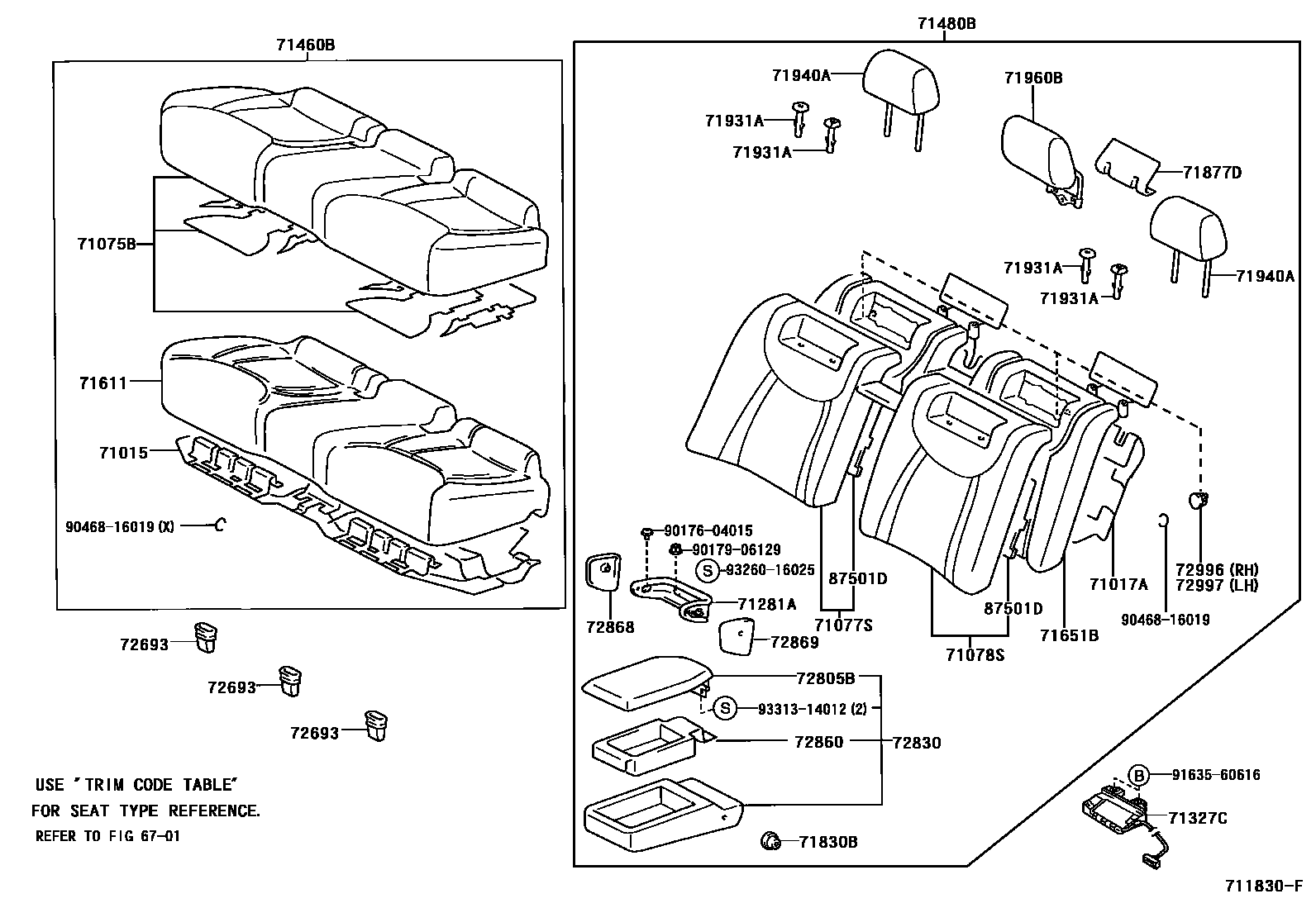

Parts diagram
6701
71015FRAME SUB-ASSY, REAR SEAT CUSHION
main71650-50090i200008-200608
71017FRAME SUB-ASSY, REAR SEATBACK, RH
main71670-50130i200008-200307
main71670-50140i200307-200608
71017AFRAME SUB-ASSY, REAR SEATBACK
main71670-50120i200008-200608
71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)
main71075-50400-A0i200103-200307
SEAT = TYPE C-*104,ECRU,TRIM03
sub71075-50480
main71075-50400-A0i200008-200103
SEAT = TYPE B-*104,ECRU,TRIM03
sub71075-50480
main71075-50400-A1i200103-200307
SEAT = TYPE C-*104,IVORY,TRIM04
sub71075-50480
main71075-50400-A1i200008-200103
SEAT = TYPE B-*104,IVORY,TRIM04
sub71075-50480
main71075-50400-B0i200103-200307
SEAT = TYPE C-*104,CHARCOAL,TRIM1#
sub71075-50480
main71075-50400-B0i200008-200103
SEAT = TYPE B OR TYPE C-*104,CHARCOAL,TRIM1#
sub71075-50480
main71075-50400-C0i200008-200103
SEAT = TYPE B-*104,BLACK,TRIM2#
sub71075-50480
main71075-50400-C0i200103-200307
SEAT = TYPE C-*104,BLACK,TRIM2#
sub71075-50480
main71075-50480-A0i200103-200307
SEAT = TYPE B-*104,ECRU,TRIM03
main71075-50480-A1i200103-200307
SEAT = TYPE B-*104,IVORY,TRIM04
main71075-50480-B0i200103-200307
SEAT = TYPE B-*104,CHARCOAL,TRIM1#
main71075-50480-C0i200103-200307
SEAT = TYPE B-*104,BLACK,TRIM2#
main71075-50530-A0i200103-200307
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,ECRU,TRIM03
main71075-50530-A1i200103-200307
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,IVORY,TRIM04
main71075-50530-B0i200103-200307
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,CHARCOAL,TRIM1#
main71075-50530-C0i200103-200307
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,BLACK,TRIM2#
main71075-50550-A0i200008-200103
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,ECRU,TRIM03
main71075-50550-A0i200103-200307
W(CLIMATE CONTROL SEAT) & SEAT = TYPE C-*104,ECRU,TRIM03
main71075-50550-A1i200008-200103
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,IVORY,TRIM04
main71075-50550-A1i200103-200307
W(CLIMATE CONTROL SEAT) & SEAT = TYPE C-*104,IVORY,TRIM04
main71075-50550-B0i200008-200103
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,CHARCOAL,TRIM1#
main71075-50550-B0i200103-200307
W(CLIMATE CONTROL SEAT) & SEAT = TYPE C-*104,CHARCOAL,TRIM1#
main71075-50550-C0i200103-200307
W(CLIMATE CONTROL SEAT) & SEAT = TYPE C-*104,BLACK,TRIM2#
main71075-50550-C0i200008-200103
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,BLACK,TRIM2#
main71075-50640-A0i200307-200608
NEW IVORY,TRIM01,07
main71075-50640-A1i200307-200608
ECRU,TRIM00
main71075-50640-B0i200307-200608
NEW GRAY,TRIM1#
main71075-50640-C0i200307-200608
BLACK,TRIM20,24
main71075-50650-A0i200307-200608
W(FRONT CLIMATE CONTROL SEAT),NEW IVORY,TRIM07
sub71075-50670
main71075-50650-A1i200307-200608
W(FRONT CLIMATE CONTROL SEAT),ECRU,TRIM00
sub71075-50670
main71075-50650-B0i200307-200608
W(FRONT CLIMATE CONTROL SEAT),NEW GRAY,TRIM1#
sub71075-50670
main71075-50650-C0i200307-200608
W(FRONT CLIMATE CONTROL SEAT),BLACK,TRIM2#
sub71075-50670
71077SCOVER, REAR SEATBACK, RH (FOR SEPARATE TYPE)
main71077-50420-A0i200008-200307
SEAT = TYPE B OR TYPE C-*104,ECRU,TRIM03
sub71077-50500
main71077-50420-A1i200103-200307
SEAT = TYPE C-*104,IVORY,TRIM04
sub71077-50500
main71077-50420-A1i200008-200307
SEAT = TYPE B OR TYPE C-*104,IVORY,TRIM04
sub71077-50500
main71077-50420-B0i200008-200307
SEAT = TYPE C-*104,CHARCOAL,TRIM1#
sub71077-50500
main71077-50420-C0i200008-200307
SEAT = TYPE B OR TYPE C-*104,BLACK,TRIM2#
sub71077-50500
main71077-50500-A0i200103-200307
SEAT = TYPE B-*104,ECRU,TRIM03
main71077-50500-A1i200103-200307
SEAT = TYPE B-*104,IVORY,TRIM04
main71077-50500-B0i200103-200307
SEAT = TYPE B-*104,CHARCOAL,TRIM1#
main71077-50500-C0i200103-200307
SEAT = TYPE B-*104,BLACK,TRIM2#
main71077-50560-A0i200103-200307
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,ECRU,TRIM03
main71077-50560-A1i200103-200307
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,IVORY,TRIM04
main71077-50560-B0i200103-200307
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,CHARCOAL,TRIM1#
main71077-50560-C0i200103-200307
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,BLACK,TRIM2#
main71077-50570-A0i200103-200307
W(CLIMATE CONTROL SEAT) & SEAT = TYPE C-*104,ECRU,TRIM03
main71077-50570-A0i200008-200103
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,ECRU,TRIM03
main71077-50570-A1i200008-200103
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,IVORY,TRIM04
main71077-50570-A1i200103-200307
W(CLIMATE CONTROL SEAT) & SEAT = TYPE C-*104,IVORY,TRIM04
main71077-50570-B0i200008-200307
W(CLIMATE CONTROL SEAT) & SEAT = TYPE C-*104,CHARCOAL,TRIM1#
main71077-50570-B0i200008-200103
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,CHARCOAL,TRIM1#
main71077-50570-C0i200103-200307
W(CLIMATE CONTROL SEAT) & SEAT = TYPE C-*104,BLACK,TRIM2#
main71077-50570-C0i200008-200103
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,BLACK,TRIM2#
main71077-50590-A0i200103-200307
W(CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE B-*104,ECRU,TRIM03
sub71077-50620
main71077-50590-A1i200103-200307
W(CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE B-*104,IVORY,TRIM04
sub71077-50620
main71077-50590-C0i200103-200307
W(CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE B-*104,BLACK,TRIM2#
sub71077-50620
main71077-50610-C2i200008-200307
SEAT = TYPE A-*104,BLACK,TRIM2#
main71077-50620-B0i200103-200307
W(CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE B-*104,CHARCOAL,TRIM1#
sub71077-50590
main71077-50650-A0i200307-200608
SEAT = TYPE A-*104,NEW IVORY,TRIM07
main71077-50650-A1i200307-200608
SEAT = TYPE A-*104,ECRU,TRIM00
main71077-50650-B0i200307-200608
SEAT = TYPE A-*104,NEW GRAY,TRIM1#
main71077-50650-C0i200307-200608
SEAT = TYPE A-*104,BLACK,TRIM2#
main71077-50670-A0i200008-200103
W(CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE B-*104,ECRU,TRIM03
main71077-50670-A0i200008-200307
W(CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE B OR C-*104,ECRU,TRIM03
main71077-50670-A1i200008-200307
W(CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE B OR C-*104,IVORY,TRIM04
main71077-50670-A1i200008-200103
W(CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE B-*104,IVORY,TRIM04
main71077-50670-B0i200008-200307
W(CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE B OR C-*104,CHARCOAL,TRIM1#
main71077-50670-B0i200008-200103
W(CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE B-*104,CHARCOAL,TRIM1#
main71077-50670-C0i200008-200307
W(CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE B OR C-*104,BLACK,TRIM2#
main71077-50670-C0i200008-200103
W(CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE B-*104,BLACK,TRIM2#
main71077-50680-A0i200307-200608
W(FRONT CLIMATE CONTROL SEAT) & SEAT = TYPE A-*104,NEW IVORY,TRIM07
sub71077-50760
main71077-50680-A1i200307-200608
W(FRONT CLIMATE CONTROL SEAT) & SEAT = TYPE A-*104,ECRU,TRIM00
sub71077-50760
main71077-50680-B0i200307-200608
W(FRONT CLIMATE CONTROL SEAT) & SEAT = TYPE A-*104,NEW GRAY,TRIM1#
sub71077-50760
main71077-50680-C0i200307-200608
W(FRONT CLIMATE CONTROL SEAT) & SEAT = TYPE A-*104,BLACK,TRIM2#
sub71077-50760
main71077-50720-A1i200307-200608
W(REAR CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE A-*104,IVORY,TRIM07
sub71077-50730
main71077-50720-A2i200307-200608
W(REAR CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE A-*104,ECRU,TRIM00
sub71077-50730
main71077-50720-B1i200307-200608
W(REAR CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE A-*104,NEW GRAY,TRIM1#
sub71077-50730
main71077-50720-C1i200307-200608
W(REAR CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE A-*104,BLACK,TRIM2#
sub71077-50730
main71077-50740-C0i200307-200501
W(REAR CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE B-*104,BLACK,TRIM2#
sub71077-50741
main71077-50741-C0i200502-200608
W(REAR CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE B-*104,BLACK,TRIM2#
main71077-50840-A0i200307-200608
W(REAR POWER SEAT) & SEAT = TYPE A-*104,NEW IVORY,TRIM07
sub71077-50860
main71077-50840-A1i200307-200608
W(REAR POWER SEAT) & SEAT = TYPE A-*104,ECRU,TRIM00
sub71077-50860
main71077-50840-C0i200307-200608
W(REAR POWER SEAT) & SEAT = TYPE A-*104,BLACK,TRIM2#
sub71077-50860
main71077-50850-C0i200307-200501
W(REAR POWER SEAT) & SEAT = TYPE B-*104,BLACK,TRIM2#
sub71077-50851
main71077-50851-C0i200502-200608
W(REAR POWER SEAT) & SEAT = TYPE B-*104,BLACK,TRIM2#
main71077-50860-B0i200307-200608
W(REAR POWER SEAT) & SEAT = TYPE A-*104,NEW GRAY,TRIM1#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-50190-A0i200008-200103
SEAT = TYPE B-*104,ECRU,TRIM03
sub71078-50270
main71078-50190-A0i200103-200307
SEAT = TYPE C-*104,ECRU,TRIM03
sub71078-50270
main71078-50190-A1i200008-200103
SEAT = TYPE B-*104,IVORY,TRIM04
sub71078-50270
main71078-50190-A1i200103-200307
SEAT = TYPE C-*104,IVORY,TRIM04
sub71078-50270
main71078-50190-B0i200103-200307
SEAT = TYPE C-*104,CHARCOAL,TRIM1#
sub71078-50270
main71078-50190-B0i200008-200103
SEAT = TYPE B-*104,CHARCOAL,TRIM1#
sub71078-50270
main71078-50190-C0i200008-200103
SEAT = TYPE B-*104,BLACK,TRIM2#
sub71078-50270
main71078-50190-C0i200103-200307
SEAT = TYPE C-*104,BLACK,TRIM2#
sub71078-50270
main71078-50270-A0i200103-200307
SEAT = TYPE B-*104,ECRU,TRIM03
main71078-50270-A1i200103-200307
SEAT = TYPE B-*104,IVORY,TRIM04
main71078-50270-B0i200103-200307
SEAT = TYPE B-*104,CHARCOAL,TRIM1#
main71078-50270-C0i200103-200307
SEAT = TYPE B-*104,BLACK,TRIM2#
main71078-50330-A0i200103-200307
W(CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE B-*104,ECRU,TRIM03
sub71078-50390
main71078-50330-A1i200103-200307
W(CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE B-*104,IVORY,TRIM04
sub71078-50390
main71078-50330-C0i200103-200307
W(CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE B-*104,BLACK,TRIM2#
sub71078-50390
main71078-50340-C2i200008-200307
W(CLIMATE CONTROL SEAT) & SEAT = TYPE A-*104,BLACK,TRIM2#
main71078-50350-A0i200103-200307
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,ECRU,TRIM03
main71078-50350-A1i200103-200307
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,IVORY,TRIM04
main71078-50350-B0i200103-200307
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,CHARCOAL,TRIM1#
main71078-50350-C0i200103-200307
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,BLACK,TRIM2#
main71078-50360-A0i200008-200103
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,ECRU,TRIM03
main71078-50360-A0i200103-200307
W(CLIMATE CONTROL SEAT) & SEAT = TYPE C-*104,ECRU,TRIM03
main71078-50360-A1i200008-200103
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,IVORY,TRIM04
main71078-50360-A1i200103-200307
W(CLIMATE CONTROL SEAT) & SEAT = TYPE C-*104,IVORY,TRIM04
main71078-50360-B0i200103-200307
W(CLIMATE CONTROL SEAT) & SEAT = TYPE C-*104,CHARCOAL,TRIM1#
main71078-50360-B0i200008-200103
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B OR C-*104,CHARCOAL,TRIM1#
main71078-50360-C0i200103-200307
W(CLIMATE CONTROL SEAT) & SEAT = TYPE C-*104,BLACK,TRIM2#
main71078-50360-C0i200008-200103
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,BLACK,TRIM2#
main71078-50390-B0i200103-200307
W(CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE B-*104,CHARCOAL,TRIM1#
sub71078-50330
main71078-50430-A0i200008-200103
W(CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE B-*104,ECRU,TRIM03
main71078-50430-A0i200103-200307
W(CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE C-*104,ECRU,TRIM03
main71078-50430-A1i200008-200103
W(CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE B-*104,IVORY,TRIM04
main71078-50430-A1i200103-200307
W(CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE C-*104,IVORY,TRIM04
main71078-50430-B0i200008-200103
W(CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE B OR C-*104,CHARCOAL,TRIM1#
main71078-50430-B0i200103-200307
W(CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE C-*104,CHARCOAL,TRIM1#
main71078-50430-C0i200008-200103
W(CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE B-*104,BLACK,TRIM2#
main71078-50430-C0i200103-200307
W(CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE C-*104,BLACK,TRIM2#
main71078-50450-A0i200307-200608
SEAT = TYPE A-*104,NEW IVORY,TRIM01,07
main71078-50450-A1i200307-200608
SEAT = TYPE A-*104,ECRU,TRIM00
main71078-50450-B0i200307-200608
SEAT = TYPE A-*104,NEW GRAY,TRIM1#
main71078-50450-C0i200307-200608
SEAT = TYPE A-*104,BLACK,TRIM20,24
main71078-50460-A0i200307-200608
W(FRONT CLIMATE CONTROL SEAT) & SEAT = TYPE A-*104,NEW IVORY,TRIM01,07
sub71078-50540
main71078-50460-A1i200307-200608
W(FRONT CLIMATE CONTROL SEAT) & SEAT = TYPE A-*104,ECRU,TRIM00
sub71078-50540
main71078-50460-B0i200307-200608
W(FRONT CLIMATE CONTROL SEAT) & SEAT = TYPE A-*104,NEW GRAY,TRIM1#
sub71078-50540
main71078-50460-C0i200307-200608
W(FRONT CLIMATE CONTROL SEAT) & SEAT = TYPE A-*104,BLACK,TRIM20,24
sub71078-50540
main71078-50500-A0i200307-200608
W(REAR CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE A-*104,ECRU,TRIM00
sub71078-50510
main71078-50500-A1i200307-200608
W(REAR CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE A-*104,IVORY,TRIM07
sub71078-50510
main71078-50500-B0i200307-200608
W(REAR CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE A-*104,GRAY,TRIM1#
sub71078-50510
main71078-50500-C0i200307-200608
W(REAR CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE A-*104,BLACK,TRIM2#
sub71078-50510
main71078-50520-C0i200307-200501
W(REAR CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE B-*104,BLACK,TRIM2#
sub71078-50521
main71078-50521-C0i200502-200608
W(REAR CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE B-*104,BLACK,TRIM2#
main71078-50620-A0i200307-200608
W(REAR POWER SEAT) & SEAT = TYPE A-*104,NEW IVORY,TRIM07
sub71078-50640
main71078-50620-A1i200307-200608
W(REAR POWER SEAT) & SEAT = TYPE A-*104,ECRU,TRIM00
sub71078-50640
main71078-50620-C0i200307-200608
W(REAR POWER SEAT) & SEAT = TYPE A-*104,BLACK,TRIM2#
sub71078-50640
main71078-50630-C0i200307-200501
W(REAR POWER SEAT) & SEAT = TYPE B-*104,BLACK,TRIM2#
sub71078-50631
main71078-50631-C0i200502-200608
W(REAR POWER SEAT) & SEAT = TYPE B-*104,BLACK,TRIM2#
main71078-50640-B0i200307-200608
W(REAR POWER SEAT) & SEAT = TYPE A-*104,NEW GRAY,TRIM1#
71281AHINGE, REAR SEAT CENTER ARMREST
main71281-50040i200008-200608
main71281-50060i200008-200608
W(REAR POWER SEAT)
71327CBRACKET, REAR SEAT CUSHION
main71327-50020i200008-200307
71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
main71460-50540i200211-200307
SEAT = TYPE C-*104
main71460-50540-A0i200008-200211
SEAT = TYPE B-*104,ECRU,TRIM03
main71460-50540-A1i200008-200211
SEAT = TYPE B-*104,IVORY,TRIM04
main71460-50540-B0i200103-200211
SEAT = TYPE C-*104,MD. CHARCOL,TRIM1#
main71460-50540-B0i200008-200103
SEAT = TYPE B-*104,MD. CHARCOL,TRIM1#
main71460-50540-C0i200008-200103
SEAT = TYPE B-*104,BLACK,TRIM2#
main71460-50540-C0i200103-200211
SEAT = TYPE C-*104,BLACK,TRIM2#
main71460-50570i200211-200307
SEAT = TYPE B-*104
main71460-50570-A1i200103-200307
SEAT = TYPE B-*104,IVORY,TRIM04
sub71460-50570
main71460-50570-A1i200103-200211
SEAT = TYPE B-*104,IVORY,TRIM0#
sub71460-50570
main71460-50570-A2i200103-200307
SEAT = TYPE B-*104,ECRU,TRIM03
sub71460-50570
main71460-50570-B0i200103-200307
SEAT = TYPE B-*104,MD. CHARCOL,TRIM1#
sub71460-50570
main71460-50570-C0i200103-200307
SEAT = TYPE B-*104,BLACK,TRIM2#
sub71460-50570
main71460-50650i200211-200307
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104
main71460-50650-A0i200103-200307
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,ECRU,TRIM03
main71460-50650-A1i200103-200307
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,IVORY,TRIM04
main71460-50650-B0i200103-200307
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,MD. CHARCOL,TRIM1#
main71460-50650-C0i200103-200307
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,BLACK,TRIM2#
main71460-50670i200211-200307
W(CLIMATE CONTROL SEAT) & SEAT = TYPE C-*104
main71460-50670-A0i200008-200103
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,ECRU,TRIM03
main71460-50670-A0i200008-200211
W(CLIMATE CONTROL SEAT) & SEAT = TYPE C-*104,ECRU,TRIM03
main71460-50670-A1i200008-200211
W(CLIMATE CONTROL SEAT) & SEAT = TYPE C-*104,IVORY,TRIM04
main71460-50670-A1i200008-200103
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,IVORY,TRIM04
main71460-50670-B0i200008-200103
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,MD. CHARCOL,TRIM1#
main71460-50670-B0i200008-200211
W(CLIMATE CONTROL SEAT) & SEAT = TYPE C-*104,MD. CHARCOL,TRIM1#
main71460-50670-C0i200008-200103
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,BLACK,TRIM2#
main71460-50670-C0i200008-200211
W(CLIMATE CONTROL SEAT) & SEAT = TYPE C-*104,BLACK,TRIM2#
71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)
main71480-50750-A0i200203-200303
SEAT = TYPE B-*104,ECRU,TRIM03
sub71480-50750
main71480-50750-A1i200203-200303
SEAT = TYPE B-*104,IVORY,TRIM04
sub71480-50750
main71480-50750-A2i200303-200307
SEAT = TYPE B-*104,ECRU,TRIM03
sub71480-50750
main71480-50750-A3i200303-200307
SEAT = TYPE B-*104,IVORY,TRIM04
sub71480-50750
main71480-50750-B0i200203-200303
SEAT = TYPE B-*104,MD.CHARCOL,TRIM1#
sub71480-50750
main71480-50750-B1i200303-200307
SEAT = TYPE B-*104,MD.CHARCOAL,TRIM1#
sub71480-50750
main71480-50750-C0i200203-200303
SEAT = TYPE B-*104,BLACK,TRIM2#
sub71480-50750
main71480-50750-C1i200303-200307
SEAT = TYPE B-*104,BLACK,TRIM2#
sub71480-50750
main71480-50780-A6i200008-200303
W(SEAT HEATER) & SEAT = TYPE B-*104,ECRU,TRIM03
sub71480-50780
main71480-50780-A7i200008-200303
W(SEAT HEATER) & SEAT = TYPE B-*104,IVORY,TRIM04
sub71480-50780
main71480-50780-A8i200303-200307
SEAT = TYPE C-*104,ECRU,TRIM03
sub71480-50780
main71480-50780-A9i200303-200307
SEAT = TYPE C-*104,IVORY,TRIM04
sub71480-50780
main71480-50780-B3i200008-200303
SEAT = TYPE C-*104,MD.CHARCOAL,TRIM1#
sub71480-50780
main71480-50780-B3i200008-200103
W(SEAT HEATER) & SEAT = TYPE B-*104,MD.CHARCOAL,TRIM1#
sub71480-50780
main71480-50780-B4i200303-200307
SEAT = TYPE C-*104,MD.CHARCOAL,TRIM1#
sub71480-50780
main71480-50780-C3i200008-200303
W(SEAT HEATER) & SEAT = TYPE B-*104,BLACK,TRIM2#
sub71480-50780
main71480-50780-C4i200303-200307
SEAT = TYPE C-*104,BLACK,TRIM2#
sub71480-50780
main71480-50810-02i200103-200303
SEAT = TYPE B-*104,IVORY,TRIM04
sub71480-50810
main71480-50810-03i200303-200307
SEAT = TYPE B-*104,ECRU/ECRU,TRIM03
sub71480-50810
main71480-50810-04i200303-200307
SEAT = TYPE B-*104,IVORY,TRIM04
sub71480-50810
main71480-50810-A9i200103-200303
SEAT = TYPE B-*104,ECRU,TRIM03
sub71480-50810
main71480-50810-B3i200103-200303
SEAT = TYPE B-*104,MD.CHARCOAL,TRIM1#
sub71480-50810
main71480-50810-B4i200303-200307
SEAT = TYPE B-*104,MD.CHARCOAL,TRIM1#
sub71480-50810
main71480-50810-C3i200103-200303
SEAT = TYPE B-*104,BLACK,TRIM2#
sub71480-50810
main71480-50810-C5i200303-200307
SEAT = TYPE B-*104,BLACK,TRIM2#
sub71480-50810
main71480-50830-A6i200103-200303
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,ECRU,TRIM03
sub71480-50830
main71480-50830-A7i200103-200303
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,IVORY,TRIM04
sub71480-50830
main71480-50830-A8i200303-200307
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,ECRU,TRIM03
sub71480-50830
main71480-50830-A9i200303-200307
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,IVORY,TRIM04
sub71480-50830
main71480-50830-B3i200103-200303
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,MD.CHARCOAL,TRIM1#
sub71480-50830
main71480-50830-B4i200303-200307
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,MD.CHARCOAL,TRIM1#
sub71480-50830
main71480-50830-C3i200103-200303
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,BLACK,TRIM2#
sub71480-50830
main71480-50830-C4i200303-200307
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,BLACK,TRIM2#
sub71480-50830
main71480-50840-A6i200103-200303
W(CLIMATE CONTROL SEAT) & SEAT = TYPE C-*104,ECRU,TRIM03
sub71480-50840
main71480-50840-A6i200008-200103
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,ECRU,TRIM03
sub71480-50840
main71480-50840-A7i200008-200103
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,IVORY,TRIM04
sub71480-50840
main71480-50840-A7i200103-200303
W(CLIMATE CONTROL SEAT) & SEAT = TYPE C-*104,IVORY,TRIM04
sub71480-50840
main71480-50840-A8i200303-200307
W(CLIMATE CONTROL SEAT) & SEAT = TYPE C-*104,ECRU,TRIM03
sub71480-50840
main71480-50840-A9i200303-200307
W(CLIMATE CONTROL SEAT) & SEAT = TYPE C-*104,IVORY,TRIM04
sub71480-50840
main71480-50840-B3i200008-200103
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,MD.CHARCOAL,TRIM1#
sub71480-50840
main71480-50840-B3i200008-200303
W(CLIMATE CONTROL SEAT) & SEAT = TYPE C-*104,MD.CHARCOAL,TRIM1#
sub71480-50840
main71480-50840-B4i200303-200307
W(CLIMATE CONTROL SEAT) & SEAT = TYPE C-*104,MD.CHARCOAL,TRIM1#
sub71480-50840
main71480-50840-C3i200008-200103
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,BLACK,TRIM2#
sub71480-50840
main71480-50840-C3i200103-200303
W(CLIMATE CONTROL SEAT) & SEAT = TYPE C-*104,BLACK,TRIM2#
sub71480-50840
main71480-50840-C4i200303-200307
W(CLIMATE CONTROL SEAT) & SEAT = TYPE C-*104,BLACK,TRIM2#
sub71480-50840
main71480-5A120-A6i200008-200107
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,ECRU,TRIM03
sub71480-5A120
main71480-5A120-A6i200008-200303
W(CLIMATE CONTROL SEAT & REAR AIR CONDITIONER) & SEAT = TYPE B-*104,ECRU,TRIM03
sub71480-5A120
main71480-5A120-A7i200008-200303
W(CLIMATE CONTROL SEAT & REAR AIR CONDITIONER) & SEAT = TYPE B-*104,IVORY,TRIM04
sub71480-5A120
main71480-5A120-A7i200008-200107
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,IVORY,TRIM04
sub71480-5A120
main71480-5A120-A8i200303-200307
W(CLIMATE CONTROL SEAT & REAR AIR CONDITIONER) & SEAT = TYPE B-*104,ECRU,TRIM03
sub71480-5A120
main71480-5A120-A9i200303-200307
W(CLIMATE CONTROL SEAT & REAR AIR CONDITIONER) & SEAT = TYPE B-*104,IVORY,TRIM04
sub71480-5A120
main71480-5A120-B3i200008-200107
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,MD.CHARCOAL,TRIM1#
sub71480-5A120
main71480-5A120-B3i200008-200303
W(CLIMATE CONTROL SEAT & REAR AIR CONDITIONER) & SEAT = TYPE B-*104,MD.CHARCOAL,TRIM1#
sub71480-5A120
main71480-5A120-B4i200303-200307
W(CLIMATE CONTROL SEAT & REAR AIR CONDITIONER) & SEAT = TYPE B-*104,MD.CHARCOAL,TRIM1#
sub71480-5A120
main71480-5A120-C3i200008-200107
W(CLIMATE CONTROL SEAT) & SEAT = TYPE B-*104,BLACK,TRIM2#
sub71480-5A120
main71480-5A120-C3i200008-200303
W(CLIMATE CONTROL SEAT & REAR AIR CONDITIONER) & SEAT = TYPE B-*104,BLACK,TRIM2#
sub71480-5A120
main71480-5A120-C4i200303-200307
W(CLIMATE CONTROL SEAT & REAR AIR CONDITIONER) & SEAT = TYPE B-*104,BLACK,TRIM2#
sub71480-5A120
main71480-5A150-A6i200008-200203
SEAT = TYPE B-*104,ECRU,TRIM03
main71480-5A150-A6i200008-200107
W(REAR AIR CONDITIONER) & SEAT = TYPE B-*104,ECRU,TRIM03
main71480-5A150-A7i200008-200107
W(REAR AIR CONDITIONER) & SEAT = TYPE B-*104,IVORY,TRIM04
main71480-5A150-A7i200008-200203
SEAT = TYPE B-*104,IVORY,TRIM04
main71480-5A150-B3i200008-200107
W(REAR AIR CONDITIONER) & SEAT = TYPE B-*104,MD.CHARCOAL,TRIM1#
main71480-5A150-B3i200008-200203
SEAT = TYPE B-*104,MD.CHARCOAL,TRIM1#
main71480-5A150-C3i200008-200107
W(REAR AIR CONDITIONER) & SEAT = TYPE B-*104,BLACK,TRIM2#
main71480-5A150-C3i200008-200203
SEAT = TYPE B-*104,BLACK,TRIM2#
71611PAD, REAR SEAT CUSHION
main71611-50160i200008-200608
71651BPAD, REAR SEATBACK(FOR BENCH TYPE)
main71651-50150i200008-200608
RH
main71652-50130i200008-200608
LH
71830BBUSH(FOR REAR SEAT ARMREST)
main90386-06035i200008-200405
71877DCOVER, REAR SEAT ARMREST HOLE
main71877-50010-A0i200008-200307
W(REAR POWER SEAT),IVORY,TRIM04
main71877-50010-A1i200008-200307
W(REAR POWER SEAT),ECRU,TRIM03
main71877-50010-A1i200307-200608
W(REAR POWER SEAT),ECRU,TRIM00
main71877-50010-A2i200307-200608
W(REAR POWER SEAT),NEW IVORY,TRIM07
main71877-50010-B0i200008-200307
W(REAR POWER SEAT),MD.CHARCOAL,TRIM1#
main71877-50010-B1i200307-200608
W(REAR POWER SEAT),NEW GRAY,TRIM1#
main71877-50010-C0i200307-200608
W(REAR POWER SEAT),BLACK,TRIM21,24
main71877-50010-C0i200008-200307
W(REAR POWER SEAT),BLACK,TRIM2#
main71877-50020-A0i200008-200307
IVORY,TRIM04
main71877-50020-A1i200307-200608
ECRU,TRIM00
main71877-50020-A1i200008-200307
ECRU,TRIM03
main71877-50020-A2i200307-200608
NEW IVORY,TRIM01,07
main71877-50020-B0i200008-200307
MD.CHARCOAL,TRIM1#
main71877-50020-B1i200307-200608
NEW GRAY,TRIM1#
main71877-50020-C0i200008-200307
BLACK,TRIM2#
main71877-50020-C0i200307-200608
BLACK,TRIM20,21,24
71931ASUPPORT, REAR SEAT HEADREST
main71930-42020-A0i200008-200307
W(LOCK)&W(BUTTON),IVORY,TRIM04
sub71930-52030
sub71930-42020
sub71930-44020
main71930-42020-A1i200307-200608
W(LOCK)&W(BUTTON),ECRU,TRIM00
sub71930-52030
sub71930-42020
sub71930-44020
main71930-42020-A1i200008-200307
W(LOCK)&W(BUTTON),ECRU,TRIM03
sub71930-52030
sub71930-42020
sub71930-44020
main71930-42020-A3i200307-200608
W(LOCK)&W(BUTTON),IVORY,TRIM01,07
sub71930-52030
sub71930-42020
sub71930-44020
main71930-42020-B1i200008-200307
W(LOCK)&W(BUTTON),MD.CHARCOAL,TRIM1#
sub71930-52030
sub71930-42020
sub71930-44020
main71930-42020-B7i200307-200608
W(LOCK)&W(BUTTON),GRAY,TRIM1#
sub71930-52030
sub71930-42020
sub71930-44020
main71930-42020-C0i200008-200307
W(LOCK)&W(BUTTON),BLACK,TRIM2#
sub71930-52030
sub71930-42020
sub71930-44020
main71930-42020-C0i200307-200608
W(LOCK)&W(BUTTON),BLACK,TRIM20,21,24
sub71930-52030
sub71930-42020
sub71930-44020
main71931-42020-A0i200008-200307
W(LOCK)&W/O(BUTTON),IVORY,TRIM04
sub71931-42020
main71931-42020-A1i200008-200307
W(LOCK)&W/O(BUTTON),ECRU,TRIM03
sub71931-42020
main71931-42020-A1i200307-200608
W(LOCK)&W/O(BUTTON),ECRU,TRIM00
sub71931-42020
main71931-42020-A3i200307-200608
W(LOCK)&W/O(BUTTON),IVORY,TRIM01,07
sub71931-42020
main71931-42020-B1i200008-200307
W(LOCK)&W/O(BUTTON),MD.CHARCOAL,TRIM1#
sub71931-42020
main71931-42020-B7i200307-200608
W(LOCK)&W/O(BUTTON),GRAY,TRIM1#
sub71931-42020
main71931-42020-C0i200307-200608
W(LOCK)&W/O(BUTTON),BLACK,TRIM20,21,24
sub71931-42020
main71931-42020-C0i200008-200307
W(LOCK)&W/O(BUTTON),BLACK,TRIM2#
sub71931-42020
main71931-50030-A0i200008-200307
W/O(LOCK),W(POWER HEAD REST),IVORY,TRIM04
main71931-50030-A1i200307-200608
W/O(LOCK),W(POWER HEAD REST),ECRU,TRIM00
main71931-50030-A1i200008-200307
W/O(LOCK),W(POWER HEAD REST),ECRU,TRIM03
main71931-50030-A2i200307-200608
W/O(LOCK),W(POWER HEAD REST),NEW IVORY,TRIM07
main71931-50030-B0i200008-200307
W/O(LOCK),W(POWER HEAD REST),MD.CHARCOAL,TRIM1#
main71931-50030-B1i200307-200608
W/O(LOCK),W(POWER HEAD REST),NEW GRAY,TRIM1#
main71931-50030-C0i200307-200608
W/O(LOCK),W(POWER HEAD REST),BLACK,TRIM21,24
main71931-50030-C0i200008-200307
W/O(LOCK),W(POWER HEAD REST),BLACK,TRIM2#
71940AHEADREST ASSY, REAR SEAT
main71940-50310-A0i200103-200307
SEAT = TYPE B-*104,ECRU,TRIM03
sub71940-50320
main71940-50310-A1i200103-200307
SEAT = TYPE B-*104,IVORY,TRIM04
sub71940-50320
main71940-50310-C0i200103-200307
SEAT = TYPE B-*104,BLACK,TRIM2#
sub71940-50320
main71940-50320-B0i200103-200307
SEAT = TYPE B-*104,MD. CHARCOL,TRIM1#
sub71940-50310
main71940-50330-A0i200103-200307
SEAT = TYPE C-*104,ECRU,TRIM03
sub71940-50310
sub71940-50320
main71940-50330-A0i200008-200103
SEAT = TYPE B-*104,ECRU,TRIM03
sub71940-50310
sub71940-50320
main71940-50330-A1i200008-200103
SEAT = TYPE B-*104,IVORY,TRIM04
sub71940-50310
sub71940-50320
main71940-50330-A1i200103-200307
SEAT = TYPE C-*104,IVORY,TRIM04
sub71940-50310
sub71940-50320
main71940-50330-B0i200008-200103
SEAT = TYPE B-*104,MD. CHARCOL,TRIM1#
sub71940-50310
sub71940-50320
main71940-50330-B0i200008-200307
SEAT = TYPE C-*104,MD. CHARCOL,TRIM1#
sub71940-50310
sub71940-50320
main71940-50330-C0i200008-200103
SEAT = TYPE B-*104,BLACK,TRIM2#
sub71940-50310
sub71940-50320
main71940-50330-C0i200103-200307
SEAT = TYPE C-*104,BLACK,TRIM2#
sub71940-50310
sub71940-50320
main71940-50370-C0i200008-200307
SEAT = TYPE A-*104,BLACK,TRIM2#
main71940-50370-C0i200307-200608
SEAT = TYPE B-*104,BLACK,TRIM2#
main71940-50460-A0i200203-200307
SEAT = TYPE B-*104,XXXX,TRIM03
main71940-50460-A1i200203-200307
SEAT = TYPE B-*104,XXXX,TRIM04
main71940-50460-B0i200203-200307
SEAT = TYPE B-*104,XXXX,TRIM1#
main71940-50460-C0i200203-200307
SEAT = TYPE B-*104,XXXX,TRIM2#
main71940-50470-C0i200203-200307
SEAT = TYPE A-*104,BLACK,TRIM2#
main71940-50470-C0i200307-200608
SEAT = TYPE B-*104,BLACK,TRIM2#
main71940-50480-A0i200307-200608
SEAT = TYPE A-*104,ECRU,TRIM00
sub71940-50330
main71940-50480-A1i200307-200608
IVORY,TRIM01,07
sub71940-50330
main71940-50480-C0i200307-200608
BLACK,TRIM20,24
sub71940-50330
main71940-50550-A0i200307-200608
SEAT = TYPE A-*104,ECRU,TRIM00
main71940-50550-A1i200307-200608
IVORY,TRIM01,07
main71940-50550-B0i200307-200608
SEAT = TYPE A-*104,GRAY,TRIM1#
main71940-50550-C0i200307-200608
BLACK,TRIM20,24
71960BHEADREST ASSY, REAR SEAT, CENTER
main71960-50090-A2i200103-200307
SEAT = TYPE B-*104,ECRU,TRIM03
sub71960-50100
main71960-50090-A3i200103-200307
SEAT = TYPE B-*104,IVORY,TRIM04
sub71960-50100
main71960-50090-C1i200103-200307
SEAT = TYPE B-*104,BLACK,TRIM2#
sub71960-50100
main71960-50100-B1i200103-200307
SEAT = TYPE B-*104,MD.CHARCOAL,TRIM1#
sub71960-50090
main71960-50110-A2i200008-200103
SEAT = TYPE B-*104,ECRU,TRIM03
sub71960-50090
sub71960-50100
main71960-50110-A2i200008-200307
SEAT = TYPE C-*104,ECRU,TRIM03
sub71960-50090
sub71960-50100
main71960-50110-A3i200008-200307
SEAT = TYPE C-*104,IVORY,TRIM04
sub71960-50090
sub71960-50100
main71960-50110-A3i200008-200103
SEAT = TYPE B-*104,IVORY,TRIM04
sub71960-50090
sub71960-50100
main71960-50110-B1i200008-200103
SEAT = TYPE B-*104,MD.CHARCOAL,TRIM1#
sub71960-50090
sub71960-50100
main71960-50110-B1i200008-200307
SEAT = TYPE C-*104,MD.CHARCOAL,TRIM1#
sub71960-50090
sub71960-50100
main71960-50110-C1i200008-200307
SEAT = TYPE C-*104,BLACK,TRIM2#
sub71960-50090
sub71960-50100
main71960-50110-C1i200008-200103
SEAT = TYPE B-*104,BLACK,TRIM2#
sub71960-50090
sub71960-50100
main71960-50140-A2i200103-200307
W(REAR POWER SEAT) & SEAT = TYPE B-*104,ECRU,TRIM03
sub71960-50150
main71960-50140-A3i200103-200307
W(REAR POWER SEAT) & SEAT = TYPE B-*104,IVORY,TRIM04
sub71960-50150
main71960-50140-C2i200103-200307
W(REAR POWER SEAT) & SEAT = TYPE B-*104,BLACK,TRIM2#
sub71960-50150
main71960-50150-B1i200103-200307
W(REAR POWER SEAT) & SEAT = TYPE B-*104,MD.CHARCOAL,TRIM1#
sub71960-50140
sub71960-50210
main71960-50170-C3i200307-200608
SEAT = TYPE B-*104,BLACK,TRIM2#
main71960-50170-C3i200008-200307
SEAT = TYPE A-*104,BLACK,TRIM2#
main71960-50190-A2i200008-200307
W(REAR POWER SEAT) & SEAT = TYPE C-*104,ECRU,TRIM03
sub71960-50140
sub71960-50150
main71960-50190-A2i200008-200103
W(REAR POWER SEAT) & SEAT = TYPE B-*104,ECRU,TRIM03
sub71960-50140
sub71960-50150
main71960-50190-A3i200008-200103
W(REAR POWER SEAT) & SEAT = TYPE B-*104,IVORY,TRIM04
sub71960-50140
sub71960-50150
main71960-50190-A3i200008-200307
W(REAR POWER SEAT) & SEAT = TYPE C-*104,IVORY,TRIM04
sub71960-50140
sub71960-50150
main71960-50190-B1i200008-200307
W(REAR POWER SEAT) & SEAT = TYPE C-*104,MD.CHARCOAL,TRIM1#
sub71960-50140
sub71960-50150
main71960-50190-B1i200008-200103
W(REAR POWER SEAT) & SEAT = TYPE B-*104,MD.CHARCOAL,TRIM1#
sub71960-50140
sub71960-50150
main71960-50190-C1i200008-200103
W(REAR POWER SEAT) & SEAT = TYPE B-*104,BLACK,TRIM2#
sub71960-50140
sub71960-50150
main71960-50190-C1i200008-200307
W(REAR POWER SEAT) & SEAT = TYPE C-*104,BLACK,TRIM2#
sub71960-50140
sub71960-50150
main71960-50200-A0i200307-200608
SEAT = TYPE A-*104,ECRU,TRIM00
sub71960-50110
main71960-50200-A1i200307-200608
SEAT = TYPE A-*104,IVORY,TRIM07
sub71960-50110
main71960-50200-C0i200307-200608
SEAT = TYPE A-*104,BLACK,TRIM2#
sub71960-50110
main71960-50210-A0i200307-200608
W(REAR POWER SEAT) & SEAT = TYPE A-*104,ECRU,TRIM00
sub71960-50190
main71960-50210-A1i200307-200608
W(REAR POWER SEAT) & SEAT = TYPE A-*104,IVORY,TRIM07
sub71960-50190
main71960-50210-B0i200307-200608
W(REAR POWER SEAT) & SEAT = TYPE A-*104,GRAY,TRIM1#
sub71960-50190
main71960-50210-C0i200307-200608
W(REAR POWER SEAT) & SEAT = TYPE A-*104,BLACK,TRIM2#
sub71960-50190
72693HOOK, REAR SEAT CUSHION LOCK
main72693-14050i200008-200307
72805BDOOR SUB-ASSY, REAR SEAT CENTER ARMREST
main72805-50190-A6i200103-200307
SEAT = TYPE B-*104,IVORY,TRIM04
sub72805-50190
sub72805-50200
main72805-50190-A7i200103-200307
SEAT = TYPE B-*104,ECRU/ECRU,TRIM03
sub72805-50190
sub72805-50200
main72805-50190-C2i200103-200307
SEAT = TYPE B-*104,BLACK,TRIM2#
sub72805-50190
sub72805-50200
main72805-50200-B2i200103-200307
SEAT = TYPE B-*104,MD. CHARCOL,TRIM1#
main72805-50200-B3i200307-200608
GRAY,TRIM1#
main72805-50210-A4i200008-200103
SEAT = TYPE B-*104,ECRU,TRIM03
sub72805-50190
sub72805-50200
main72805-50210-A4i200008-200307
SEAT = TYPE C-*104,ECRU,TRIM03
sub72805-50190
sub72805-50200
main72805-50210-A5i200008-200307
SEAT = TYPE C-*104,IVORY,TRIM04
sub72805-50190
sub72805-50200
main72805-50210-A5i200008-200103
SEAT = TYPE B-*104,IVORY,TRIM04
sub72805-50190
sub72805-50200
main72805-50210-B2i200008-200307
SEAT = TYPE C-*104,MD. CHARCOL,TRIM1#
sub72805-50190
sub72805-50200
main72805-50210-B2i200008-200103
SEAT = TYPE B-*104,MD. CHARCOL,TRIM1#
sub72805-50190
sub72805-50200
main72805-50210-C2i200008-200103
SEAT = TYPE B-*104,BLACK,TRIM2#
sub72805-50190
sub72805-50200
main72805-50210-C2i200008-200307
SEAT = TYPE C-*104,BLACK,TRIM2#
sub72805-50190
sub72805-50200
main72805-50240-A6i200103-200307
W(REAR POWER SEAT) & SEAT = TYPE B-*104,IVORY,TRIM04
sub72805-50240
sub72805-50250
main72805-50240-A7i200103-200307
W(REAR POWER SEAT) & SEAT = TYPE B-*104,ECRU/ECRU,TRIM03
sub72805-50240
sub72805-50250
main72805-50240-B2i200103-200307
W(REAR POWER SEAT) & SEAT = TYPE B-*104,MD. CHARCOL,TRIM1#
sub72805-50240
sub72805-50250
main72805-50240-C2i200103-200307
W(REAR POWER SEAT) & SEAT = TYPE B-*104,BLACK,TRIM2#
sub72805-50240
sub72805-50250
main72805-50270-C3i200008-200307
SEAT = TYPE A-*104,BLACK,TRIM2#
main72805-50270-C6i200307-200608
W(REAR POWER SEAT) & SEAT = TYPE B-*104,BLACK,BLACK,TRIM2#
main72805-50290-A2i200008-200307
W(REAR POWER SEAT) & SEAT = TYPE C-*104,ECRU,TRIM03
sub72805-50240
sub72805-50250
main72805-50290-A2i200008-200103
W(REAR POWER SEAT) & SEAT = TYPE B-*104,ECRU,TRIM03
sub72805-50240
sub72805-50250
main72805-50290-A3i200008-200103
W(REAR POWER SEAT) & SEAT = TYPE B-*104,IVORY,TRIM04
sub72805-50240
sub72805-50250
main72805-50290-A3i200008-200307
W(REAR POWER SEAT) & SEAT = TYPE C-*104,IVORY,TRIM04
sub72805-50240
sub72805-50250
main72805-50290-B1i200008-200103
W(REAR POWER SEAT) & SEAT = TYPE B-*104,MD.CHARCOAL,TRIM1#
sub72805-50240
sub72805-50250
main72805-50290-B1i200008-200307
W(REAR POWER SEAT) & SEAT = TYPE C-*104,MD.CHARCOAL,TRIM1#
sub72805-50240
sub72805-50250
main72805-50290-C1i200008-200307
W(REAR POWER SEAT) & SEAT = TYPE C-*104,BLACK,TRIM2#
sub72805-50240
sub72805-50250
main72805-50290-C1i200008-200103
W(REAR POWER SEAT) & SEAT = TYPE B-*104,BLACK,TRIM2#
sub72805-50240
sub72805-50250
main72805-50300-A0i200307-200608
SEAT = TYPE A-*104,ECRU,TRIM00
sub72805-50200
sub72805-50210
main72805-50300-A1i200307-200608
SEAT = TYPE A-*104,IVORY,TRIM07
sub72805-50200
sub72805-50210
main72805-50300-C0i200307-200608
SEAT = TYPE A-*104,BLACK,TRIM2#
sub72805-50200
sub72805-50210
main72805-50310-A0i200307-200608
W(REAR POWER SEAT) & SEAT = TYPE A-*104,ECRU,TRIM00
sub72805-50290
main72805-50310-A1i200307-200608
W(REAR POWER SEAT) & SEAT = TYPE A-*104,IVORY,TRIM07
sub72805-50290
main72805-50310-B0i200307-200608
W(REAR POWER SEAT) & SEAT = TYPE A-*104,GRAY,TRIM1#
sub72805-50290
main72805-50310-C0i200307-200608
W(REAR POWER SEAT) & SEAT = TYPE A-*104,BLACK,TRIM2#
sub72805-50290
72830ARMREST ASSY, REAR SEAT, CENTER
main72830-50620-A6i200103-200307
SEAT = TYPE B-*104,IVORY,TRIM04
sub72830-50620
main72830-50620-A7i200103-200307
SEAT = TYPE B-*104,ECRU/ECRU,TRIM03
sub72830-50620
main72830-50620-B2i200103-200307
SEAT = TYPE B-*104,MD. CHARCOL,TRIM1#
sub72830-50620
main72830-50620-C2i200103-200307
SEAT = TYPE B-*104,BLACK,TRIM2#
sub72830-50620
main72830-50630-A4i200008-200103
SEAT = TYPE B-*104,ECRU,TRIM03
sub72830-50620
main72830-50630-A4i200008-200307
SEAT = TYPE C-*104,ECRU,TRIM03
sub72830-50620
main72830-50630-A5i200008-200307
SEAT = TYPE C-*104,IVORY,TRIM04
sub72830-50620
main72830-50630-A5i200008-200103
SEAT = TYPE B-*104,IVORY,TRIM04
sub72830-50620
main72830-50630-B2i200008-200103
SEAT = TYPE B-*104,MD. CHARCOL,TRIM1#
sub72830-50620
main72830-50630-B2i200008-200307
SEAT = TYPE C-*104,MD. CHARCOL,TRIM1#
sub72830-50620
main72830-50630-C2i200008-200103
SEAT = TYPE B-*104,BLACK,TRIM2#
sub72830-50620
main72830-50630-C2i200008-200307
SEAT = TYPE C-*104,BLACK,TRIM2#
sub72830-50620
main72830-50680-A6i200103-200307
W(REAR POWER SEAT) & SEAT = TYPE B-*104,IVORY,TRIM04
sub72830-50680
main72830-50680-A7i200103-200307
W(REAR POWER SEAT) & SEAT = TYPE B-*104,ECRU/ECRU,TRIM03
sub72830-50680
main72830-50680-B2i200103-200307
W(REAR POWER SEAT) & SEAT = TYPE B-*104,MD. CHARCOL,TRIM1#
sub72830-50680
main72830-50680-C2i200103-200307
W(REAR POWER SEAT) & SEAT = TYPE B-*104,BLACK,TRIM2#
sub72830-50680
main72830-50710-C2i200008-200307
SEAT = TYPE A-*104,BLACK,TRIM2#
main72830-50720-A2i200008-200307
W(REAR AIR CONDITIONER) & SEAT = TYPE B-*104,ECRU,TRIM03
main72830-50720-A4i200008-200307
W(REAR AIR CONDITIONER) & SEAT = TYPE B-*104,IVORY,TRIM04
main72830-50720-B1i200008-200307
W(REAR AIR CONDITIONER) & SEAT = TYPE B-*104,MD. CHARCOL,TRIM1#
main72830-50720-C1i200008-200307
W(REAR AIR CONDITIONER) & SEAT = TYPE B-*104,BLACK,TRIM2#
main72830-50840-A4i200008-200103
W(REAR POWER SEAT) & SEAT = TYPE B-*104,ECRU,TRIM03
sub72830-50680
main72830-50840-A4i200008-200307
W(REAR POWER SEAT) & SEAT = TYPE C-*104,ECRU,TRIM03
sub72830-50680
main72830-50840-A5i200008-200103
W(REAR POWER SEAT) & SEAT = TYPE B-*104,IVORY,TRIM04
sub72830-50680
main72830-50840-A5i200008-200307
W(REAR POWER SEAT) & SEAT = TYPE C-*104,IVORY,TRIM04
sub72830-50680
main72830-50840-B2i200008-200307
W(REAR POWER SEAT) & SEAT = TYPE C-*104,MD.CHARCOAL,TRIM1#
sub72830-50680
main72830-50840-B2i200008-200103
W(REAR POWER SEAT) & SEAT = TYPE B-*104,MD.CHARCOAL,TRIM1#
sub72830-50680
main72830-50840-C2i200008-200103
W(REAR POWER SEAT) & SEAT = TYPE B-*104,BLACK,TRIM2#
sub72830-50680
main72830-50840-C2i200008-200307
W(REAR POWER SEAT) & SEAT = TYPE C-*104,BLACK,TRIM2#
sub72830-50680
main72830-50870-A0i200307-200608
SEAT = TYPE A-*104,ECRU,TRIM00
sub72830-50630
main72830-50870-A1i200307-200608
SEAT = TYPE A-*104,IVORY,TRIM07
sub72830-50630
main72830-50870-B0i200307-200608
SEAT = TYPE A-*104,GRAY,TRIM1#
sub72830-50630
main72830-50870-C0i200307-200608
SEAT = TYPE A-*104,BLACK,TRIM2#
sub72830-50630
main72830-50880-A0i200307-200608
SEAT = TYPE A-*104,ECRU,TRIM00
main72830-50880-A1i200307-200608
SEAT = TYPE A-*104,IVORY,TRIM07
main72830-50880-B0i200307-200608
SEAT = TYPE A-*104,GRAY,TRIM1#
main72830-50880-C0i200307-200608
SEAT = TYPE A-*104,BLACK,TRIM2#
main72830-50A00-A0i200307-200608
W(REAR CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE A-*104,ECRU,TRIM00
sub72830-50A10
main72830-50A00-A1i200307-200608
W(REAR CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE A-*104,IVORY,TRIM07
sub72830-50A10
main72830-50A00-B0i200307-200608
W(REAR CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE A-*104,GRAY,TRIM1#
sub72830-50A10
main72830-50A00-C0i200307-200608
W(REAR CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE A-*104,BLACK,TRIM2#
sub72830-50A10
main72830-50A20-C0i200307-200608
W(REAR CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE B-*104,BLACK,BLACK,TRIM2#
main72830-50B10-A0i200307-200608
W(REAR POWER SEAT) & SEAT = TYPE A-*104,ECRU,TRIM00
main72830-50B10-A1i200307-200608
W(REAR POWER SEAT) & SEAT = TYPE A-*104,IVORY,TRIM07
main72830-50B10-B0i200307-200608
W(REAR POWER SEAT) & SEAT = TYPE A-*104,GRAY,TRIM1#
main72830-50B10-C0i200307-200608
W(REAR POWER SEAT) & SEAT = TYPE A-*104,BLACK,TRIM2#
main72830-50B20-C0i200307-200608
W(REAR POWER SEAT) & SEAT = TYPE B-*104,BLACK,BLACK,TRIM2#
72860BOX ASSY, REAR SEAT CENTER ARMREST
main72860-50350-A6i200103-200307
SEAT = TYPE B-*104,IVORY,TRIM04
sub72860-50350
main72860-50350-A7i200103-200307
SEAT = TYPE B-*104,ECRU/ECRU,TRIM03
sub72860-50350
main72860-50350-B2i200103-200307
SEAT = TYPE B-*104,MD. CHARCOL,TRIM1#
sub72860-50350
main72860-50350-C2i200103-200307
SEAT = TYPE B-*104,BLACK,TRIM2#
sub72860-50350
main72860-50360-A4i200008-200307
SEAT = TYPE C-*104,ECRU,TRIM03
sub72860-50350
main72860-50360-A4i200008-200103
SEAT = TYPE B-*104,ECRU,TRIM03
sub72860-50350
main72860-50360-A5i200008-200103
SEAT = TYPE B-*104,IVORY,TRIM04
sub72860-50350
main72860-50360-A5i200008-200307
SEAT = TYPE C-*104,IVORY,TRIM04
sub72860-50350
main72860-50360-B2i200008-200103
SEAT = TYPE B-*104,MD. CHARCOL,TRIM1#
sub72860-50350
main72860-50360-B2i200008-200307
SEAT = TYPE C-*104,MD. CHARCOL,TRIM1#
sub72860-50350
main72860-50360-C2i200008-200103
SEAT = TYPE B-*104,BLACK,TRIM2#
sub72860-50350
main72860-50360-C2i200008-200307
SEAT = TYPE C-*104,BLACK,TRIM2#
sub72860-50350
main72860-50390-C2i200008-200307
SEAT = TYPE A-*104,BLACK,TRIM2#
main72860-50410-A2i200008-200307
W(REAR AIR CONDITIONER) &SEAT TYPE B-*104,ECRU,TRIM03
main72860-50410-A4i200008-200307
W(REAR AIR CONDITIONER) &SEAT TYPE B-*104,IVORY,TRIM04
main72860-50410-B1i200008-200307
W(REAR AIR CONDITIONER) &SEAT TYPE B-*104,MD. CHARCOL,TRIM1#
main72860-50410-C1i200008-200307
W(REAR AIR CONDITIONER) &SEAT TYPE B-*104,BLACK,TRIM2#
main72860-50470-A6i200103-200307
W(REAR POWER SEAT) & SEAT = TYPE B-*104,IVORY,TRIM04
sub72860-50470
main72860-50470-A7i200103-200307
W(REAR POWER SEAT) & SEAT = TYPE B-*104,ECRU/ECRU,TRIM03
sub72860-50470
main72860-50470-B2i200103-200307
W(REAR POWER SEAT) & SEAT = TYPE B-*104,MD. CHARCOL,TRIM1#
sub72860-50470
main72860-50470-C2i200103-200307
W(REAR POWER SEAT) & SEAT = TYPE B-*104,BLACK,TRIM2#
sub72860-50470
main72860-50570-A2i200008-200307
W(REAR POWER SEAT) & SEAT = TYPE C-*104,ECRU,TRIM03
sub72860-50470
main72860-50570-A2i200008-200103
W(REAR POWER SEAT) & SEAT = TYPE B-*104,ECRU,TRIM03
sub72860-50470
main72860-50570-A3i200008-200307
W(REAR POWER SEAT) & SEAT = TYPE C-*104,IVORY,TRIM04
sub72860-50470
main72860-50570-A3i200008-200103
W(REAR POWER SEAT) & SEAT = TYPE B-*104,IVORY,TRIM04
sub72860-50470
main72860-50570-B1i200008-200307
W(REAR POWER SEAT) & SEAT = TYPE C-*104,MD.CHARCOAL,TRIM1#
sub72860-50470
main72860-50570-B1i200008-200103
W(REAR POWER SEAT) & SEAT = TYPE B-*104,MD.CHARCOAL,TRIM1#
sub72860-50470
main72860-50570-C1i200008-200307
W(REAR POWER SEAT) & SEAT = TYPE C-*104,BLACK,TRIM2#
sub72860-50470
main72860-50570-C1i200008-200103
W(REAR POWER SEAT) & SEAT = TYPE B-*104,BLACK,TRIM2#
sub72860-50470
main72860-50580-A0i200307-200608
SEAT = TYPE A-*104,ECRU,TRIM00
sub72860-50360
main72860-50580-A1i200307-200608
SEAT = TYPE A-*104,IVORY,TRIM07
sub72860-50360
main72860-50580-B0i200307-200608
SEAT = TYPE A-*104,GRAY,TRIM1#
sub72860-50360
main72860-50580-C0i200307-200608
SEAT = TYPE A-*104,BLACK,TRIM2#
sub72860-50360
main72860-50590-A0i200307-200608
SEAT = TYPE A-*104,ECRU,TRIM00
main72860-50590-A1i200307-200608
SEAT = TYPE A-*104,IVORY,TRIM07
main72860-50590-B0i200307-200608
SEAT = TYPE A-*104,GRAY,TRIM1#
main72860-50590-C0i200307-200608
SEAT = TYPE A-*104,BLACK,TRIM2#
main72860-50610-A0i200307-200608
W(REAR CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE A-*104,ECRU,TRIM00
sub72860-50620
main72860-50610-A1i200307-200608
W(REAR CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE A-*104,IVORY,TRIM07
sub72860-50620
main72860-50610-B0i200307-200608
W(REAR CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE A-*104,GRAY,TRIM1#
sub72860-50620
main72860-50610-C0i200307-200608
W(REAR CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE A-*104,BLACK,TRIM2#
sub72860-50620
main72860-50630-C0i200307-200608
W(REAR CLIMATE CONTROL SEAT & REAR POWER SEAT) & SEAT = TYPE B-*104,BLACK,BLACK,TRIM2#
main72860-50720-A0i200307-200608
W(REAR POWER SEAT) & SEAT = TYPE A-*104,ECRU,TRIM00
main72860-50720-A1i200307-200608
W(REAR POWER SEAT) & SEAT = TYPE A-*104,IVORY,TRIM07
main72860-50720-B0i200307-200608
W(REAR POWER SEAT) & SEAT = TYPE A-*104,GRAY,TRIM1#
main72860-50720-C0i200307-200608
W(REAR POWER SEAT) & SEAT = TYPE A-*104,BLACK,TRIM2#
main72860-50730-C0i200307-200608
W(REAR POWER SEAT) & SEAT = TYPE B-*104,BLACK,BLACK,TRIM2#
72868COVER, CENTER ARMREST HINGE, RH
main72868-50080-A2i200008-200307
IVORY,TRIM04
sub72868-50080
main72868-50080-A3i200307-200608
ECRU,TRIM00
sub72868-50080
main72868-50080-A3i200008-200307
ECRU,TRIM03
sub72868-50080
main72868-50080-A4i200307-200608
NEW IVORY,TRIM01,07
sub72868-50080
main72868-50080-B1i200008-200307
MD.CHARCOAL,TRIM1#
sub72868-50080
main72868-50080-B2i200307-200608
NEW GRAY,TRIM1#
sub72868-50080
main72868-50080-C1i200307-200608
BLACK,TRIM20,21,24
sub72868-50080
main72868-50080-C1i200008-200307
BLACK,TRIM2#
sub72868-50080
main72868-50090-A2i200008-200307
W(REAR POWER SEAT),IVORY,TRIM04
main72868-50090-A3i200008-200307
W(REAR POWER SEAT),ECRU,TRIM03
main72868-50090-A3i200307-200608
W(REAR POWER SEAT),ECRU,TRIM00
main72868-50090-A4i200307-200608
W(REAR POWER SEAT),NEW IVORY,TRIM07
main72868-50090-B1i200008-200307
W(REAR POWER SEAT),MD.CHARCOAL,TRIM1#
main72868-50090-B2i200307-200608
W(REAR POWER SEAT),NEW GRAY,TRIM1#
main72868-50090-C1i200008-200307
W(REAR POWER SEAT),BLACK,TRIM2#
main72868-50090-C1i200307-200608
W(REAR POWER SEAT),BLACK,TRIM21,24
72869COVER, CENTER ARMREST HINGE, LH
main72869-50060-A2i200008-200307
IVORY,TRIM04
sub72869-50060
main72869-50060-A3i200008-200307
ECRU,TRIM03
sub72869-50060
main72869-50060-A3i200307-200608
ECRU,TRIM00
sub72869-50060
main72869-50060-A4i200307-200608
NEW IVORY,TRIM01,07
sub72869-50060
main72869-50060-B1i200008-200307
MD.CHARCOAL,TRIM1#
sub72869-50060
main72869-50060-B2i200307-200608
NEW GRAY,TRIM1#
sub72869-50060
main72869-50060-C1i200307-200608
BLACK,TRIM20,21,24
sub72869-50060
main72869-50060-C1i200008-200307
BLACK,TRIM2#
sub72869-50060
main72869-50070-A2i200008-200307
W(REAR POWER SEAT),IVORY,TRIM04
main72869-50070-A3i200008-200307
W(REAR POWER SEAT),ECRU,TRIM03
main72869-50070-A3i200307-200608
W(REAR POWER SEAT),ECRU,TRIM00
main72869-50070-A4i200307-200608
W(REAR POWER SEAT),NEW IVORY,TRIM07
main72869-50070-B1i200008-200307
W(REAR POWER SEAT),MD.CHARCOAL,TRIM1#
main72869-50070-B2i200307-200608
W(REAR POWER SEAT),NEW GRAY,TRIM1#
main72869-50070-C1i200008-200307
W(REAR POWER SEAT),BLACK,TRIM2#
main72869-50070-C1i200307-200608
W(REAR POWER SEAT),BLACK,TRIM21,24
72996COVER, REAR SEATBACK, RH
main72996-50100-A0i200008-200307
IVORY,TRIM04
sub72996-50100
main72996-50100-A1i200008-200307
ECRU,TRIM03
sub72996-50100
main72996-50100-A1i200307-200608
ECRU,TRIM00
sub72996-50100
main72996-50100-A2i200307-200608
NEW IVORY,TRIM01,07
sub72996-50100
main72996-50100-B0i200008-200307
MD.CHARCOAL,TRIM1#
sub72996-50100
main72996-50100-B1i200307-200608
GRAY,TRIM1#
sub72996-50100
main72996-50100-C0i200307-200608
BLACK,TRIM20,21,24
sub72996-50100
main72996-50100-C0i200008-200307
BLACK,TRIM2#
sub72996-50100
72997COVER, REAR SEATBACK, LH
main72996-50100-A0i200008-200307
IVORY,TRIM04
sub72996-50100
main72996-50100-A1i200008-200307
ECRU,TRIM03
sub72996-50100
main72996-50100-A1i200307-200608
ECRU,TRIM00
sub72996-50100
main72996-50100-A2i200307-200608
NEW IVORY,TRIM01,07
sub72996-50100
main72996-50100-B0i200008-200307
MD.CHARCOAL,TRIM1#
sub72996-50100
main72996-50100-B1i200307-200608
GRAY,TRIM1#
sub72996-50100
main72996-50100-C0i200008-200307
BLACK,TRIM2#
sub72996-50100
main72996-50100-C0i200307-200608
BLACK,TRIM20,21,24
sub72996-50100
87501DCONTROL SUB-ASSY, SEAT HEATER
main87501-50020i200008-200307
9017604015
main90176-04015
9017906129
main90179-06129
9046816019
main90468-16019
9163560616
main91635-60616
9326016025
main93260-16025
9331314012
main93313-14012

33 parts on this diagram · 5 diagrams in section

REAR SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
