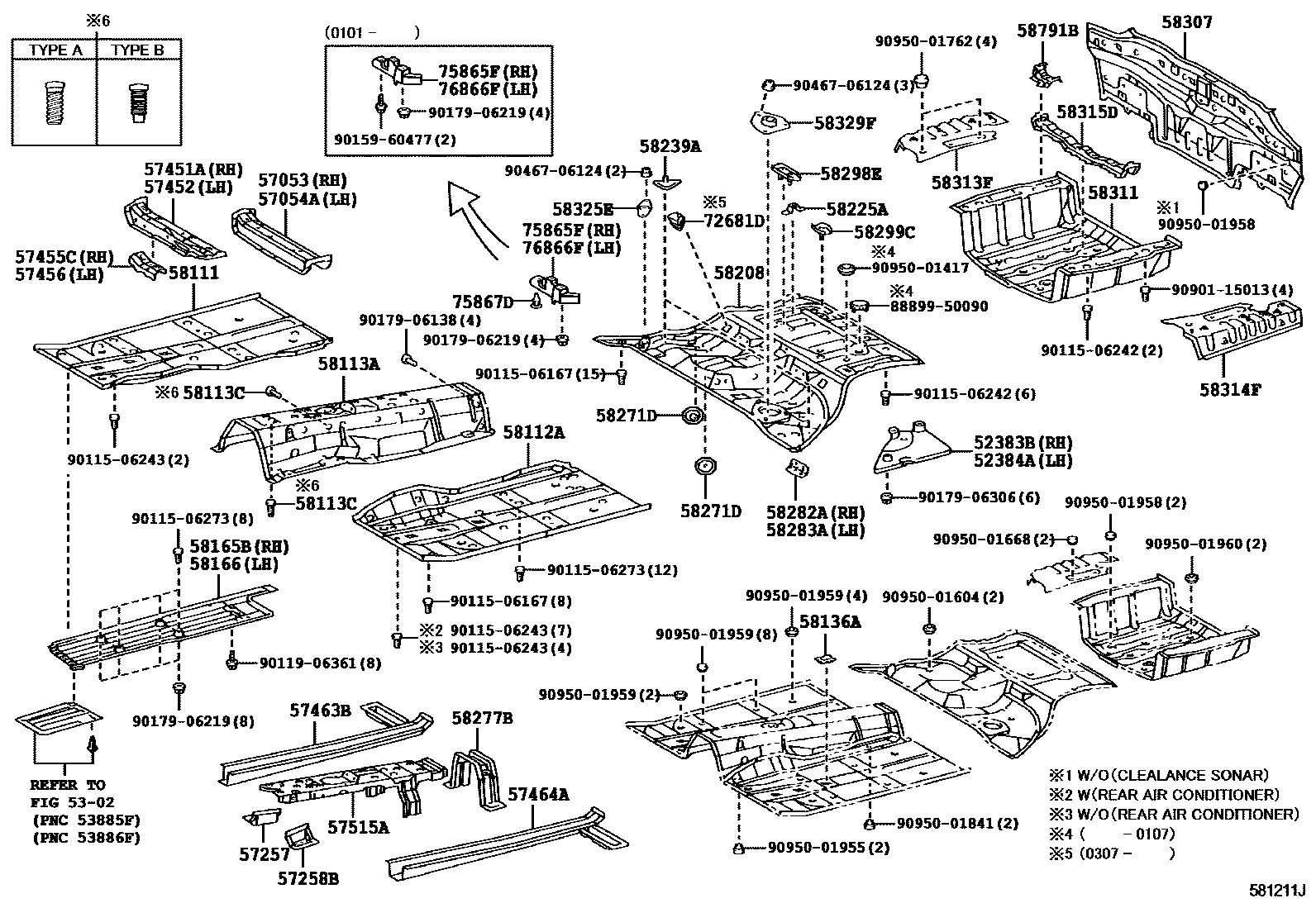

FLOOR PAN & LOWER BACK PANEL
52383BPROTECTOR, DIFFERENTIAL SUPPORT, NO.1
52384APROTECTOR, DIFFERENTIAL SUPPORT, NO.2
5302
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57257BRACKET, ENGINE REAR SUPPORT MEMBER
57258BBRACKET, ENGINE REAR MOUNTING MEMBER, LH
57451AMEMBER, FRONT FLOOR CROSS, RH
57452MEMBER, FRONT FLOOR CROSS, LH
57455CBRACKET, FRONT SEAT MOUNTING, OUTSIDE RH
57456BRACKET, FRONT SEAT MOUNTING, OUTSIDE LH
57463BREINFORCEMENT, CENTER FLOOR CROSSMEMBER, RH
57464AREINFORCEMENT, CENTER FLOOR CROSSMEMBER, LH
57515AREINFORCEMENT, FRONT FLOOR, CENTER
58111PAN, FRONT FLOOR
58112APANEL, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58113CBOLT, WELD(FOR FRONT FLOOR PANEL, CENTER)
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
58136ACOVER, FRONT FLOOR SERVICE HOLE
58165BCOVER, FRONT FLOOR, RH
58166COVER, FRONT FLOOR, LH
58208PAN, CENTER FLOOR
W(REAR AIR CONDITIONER)
W(REAR AIR CONDITIONER & REAR POWER SEAT)
W(CLIMATE CONTROL SEAT & REAR AIR CONDITIONER & REAR POWER SEAT)
58225ABRACKET, CENTER MOUNTING
58239APLATE, BELT ANCHOR NUT
58271DREINFORCEMENT, BELT ANCHOR TO FLOOR PAN, NO.3
58277BREINFORCEMENT, DRIVE SHAFT CENTER SUPPORT
58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH
58283AREINFORCEMENT, NO.2 SEAT, FRONT LH
58298EBRACKET, HOT AIR INTAKE, NO.1
58299CBRACKET, HOT AIR INTAKE, NO.2
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58313FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, RH
58314FEXTENSION, REAR FLOOR PAN TO QUARTER PANEL, LH
58315DEXTENSION, REAR FLOOR PAN, RH
58325ECOVER, REAR FLOOR SERVICE HOLE
58329FCOVER, REAR FLOOR SERVICE HOLE, NO.2
58791BCARRIER, JACK
72681DHOOK, REAR SEATBACK LOCK, LOWER
75865FPROTECTOR, ROCKER PANEL MOULDING, NO.5
75867DCLIP, ROCKER PANEL MOULDING
76866FPROTECTOR, ROCKER PANEL MOULDING, NO.6
8889950090COVER, EVAPORATOR
main88899-50090
9011506167
9011506242
9011506243
9011506273
9011906361
9015960477
9017906138
9017906219
9017906306
9046706124
9090115013
9095001417
9095001604
9095001668
9095001762
9095001841
9095001955
9095001958
9095001959
9095001960
63 parts on this diagram · 1 diagram in section
