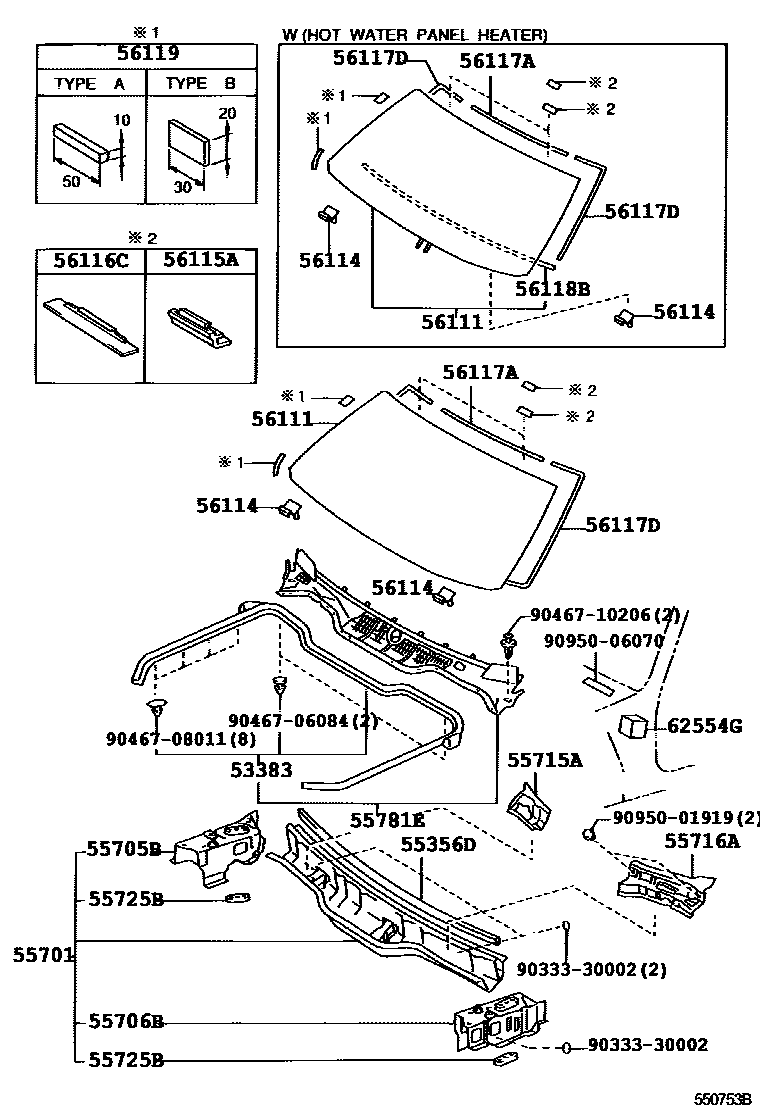

COWL PANEL & WINDSHIELD GLASS

0001 1 0002 1

53383SEAL, HOOD TO COWL TOP

main53383-50040iUCF30..LHD200008-200307

main53383-50050iUCF30..RHD200008-200307

55356DCUSHION, INSTRUMENT PANEL, NO.2

main55356-50010iUCF30200008-200307

RH

main55358-50030iUCF30200008-200307

LH

55701PANEL SUB-ASSY, COWL

main55700-50110iUCF30..LHD200008-200608

main55700-50120iUCF30..LHD..EUR200008-200608

W(HOT WATER PANEL HEATER)

main55700-50150iUCF30..RHD200008-200608

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-50030iUCF30200008-200307

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-50030iUCF30200008-200307

55715ABRACE, COWL TOP TO APRON, RH

main55715-50050iUCF30..LHD200008-200608

main55715-50060iUCF30..RHD200008-200608

55716ABRACE, COWL TOP TO APRON, LH

main55716-50050iUCF30..LHD200008-200608

main55716-50060iUCF30..RHD200008-200608

55725BREINFORCEMENT, HOOD HINGE MOUNTING

main55725-22010iUCF30200008-200307

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-50020iUCF30..LHD..EUR200008-200307

main55708-50030iUCF30..GCC200008-200307

main55708-50040iUCF30..RHD200008-200307

56111GLASS, WINDSHIELD

main56101-50220iUCF30..LHD..EUR200008-200301

*SERL,T=5.3,GREEN,W(HOT WATER PANEL HEATER & RAIN SENSOR)

main56101-50230iUCF30..RHD200008-200307

*SERL,T=5.3,GREEN

sub56101-50231

main56101-50240iUCF30..LHD200008-200301

*SERL,T=5.3,GREEN,W(RAIN SENSOR)

main56101-50290iUCF30..LHD..EUR200301-200307

*SERL,T=5.3,GREEN,W(HOT WATER PANEL HEATER & RAIN SENSOR)

sub56101-50291

main56101-50310iUCF30..LHD200301-200307

*SERL,T=5.3,GREEN,W(RAIN SENSOR)

sub56101-50311

main56111-50240iUCF30..GCC200008-200307

*SERL,T=5.3,GREEN

sub56111-50241

56114RETAINER, WINDSHIELD GLASS

main56114-50020iUCF30200008-200307

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iUCF30200008-200307

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iUCF30200008-200307

56117ADAM, WINDOW GLASS ADHESIVE

main56117-30280iUCF30200008-200307

*D,L=900

sub64813-52010

main64813-52010iUCF30200307-200608

*D,L=621

sub56117-50140

56117DDAM, WINDSHIELD GLASS ADHESIVE

main56117-44030iUCF30200307-200608

*D,L=3364

main56117-50090iUCF30..LHD..EUR200008-200608

*D,L=900,W(HOT WATER PANEL HEATER)

sub56117-30280

main56117-50110iUCF30200008-200307

*D,L=3364

sub56117-44030

56118BDAM, WINDOW GLASS ADHESIVE, NO.2

main56117-50110iUCF30200008-200307

sub56117-44030

main56117-50110iUCF30..LHD..EUR200307

*D,L=1510

sub56117-44030

56119SEAL, WINDSHIELD GLASS

main56119-50030iUCF30200008-200307

TYPE A:REFER TO ILLUSTRATION

main56119-50040iUCF30200008-200201

TYPE B:REFER TO ILLUSTRATION

62554GPAD, PILLAR, NO.4

main62554-30010iUCF30200008-200307

9033330002

main90333-30002

9046706084

main90467-06084

9046708011

main90467-08011

9046710206

main90467-10206

9095001919

main90950-01919

9095006070

main90950-06070

24 parts on this diagram · 2 diagrams in section
