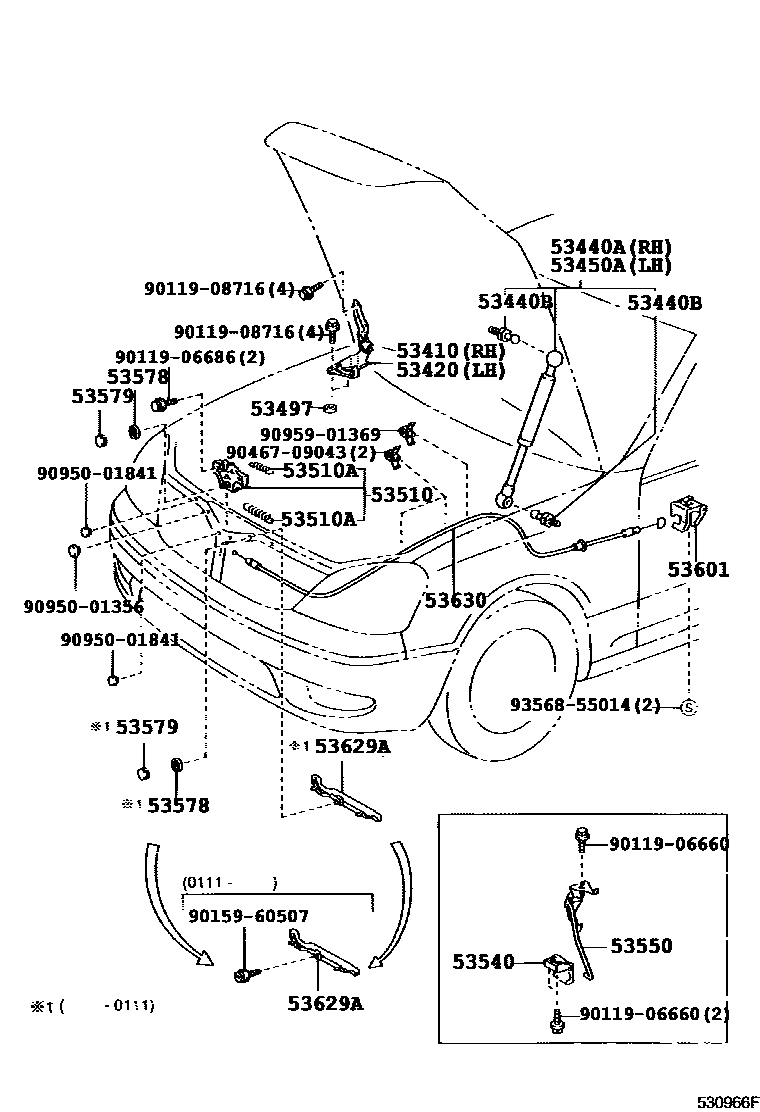

HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53440BBOLT, HOOD SUPPORT, NO.1
53497PAD, HOOD HINGE, NO.1
T=2.0
T=1.0
T=2.0
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=20.5
WD=1.8,CW=18
53540LEVER ASSY, AUXILIARY CATCH RELEASE
53578NUT, HOOD LOCK
53579CAP, HOOD LOCK NUT
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
IVORY,TRIM04
ECRU,TRIM00
NEW IVORY,TRIM07
MD.CHARCOAL,TRIM1#
NEW GRAY,TRIM1#
BLACK,TRIM21,24
53630CABLE ASSY, HOOD LOCK CONTROL
9011906660
main90119-06660
9011906686
main90119-06686
9011908716
main90119-08716
9015960507
main90159-60507
9046709043
main90467-09043
9095001356
main90950-01356
9095001841
main90950-01841
9095901369
main90959-01369
9356855014
main93568-55014
24 parts on this diagram · 2 diagrams in section
