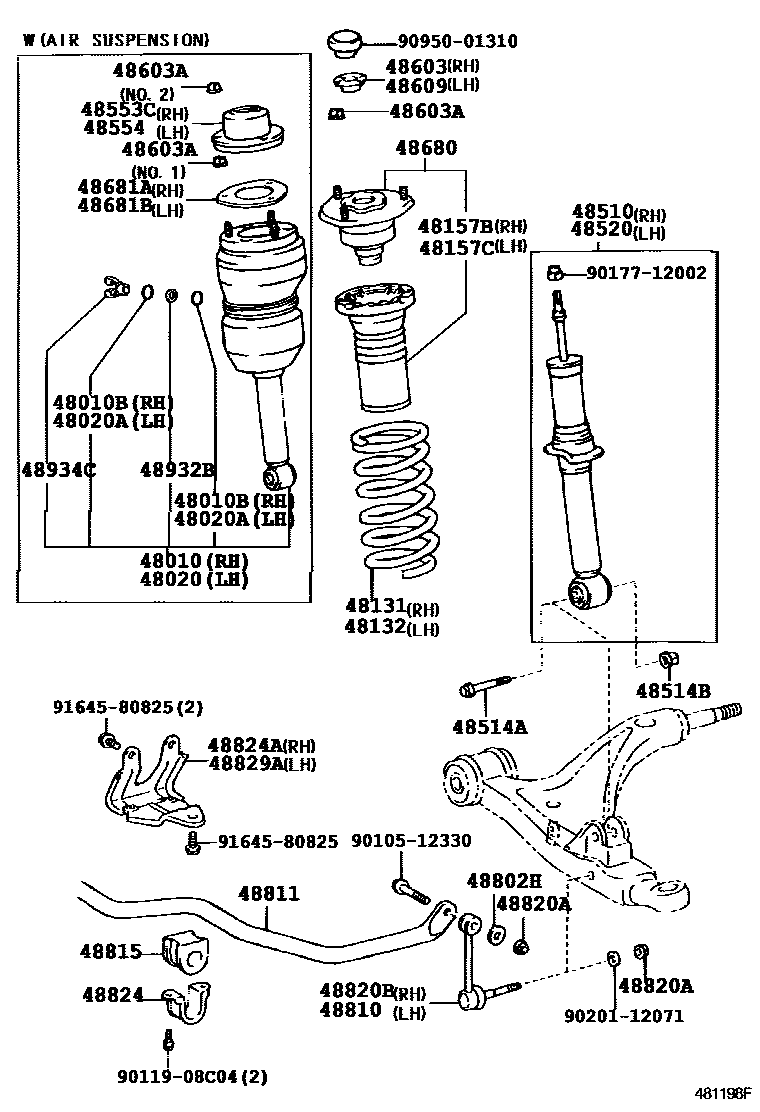

FRONT SPRING & SHOCK ABSORBER
48010CYLINDER ASSY, PNEUMATIC, FRONT RH W/SHOCK ABSORBER
48010BRING, O(FOR FRONT PNEUMATIC CYLINDER RH)
48020CYLINDER ASSY, PNEUMATIC, FRONT LH W/SHOCK ABSORBER
48020ARING, O(FOR FRONT PNEUMATIC CYLINDER LH)
48131SPRING, FRONT COIL, RH
ROUGH ROAD PACKAGE
SOUTH AMERICA SPEC
ROUGH ROAD SPEC
SOUTH AMERICA SPEC
48132SPRING, FRONT COIL, LH
ROUGH ROAD PACKAGE
SOUTH AMERICA SPEC
ROUGH ROAD SPEC
SOUTH AMERICA SPEC
48157BINSULATOR, FRONT COIL SPRING, UPPER RH
48157CINSULATOR, FRONT COIL SPRING, UPPER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-50150
MARK 48510-50200
48514ABOLT(FOR FRONT SHOCK ABSORBER BRACKET LOWER)
48514BNUT(FOR FRONT SHOCK ABSORBER BRACKET LOWER)
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48510-50150
MARK 48510-50200
48553CCAP, FRONT SHOCK ABSORBER, RH
sub48553-50130
48554CAP, FRONT SHOCK ABSORBER, LH
sub48553-50130
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
W(AIR SUSPENSION),NO.1
NO.1
NO.2
W(AIR SUSPENSION),NO.2
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48680SUPPORT ASSY, FRONT SUSPENSION
48681AGASKET, FRONT SUSPENSION SUPPORT, RH
48681BGASKET, FRONT SUSPENSION SUPPORT, LH
48802HSPACER(FOR FRONT STABILIZER BAR LINK)
48810LINK ASSY, FRONT STABILIZER, LH
48820ANUT(FOR FRONT STABILIZER LINK)
48820BLINK ASSY, FRONT STABILIZER, RH
48824BRACKET, STABILIZER, FRONT
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
48932BPLATE, HEIGHT CONTROL TUBE
48934CCONNECTOR, HEIGHT CONTROL TUBE
9010512330
main90105-12330
9011908C04
main90119-08C04
9017712002
main90177-12002
9020112071
main90201-12071
9095001310
main90950-01310
9164580825
main91645-80825
37 parts on this diagram · 1 diagram in section
