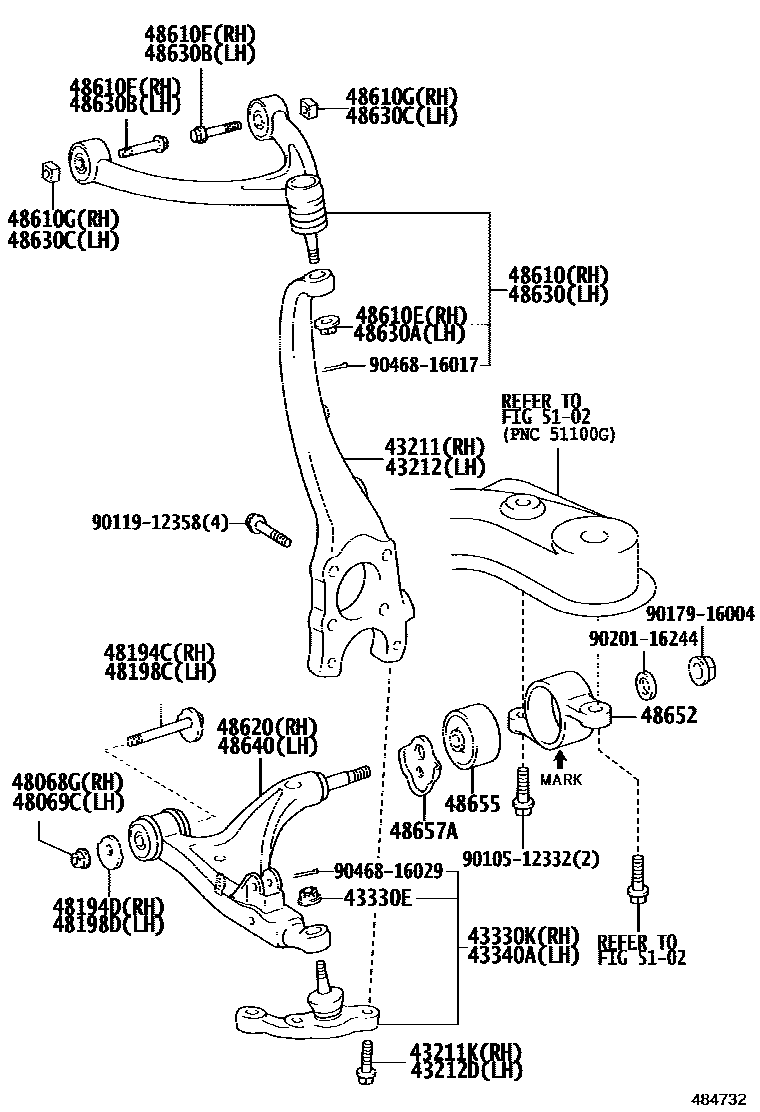

FRONT AXLE ARM & STEERING KNUCKLE

43211KNUCKLE, STEERING, RH

main43201-50010iUCF30200008-200301

sub43201-50020

main43201-50020iUCF30200301-200307

43211KBOLT (FOR STEERING KNUCKLE RH)

main90105-16083iUCF30200008-200307

OD=16

43212KNUCKLE, STEERING, LH

main43202-50010iUCF30200008-200301

sub43202-50020

main43202-50020iUCF30200301-200307

43212DBOLT (FOR STEERING KNUCKLE LH)

main90105-16083iUCF30200008-200307

OD=16

43330ENUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)

main90171-14011iUCF30200008-200307

43330KJOINT ASSY, LOWER BALL, FRONT RH

main43330-59075iUCF30200008-200307

sub43330-59115

main43330-59125iUCF30200307

43340AJOINT ASSY, LOWER BALL, FRONT LH

main43340-59075iUCF30200008-200307

sub43340-59115

main43340-59125iUCF30200307

48068GNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)

main90179-14019iUCF30200008-200307

48069CNUT(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)

main90179-14019iUCF30200008-200307

48194CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 RH

main48190-50050iUCF30200008-200307

48194DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 RH

main48198-30060iUCF30200008-200307

48198CCAM, FRONT SUSPENSION CAMBER ADJUST, NO.1 LH

main48190-50050iUCF30200008-200307

48198DCAM, FRONT SUSPENSION CAMBER ADJUST, NO.2 LH

main48198-30060iUCF30200008-200307

48610ARM ASSY, FRONT SUSPENSION UPPER, RH

main48610-59045iUCF30200008-200307

48610ENUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM RH)

main90171-12012iUCF30200008-200307

48610FBOLT(FOR FRONT SUSPENSION UPPER ARM RH)

main90119-10853iUCF30200008-200311

main91672-G1070iUCF30200311

48610GNUT(FOR FRONT SUSPENSION UPPER ARM RH)

main90173-10012iUCF30200008-200307

48620ARM ASSY, FRONT SUSPENSION, LOWER RH

main48620-50050iUCF30200008-200307

48630ARM ASSY, FRONT SUSPENSION, UPPER LH

main48630-59045iUCF30200008-200307

48630ANUT, CASTLE(FOR FRONT SUSPENSION UPPER ARM LH)

main90171-12012iUCF30200008-200307

48630BBOLT(FOR FRONT SUSPENSION UPPER ARM LH)

main90119-10853iUCF30200008-200311

main91672-G1070iUCF30200311

48630CNUT(FOR FRONT SUSPENSION UPPER ARM LH)

main90173-10012iUCF30200008-200307

48640ARM ASSY, FRONT SUSPENSION LOWER, LH

main48640-50050iUCF30200008-200307

48652BRACKET, FRONT LOWER ARM

main48652-50030iUCF30200008-200307

NO MARK

main48652-50040iUCF30200008-200307

WHITE MARK

main48652-50050iUCF30200008-200307

PINK MARK

48655BUSH, LOWER ARM, NO.2

main48655-50010iUCF30200008-200011

sub48655-50011

main48655-50011iUCF30200011-200312

sub48655-50012

main48655-50012iUCF30200312

48657ASTOPPER, FRONT LOWER ARM BUSH

main48657-50010iUCF30200008-200307

5102

9010512332

main90105-12332

9011912358

main90119-12358

9017916004

main90179-16004

9020116244

main90201-16244

9046816017

main90468-16017

9046816029

main90468-16029

33 parts on this diagram · 1 diagram in section
