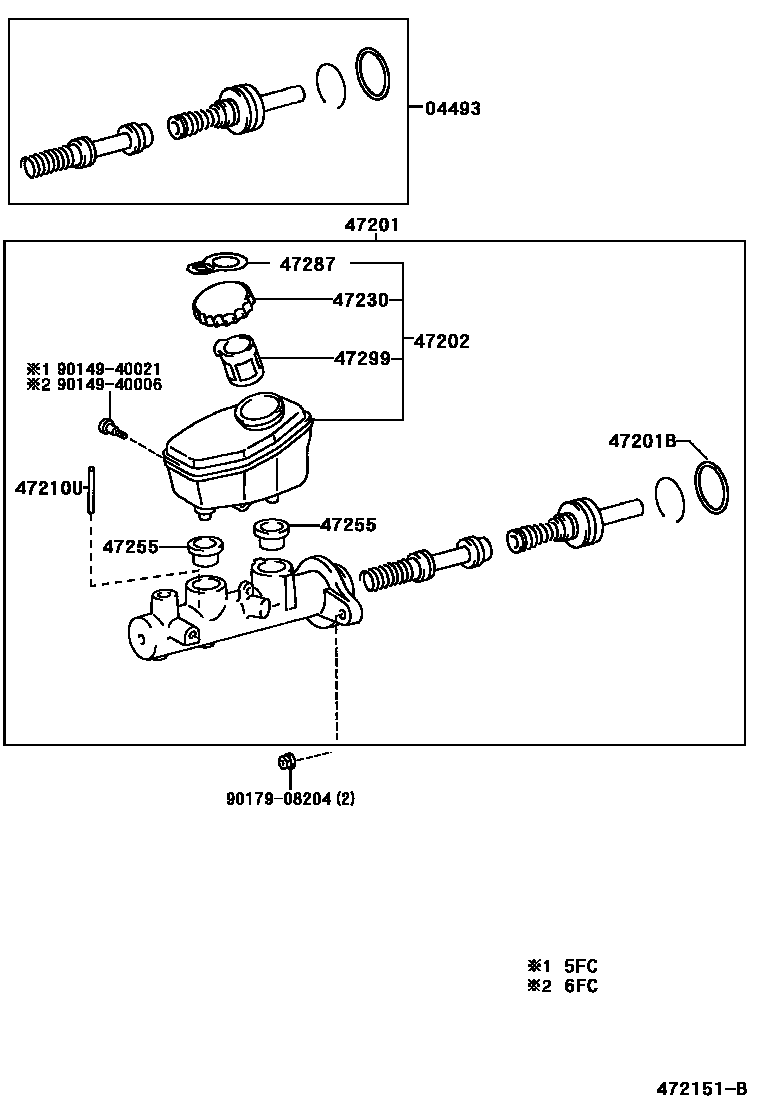

BRAKE MASTER CYLINDER

0001 1 0002 1TAIWAN SPEC

04493CYLINDER KIT, BRAKE MASTER

main04493-2A020iUCF30200307

main04493-30290iUCF30200008-200307

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-50250iUCF30..LHD..EUR200008-200307

TAIWAN SPEC

main47201-50260iUCF30..LHD200008-200307

main47201-50270iUCF30..RHD..EUR200008-200307

HONG KONG OR SINGAPORE SPEC

main47201-50280iUCF30..RHD200008-200307

main47201-50290iUCF30..LHD..EUR200307

TAIWAN SPEC

main47201-50300iUCF30..LHD200307

main47201-50310iUCF30..RHD200307

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90029-20059iUCF30200008-200307

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-30150iUCF30..RHD..EUR200008-200307

HONG KONG OR SINGAPORE SPEC

main47220-50140iUCF30..LHD200008-200307

main47220-50150iUCF30..RHD200008-200307

main47220-50160iUCF30..LHD..EUR200008-200307

TAIWAN SPEC

main47220-50170iUCF30..LHD..EUR200307

TAIWAN SPEC

main47220-50180iUCF30..LHD200307

main47220-50190iUCF30..RHD200307

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90029-14204iUCF30200008-200307

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20100iUCF30200008-200307

sub47230-47090

main47230-24010iUCF30..EUR200008-200307

HONG KONG OR SINGAPORE OR TAIWAN SPEC

sub47230-47090

main47230-24010iUCF30200307

sub47230-47090

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iUCF30200008-200307

47287LABEL, BRAKE FLUID INFORMATION

main47287-20010iUCF30200008-200307

main47287-20020iUCF30200307

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iUCF30200008-200307

9014940006

main90149-40006

9014940021

main90149-40021

9017908204

main90179-08204

12 parts on this diagram · 2 diagrams in section
