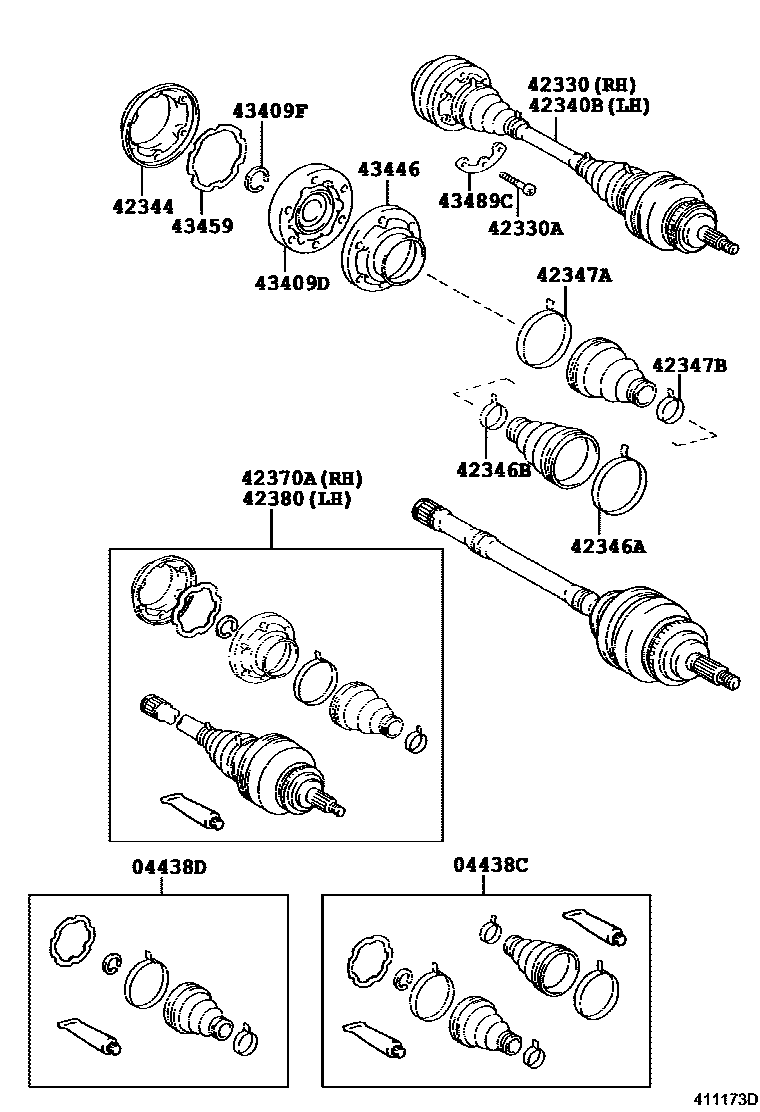

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

04438CBOOT KIT, REAR DRIVE SHAFT

main04437-53040iUCF30¥10,800200008-200307

sub04437-24041¥10,800

04438DBOOT KIT, REAR DRIVE SHAFT INBOARD JOINT

main04437-53030iUCF30¥6,700200008-200307

sub04437-24031¥6,700

42330SHAFT ASSY, REAR DRIVE, RH

main42330-50050iUCF30¥61,700200008-200307

main42330-50060iUCF30¥61,800200307-200608

42330ABOLT(FOR REAR DRIVE SHAFT)

main90110-12003iUCF30¥300200008-200307

*12-1.25PX53-28

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-50050iUCF30¥59,100200008-200307

main42340-50060iUCF30¥59,200200307

42344COVER, REAR AXLE INBOARD JOINT END

main42344-50011iUCF30¥750200008-200307

42346ACLAMP (FOR REAR DRIVE SHAFT OUTBOARD JOINT BOOT)

main90949-01838iUCF30¥530200008-200307

42346BCLAMP, NO. 2 (FOR RR DRIVE SHAFT OUTBOARD JOINT BOOT)

main90949-01837iUCF30¥450200008-200307

42347ACLAMP (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main90949-01838iUCF30¥530200008-200307

42347BCLAMP, NO.2 (FOR REAR DRIVE SHAFT INBOARD JOINT BOOT)

main90949-01837iUCF30¥450200008-200307

42370ASHAFT ASSY, REAR DRIVE OUTBOARD JOINT, RH

main42370-59060iUCF30¥54,500200008-200307

sub42370-59065¥54,500

42380SHAFT ASSY, REAR DRIVE OUTBOARD JOINT, LH

main42380-59060iUCF30¥54,500200008-200307

sub42380-59065¥54,500

43409DJOINT SUB-ASSY, REAR DRIVE SHAFT CROSS GROOVE

main43409-24010iUCF30¥29,700200008-200307

43409FRING, SNAP (FOR REAR DRIVE SHAFT CROSS GROOVE JOINT)

main90520-26028iUCF30¥110200008-200307

43446COVER, REAR AXLE INBOARD JOINT

main43446-24020iUCF30¥1,240200008-200307

43459GASKET, REAR AXLE INBOARD JOINT END COVER

main43459-50011iUCF30¥340200008-200307

43489CWASHER, REAR DRIVE SHAFT

main43489-50010iUCF30¥650200008-200307

17 parts on this diagram · 3 diagrams in section
