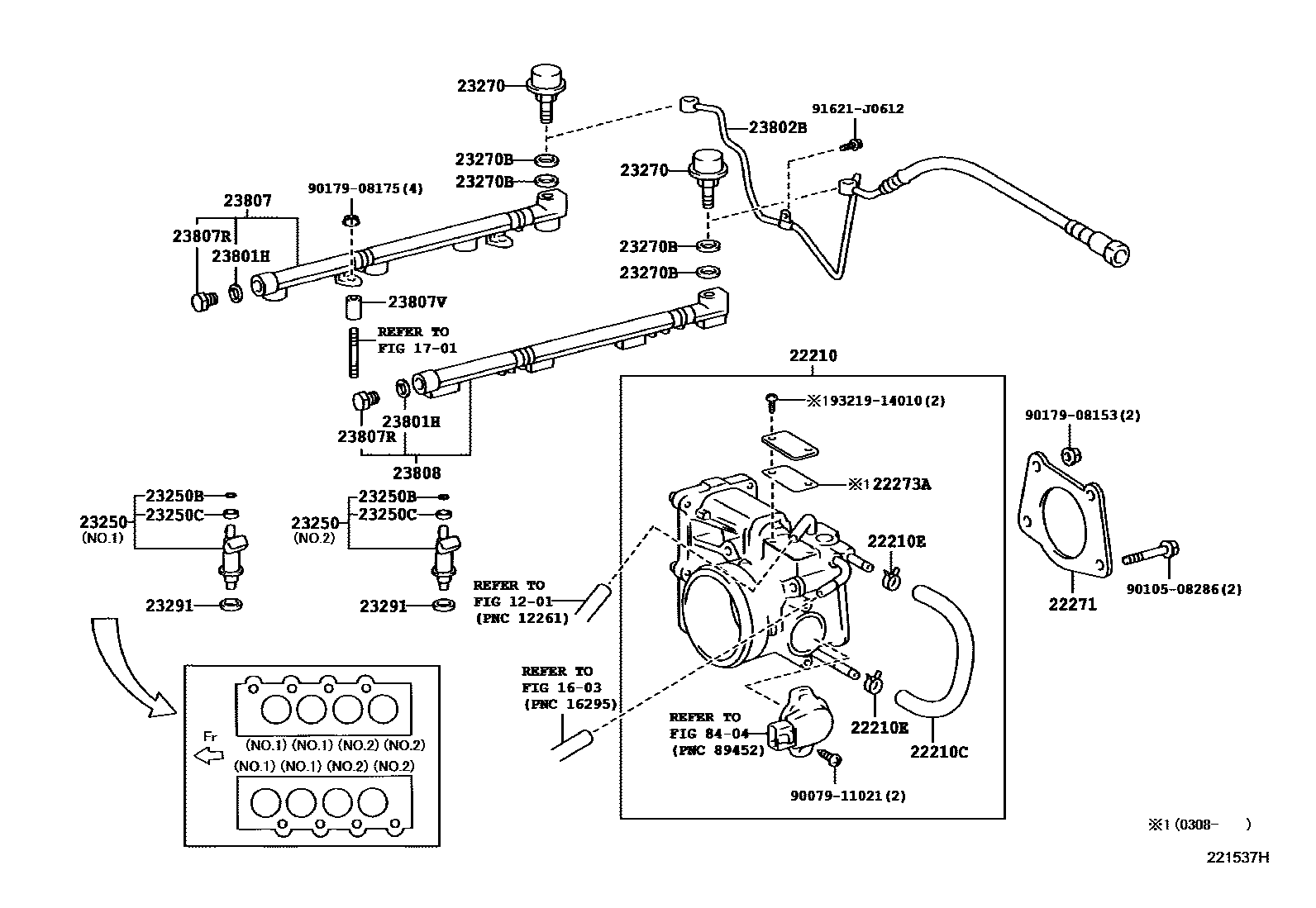

FUEL INJECTION SYSTEM
1201
1603
1701
22210CHOSE, WATER BY-PASS, NO.1
*H,L=210
22271GASKET, THROTTLE BODY
22273AGASKET, THROTTLE BODY, NO.2
23250INJECTOR ASSY, FUEL
NO.1
NO.2
NO.2
23250BRING, O(FOR FUEL INJECTOR)
INTAKE MANIFOLD SIDE
INTAKE MANIFOJD SIDE
DELIVERY PIPE SIDE
23250CGROMMET(FOR FUEL INJECTOR)
23270DAMPER ASSY, FUEL PRESSURE PULSATION
sub23270-50011
23270BGASKET(FOR PULSATION DAMPER HOSE)
DAMPER SIDE
DELIVERY PIPE SIDE
23291INSULATOR, INJECTOR VIBRATION
23801HGASKET(FOR FUEL PIPE)
23802BPIPE SUB-ASSY, FUEL, NO.2
23807RPLUG, FUEL DELIVARY PIPE
23807VSPACER, NO.1(FOR DELIVERY PIPE)
8404
9007911021
main90079-11021
9010508286
main90105-08286
9017908153
main90179-08153
9017908175
main90179-08175
91621J0612
main91621-J0612
9321914010
main93219-14010
27 parts on this diagram · 2 diagrams in section
