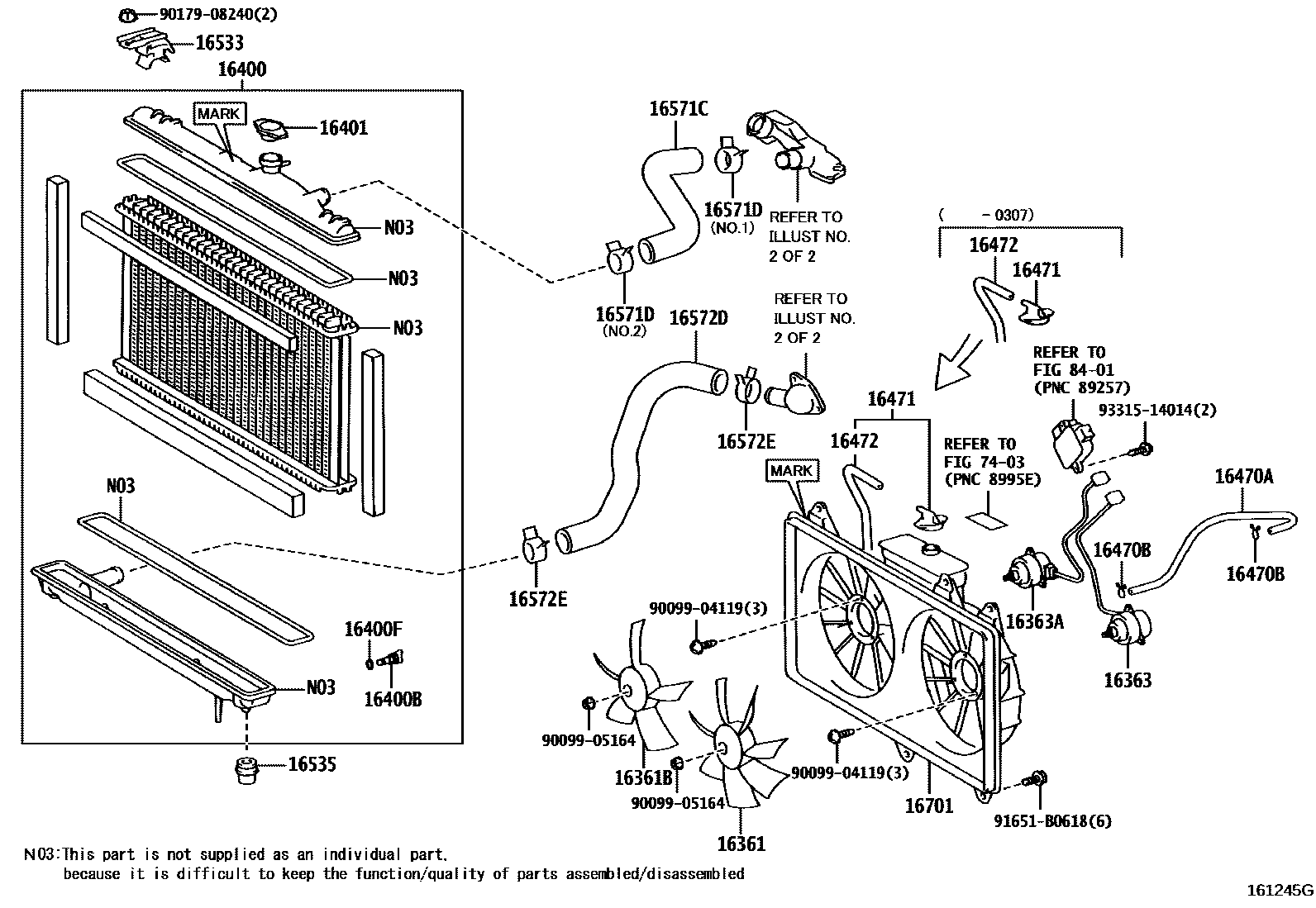

RADIATOR & WATER OUTLET
16361FAN
MARK OF FAN SHROUD=3
MARK OF FAN SHROUD=2 OR 4
16361BFAN, NO.2
MARK OF FAN SHROUD=3
MARK OF FAN SHROUD=2 OR 4
16363MOTOR, COOLING FAN
MARK OF FAN SHROUD=2 OR 4
MARK OF FAN SHROUD=3
MARK OF FAN SHROUD=2 OR 4
16363AMOTOR, COOLING FAN, NO.2
MARK OF FAN SHROUD=3
MARK OF FAN SHROUD=2 OR 4
MARK OF FAN SHROUD=2 OR 4
16400RADIATOR ASSY
TYPE A:REFER TO ILLUSTRATION & MARK = 5023
MARK 5023;TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION & MARK = 5024
TYPE B:REFER TO ILLUSTRATION & MARK = 5024
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
HONG KONG OR SINGAPORE OR THAILAND SPEC
16401CAP SUB-ASSY, RADIATOR
16470TANK ASSY, RADIATOR RESERVE
TYPE B
TYPE B
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16472HOSE, BREATHER
NO.1
NO.2
16533SUPPORT, RADIATOR, UPPER
16535SUPPORT, RADIATOR, LOWER
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
NO.1 & NO.2
NO.1 & NO.2
NO.1 & NO.2
16572DHOSE, RADIATOR, NO.2
16701SHROUD SUB-ASSY, FAN
MARK 2,TYPE A
MARK 3,TYPE B
MARK 4,TYPE B
7403
8401
9009904119
main90099-04119
9009905164
main90099-05164
9017908240
main90179-08240
91651B0618
main91651-B0618
9331514014
main93315-14014
27 parts on this diagram · 7 diagrams in section
