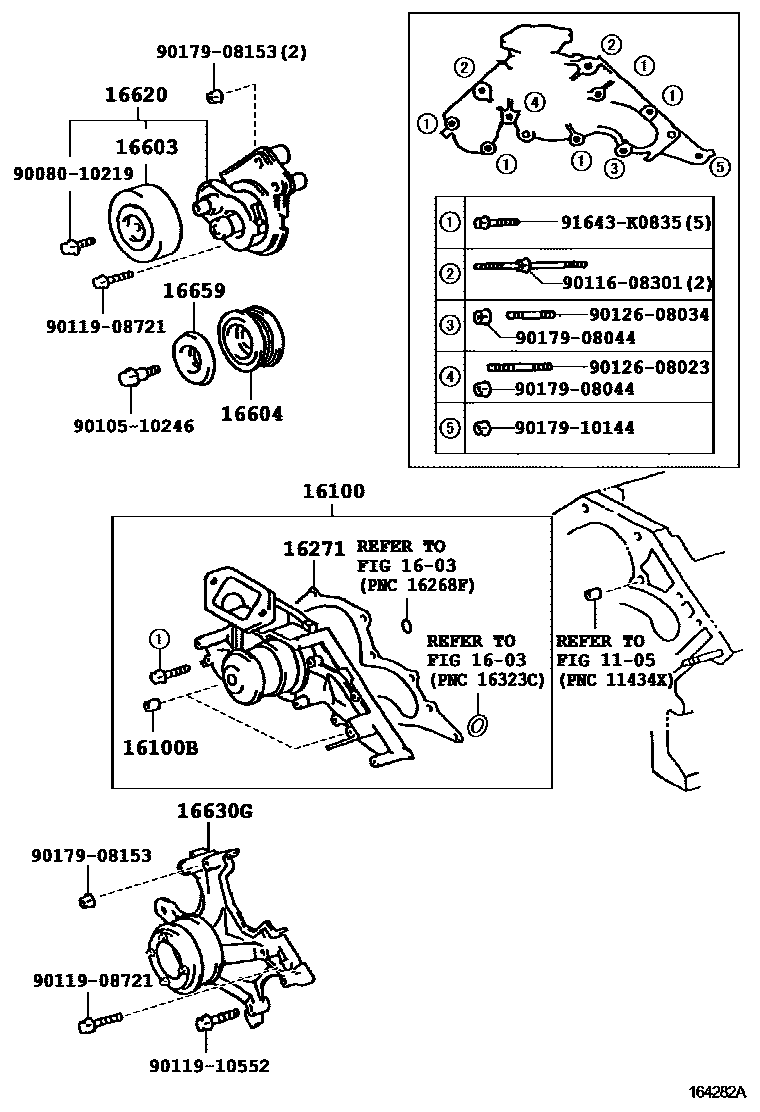

WATER PUMP

1105

1603

16100PUMP ASSY, ENGINE WATER

main16100-59275i3UZFE..UCF30200008-200307

sub16100-59276

16100BPIN, RING(FOR WATER PUMP SET)

main90253-11021i3UZFE..UCF30200008-200307

16271GASKET, WATER PUMP

main16271-50010i3UZFE..UCF30200008-200307

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-0W030i3UZFE..UCF30200008-200307

16604PULLEY SUB-ASSY, IDLER, NO.2

main16604-50030i3UZFE..UCF30200008-200307

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0W036i3UZFE..UCF30200008-200307

sub16620-0W100

main16620-0W100i3UZFE..UCF30200307-200609

sub16620-0W101

main16620-0W101i3UZFE..UCF30200609

16630GPULLEY ASSY, IDLER

main16630-50011i3UZFE..UCF30200008-200307

16659PLATE, IDLER PULLEY COVER, NO.2

main16659-50022i3UZFE..UCF30200008-200307

9008010219

main90080-10219

9010510246

main90105-10246

9011608301

main90116-08301

9011908721

main90119-08721

9011910552

main90119-10552

9012608023

main90126-08023

9012608034

main90126-08034

9017908044

main90179-08044

9017908153

main90179-08153

9017910144

main90179-10144

91643K0835

main91643-K0835

21 parts on this diagram · 1 diagram in section
