STANDARD TOOL

09110JACK ASSY

main09110-30070iUCF30..ARL200602-200608

sub09110-30071

main09111-24071iUCF30..ARL200307-200412

main09111-30140iUCF30..ARL200501-200509

sub09111-30150

main09111-30150iUCF30..ARL200510-200601

main09111-50050iUCF30..EUR,GCC200008-200111

sub09111-50051

main09111-50051iUCF30..EUR,GCC200111-200608

sub09111-76011

main09111-50060iUCF30..ARL200008-200111

sub09111-50061

main09111-50061iUCF30..ARL200111-200307

sub09110-76011

main09111-50070iUCF30..LHD..EUR200411-200608

CHINA SPEC

09113HANDLE, JACK

main09113-50010iUCF30200008-200307

09120ACASE, TOOL

main09120-50030-C0iUCF30..GCC200307-200608

LEADED GASOLINE SPEC,BLACK,TRIM00,07,1#,21,24

main09120-50030-C0iUCF30..GCC200008-200307

LEADED GASOLINE SPEC,BLACK,TRIM03,04,1#,2#

main09120-50040-C0iUCF30..ARL,EUR200008-200307

BLACK,TRIM03,04,1#,2#

main09120-50040-C0iUCF30..GCC200008-200307

UNLEADED GASOLINE SPEC,BLACK,TRIM03,04,1#,2#

main09120-50040-C0iUCF30200307-200608

UNLEADED GASOLINE SPEC,BLACK,TRIM00,07,1#,21,24

09130PLIERS

main09130-50030iUCF30200008-200307

09135DRIVER, SCREW

main09135-50040iUCF30..ARL,GCC;UCF30..LHD..EUR200008-200307

09141SPANNER

main09141-50050iUCF30..ARL,GCC;UCF30..LHD..EUR200008-200307

8 X 10

main09141-50060iUCF30200008-200307

12 X 14

09150WRENCH, HUB NUT BOX

main09150-50010iUCF30200008-200608

sub09150-53010

09155WRENCH, SPARK PLUG

main09155-50010iUCF30..GCC200008-200608

09197LIGHT, PEN

main09197-50030iUCF30200008-200307

51960HOOK ASSY, FRONT

main51961-48030iUCF30200307

sub51961-44010

main51961-50030iUCF30200008-200307

6403

75210BOX ASSY, TOOL

main75210-50040iUCF30..ARL,GCC;UCF30..LHD..EUR200008-200307

9098111045

main90981-11045

91511B0610

main91511-B0610

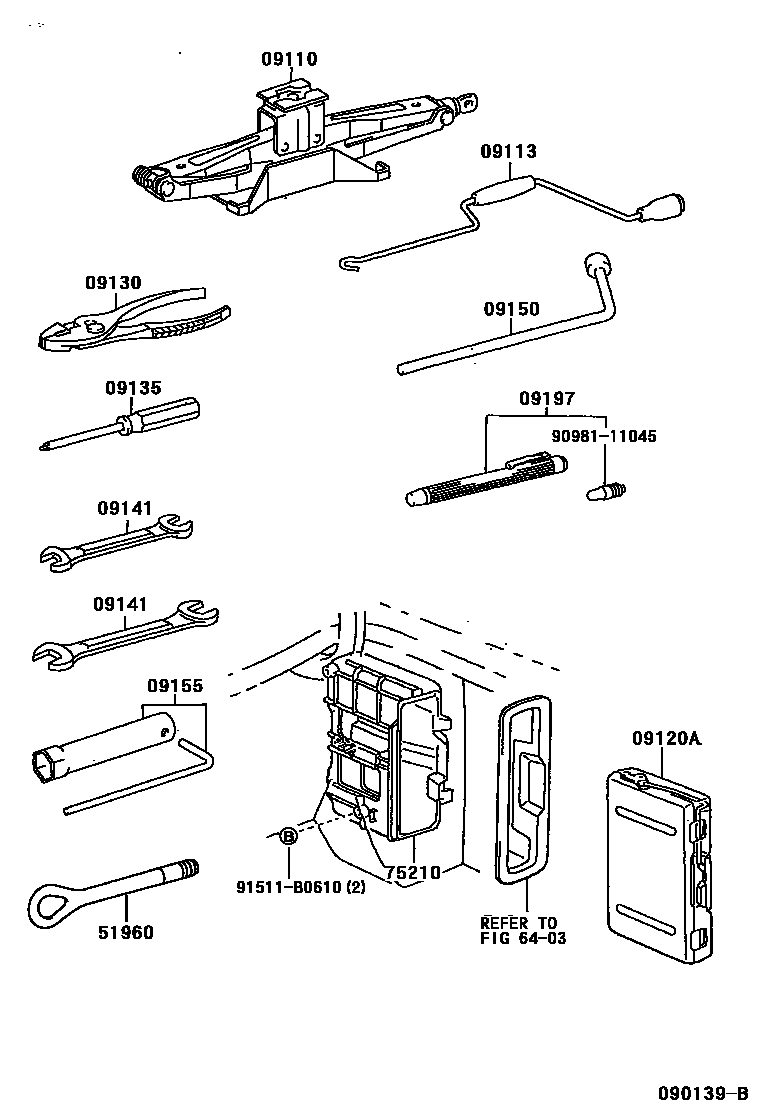

14 parts on this diagram · 1 diagram in section
