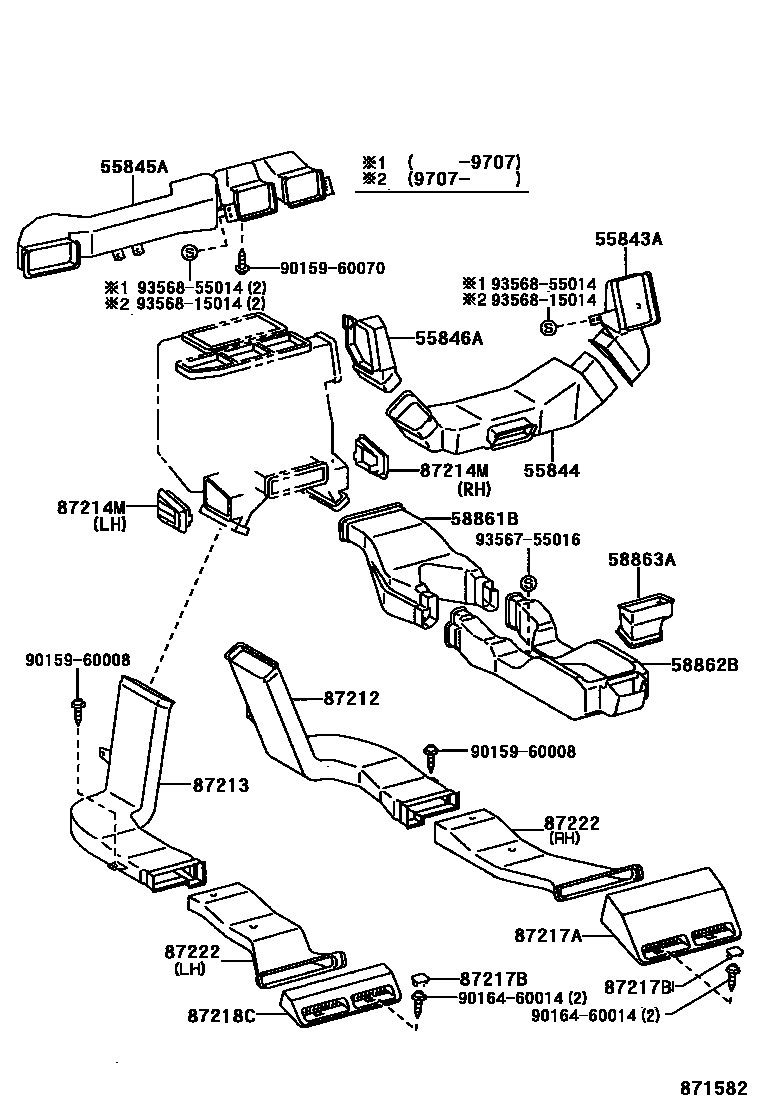

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1 0004 1

55843ADUCT, HEATER TO REGISTER, NO.1

main55843-50030iUCF20..LHD199410

main55843-50040iUCF20..RHD199410

55844DUCT, HEATER TO REGISTER, NO.2

main55844-50030iUCF20..LHD199410-199808

main55844-50040iUCF20..RHD199410-199808

main55844-50050iUCF20..LHD199808

main55844-50060iUCF20..RHD199808

55845ADUCT, HEATER TO REGISTER, NO.3

main55845-50020iUCF20..LHD199410-199707

main55845-50030iUCF20..RHD199410-199707

main55845-50040iUCF20..RHD199707

main55845-50050iUCF20..LHD199707

55846ADUCT, HEATER TO REGISTER, NO.4

main55846-50030iUCF20..LHD199410

main55846-50040iUCF20..RHD199410

58861BDUCT, CONSOLE BOX, NO.1

main58861-50020iUCF20199410

58862BDUCT, CONSOLE BOX, NO.2

main58862-50020iUCF20199410-199605

main58862-50021iUCF20199605

58863ADUCT, CONSOLE BOX, NO.3

main58863-50020iUCF20199410

87212DUCT, AIR, REAR NO.1

main87212-50020iUCF20199410

87213DUCT, AIR, REAR NO.2

main87213-50020iUCF20199410

87214MDUCT, HEATER TO FOOT, NO.3

main87214-50010-A0iUCF20..LHD199410-199707

IVORY,TRIM0#,RH

main87214-50010-A1iUCF20..LHD199707

IVORY,TRIM0#,RH

main87214-50010-B0iUCF20..LHD199410

BLUE GRAY,TRIM1#,RH

main87214-50010-C0iUCF20..LHD199410

BLACK,TRIM2#,RH

main87214-50010-G0iUCF20..LHD..EUR199410

AGATE,TRIM6#,RH

main87214-50020-A0iUCF20..LHD199410-199707

IVORY,TRIM0#,LH

main87214-50020-A1iUCF20..LHD199707

IVORY,TRIM0#,LH

main87214-50020-B0iUCF20..LHD199410

BLUE GRAY,TRIM1#,LH

main87214-50020-C0iUCF20..LHD199410

BLACK,TRIM2#,LH

main87214-50020-G0iUCF20..LHD..EUR199410

AGATE,TRIM6#,LH

main87214-50030-A0iUCF20..RHD199410-199707

IVORY,TRIM0#,RH

main87214-50030-A1iUCF20..RHD199707

IVORY,TRIM0#,RH

main87214-50030-B0iUCF20..RHD199410

BLUE GRAY,TRIM1#,RH

main87214-50030-C0iUCF20..RHD199410

BLACK,TRIM2#,RH

main87214-50030-G0iUCF20..RHD199410

AGATE,TRIM6#,RH

main87214-50040-A0iUCF20..RHD199410-199707

IVORY,TRIM0#,LH

main87214-50040-A1iUCF20..RHD199707

IVORY,TRIM0#,LH

main87214-50040-B0iUCF20..RHD199410

BLUE GRAY,TRIM1#,LH

main87214-50040-C0iUCF20..RHD199410

BLACK,TRIM2#,LH

main87214-50040-G0iUCF20..RHD199410

AGATE,TRIM6#,LH

87217ADUCT, AIR, REAR NO.6

main87217-50040-A0iUCF20199410-199707

IVORY,TRIM0#

main87217-50040-A1iUCF20199707

IVORY,TRIM0#

main87217-50040-B0iUCF20199410

BLUE GRAY,TRIM1#

main87217-50040-C0iUCF20199410

BLACK,TRIM2#

main87217-50040-G0iUCF20..ARL,EUR,GEN199410

AGATE,TRIM6#

87217BPLUG, AIR DUCT

main90950-01693-22×4iUCF20199410

BLACK,TRIM2#

main90950-01693-A0×4iUCF20199410-199707

IVORY,TRIM0#

main90950-01693-A2×4iUCF20199707

IVORY,TRIM0#

main90950-01693-B2×4iUCF20199410

BLUE GRAY,TRIM1#

main90950-01693-G1×4iUCF20..ARL,EUR,GEN199410

AGATE,TRIM6#

87218CDUCT, AIR, REAR NO.6

main87218-50010-A0iUCF20199410-199707

IVORY,TRIM0#

main87218-50010-A1iUCF20199707

IVORY,TRIM0#

main87218-50010-B0iUCF20199410

BLUE GRAY,TRIM1#

main87218-50010-C0iUCF20199410

BLACK,TRIM2#

main87218-50010-G0iUCF20..ARL,EUR,GEN199410

AGATE,TRIM6#

87222GUIDE, AIR DUCT, REAR

main87215-50030iUCF20199410

RH

main87216-50010iUCF20199410

LH

9015960008

main90159-60008

9015960070

main90159-60070

9016460014

main90164-60014

9356755016

main93567-55016

9356815014

main93568-15014

9356855014

main93568-55014

20 parts on this diagram · 4 diagrams in section
