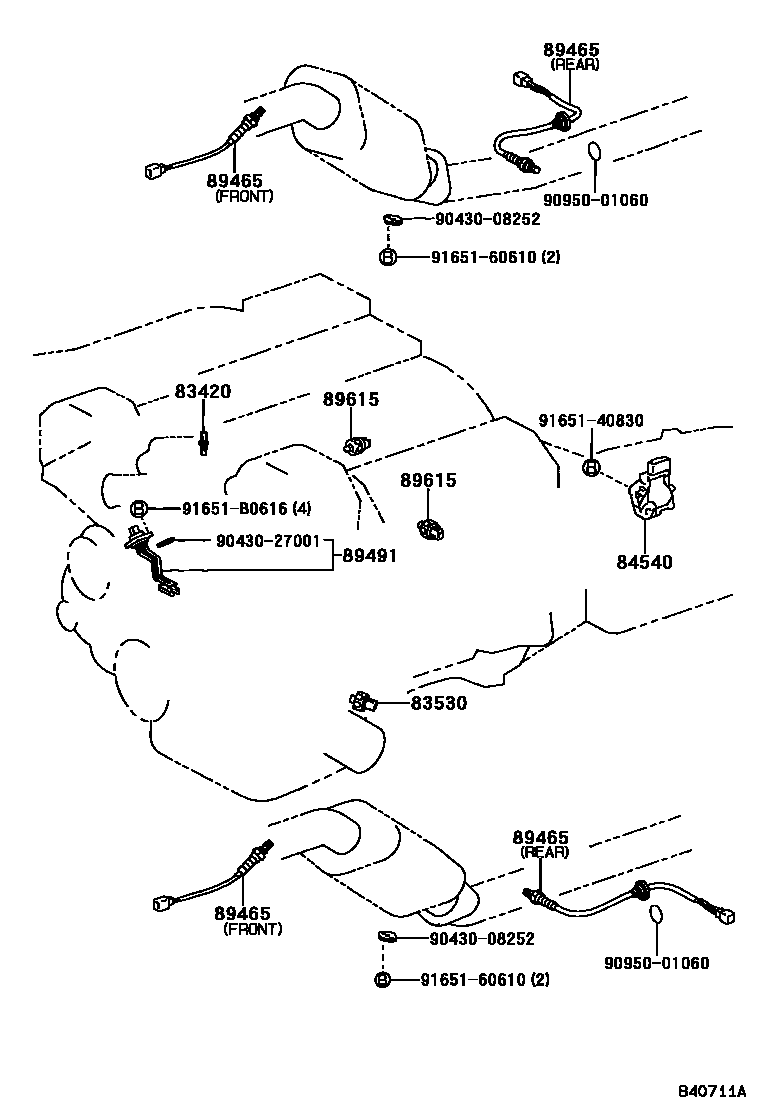

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1COWL & CONSOLE 0004 1COWL & CONSOLE 0005 1INSTRUMENT PANEL & DOOR 0006 1INSTRUMENT PANEL & DOOR 0007 1COMBINATION SWITCH 0008 1COMBINATION SWITCH 0009 1COMBINATION SWITCH 0010 1COMBINATION SWITCH 0011 1SEAT 0012 1BODY

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16050iUCF20199410-199411

main83420-20040iUCF20199411-199707

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14060iUCF20199410-199411

main83530-28020iUCF20199801-200008

main83530-30090iUCF20199411-199801

sub83530-60020

84540SWITCH ASSY, NEUTRAL START

main84540-30270iUCF20199410

89465SENSOR, OXYGEN

main89465-50060×2iUCF20..ARL,EUR199410

HONG KONG SPEC,FRONT

sub89465-50150

main89465-50070×2iUCF20..ARL,EUR199410-199707

HONG KONG SPEC,REAR

main89465-50100×2iUCF20..ARL,EUR199707

HONG KONG SPEC,REAR

89491SENSOR, ENGINE OIL LEVEL

main89491-30050iUCF20199707

main89491-50020iUCF20199410-199707

89615SENSOR, KNOCK CONTROL

main89615-12040×2iUCF20199707

main89615-50010×2iUCF20199410-199707

9043008252

main90430-08252

9043027001

main90430-27001

9095001060

main90950-01060

9165140830

main91651-40830

9165160610

main91651-60610

91651B0616

main91651-B0616

12 parts on this diagram · 12 diagrams in section
