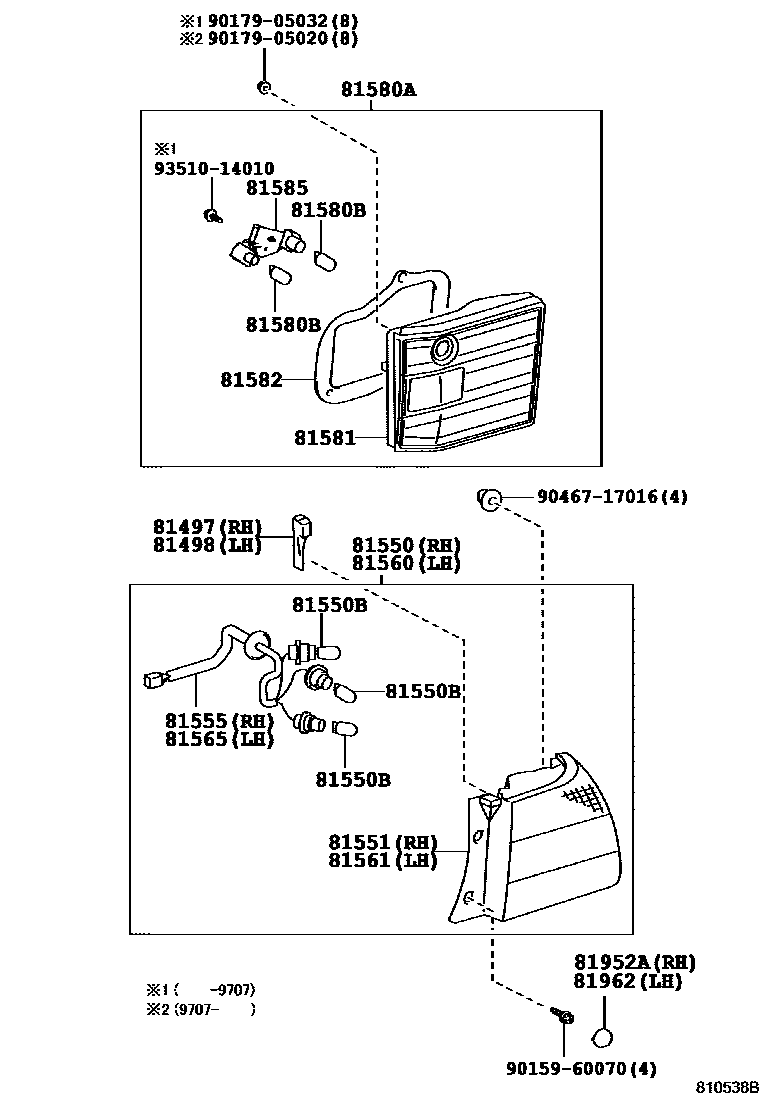

REAR COMBINATION LAMP

81497COVER, REAR COMBINATION LAMP, RH

main81497-50020iUCF20199410-199707

main81497-50030iUCF20199707

81498COVER, REAR COMBINATION LAMP, LH

main81498-50020iUCF20199410-199707

main81498-50030iUCF20199707

81550LAMP ASSY, REAR COMBINATION, RH

main81550-50050iUCF20..GEN,V199410-199707

main81550-50060iUCF20..ARL,EUR199410-199707

main81550-50080iUCF20..GEN,V199707

main81550-50090iUCF20..ARL,EUR199707

main81550-50090iUCF20..V199911

CHINA SPEC

81550BBULB(FOR REAR COMBINATION LAMP)

main90981-13050iUCF20..5FC;UCF20..(GEN,V)..4FC199410

12V 21W

sub90981-13043

main90981-13051iUCF20..5FC;UCF20..(GEN,V)..4FC199410

12V 21/5W

sub90981-11048

main90981-13060iUCF20..ARL,EUR,V199707-199911

12V 55W,HALOGEN

sub90981-13071

main99132-11210iUCF20..ARL,EUR199410-199707

12V 21W

main99132-21210iUCF20..ARL,EUR199410-199707

12V 21/5W

81551LENS, REAR COMBINATION LAMP, RH

main81551-50050iUCF20..GEN,V199410-199707

main81551-50060iUCF20..ARL,EUR199410-199707

main81551-50080iUCF20..GEN,V199707

main81551-50090iUCF20..V199911

CHINA SPEC

main81551-50090iUCF20..ARL,EUR199707

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-50050iUCF20..GEN,V199410-199707

main81555-50060iUCF20..ARL,EUR199410-199707

main81555-50080iUCF20..GEN,V199707

main81555-50090iUCF20..ARL,EUR199707

main81555-50090iUCF20..V199911

CHINA SPEC

81560LAMP ASSY, REAR COMBINATION, LH

main81560-50050iUCF20..GEN,V199410-199707

main81560-50060iUCF20..ARL,EUR199410-199707

main81560-50080iUCF20..GEN,V199707

main81560-50090iUCF20..ARL,EUR199707

main81560-50090iUCF20..V199911

CHINA SPEC

81561LENS, REAR COMBINATION LAMP, LH

main81561-50050iUCF20..GEN,V199410-199707

main81561-50060iUCF20..ARL,EUR199410-199707

main81561-50080iUCF20..GEN,V199707

main81561-50090iUCF20..ARL,EUR199707

main81561-50090iUCF20..V199911

CHINA SPEC

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-50050iUCF20..GEN,V199410-199707

main81555-50060iUCF20..ARL,EUR199410-199707

main81555-50080iUCF20..GEN,V199707

main81555-50090iUCF20..ARL,EUR199707

main81555-50090iUCF20..V199911

CHINA SPEC

81580ALAMP ASSY, REAR

main81580-50040iUCF20..GEN,V199410-199707

RH

main81580-50060iUCF20..ARL,EUR199410-199707

RH

main81580-50080iUCF20..GEN,V199707

RH

main81580-50100iUCF20..V199911

CHINA SPEC,RH

main81580-50100iUCF20..ARL,EUR199707

RH

main81590-50040iUCF20..GEN,V199410-199707

LH

main81590-50060iUCF20..ARL,EUR199410-199707

LH

main81590-50080iUCF20..GEN,V199707

LH

main81590-50100iUCF20..V199911

CHINA SPEC,LH

main81590-50100iUCF20..ARL,EUR199707

LH

81580BBULB (FOR REAR LAMP)

main90981-13050iUCF20..V199911

12V 21W,CHINA SPEC

sub90981-13043

main90981-13050iUCF20..GEN,V199410

12V 21W

sub90981-13043

main90981-13051iUCF20..GEN,V199410

12V 21/5W

sub90981-11048

main99132-11210iUCF20..ARL,EUR199410-199707

12V 21W

81581LENS, REAR LAMP

main81581-50040iUCF20..GEN,V199410-199707

RH

main81581-50060iUCF20..ARL,EUR199410-199707

RH

main81581-50080iUCF20..GEN,V199707

RH

main81581-50100iUCF20..ARL,EUR199707

RH

main81581-50100iUCF20..V199911

CHINA SPEC,RH

main81591-50040iUCF20..GEN,V199410-199707

LH

main81591-50060iUCF20..ARL,EUR199410-199707

LH

main81591-50080iUCF20..GEN,V199707

LH

main81591-50100iUCF20..ARL,EUR199707

LH

main81591-50100iUCF20..V199911

CHINA SPEC,LH

81582GASKET, REAR LAMP

main81582-50040iUCF20199410-199707

main81582-50080iUCF20199707

81585SOCKET & WIRE, REAR LAMP

main81585-50040iUCF20..GEN,V199410-199707

RH

main81585-50060iUCF20..ARL,EUR199410-199707

RH

main81585-50080iUCF20..GEN,V199707

main81585-50100iUCF20..V199911

CHINA SPEC

main81585-50100iUCF20..ARL,EUR199707

main81595-50040iUCF20..GEN,V199410-199707

LH

main81595-50060iUCF20..ARL,EUR199410-199707

LH

81952ACOVER, REAR LAMP, RH

main81952-50010iUCF20199410

81962COVER, REAR LAMP, LH

main81952-50010iUCF20199410

9015960070

main90159-60070

9017905020

main90179-05020

9017905032

main90179-05032

9046717016

main90467-17016

9351014010

main93510-14010

21 parts on this diagram · 1 diagram in section
