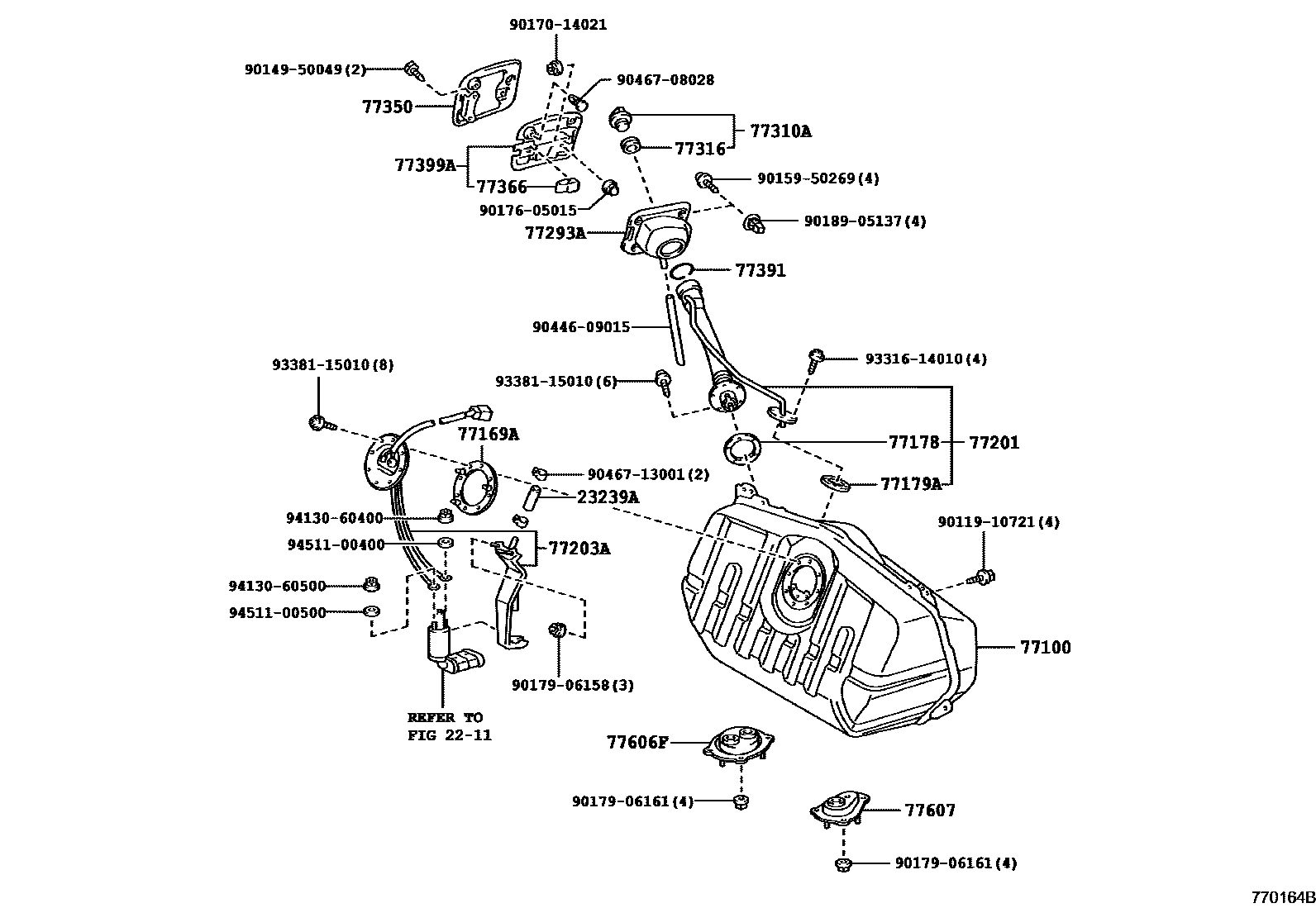

FUEL TANK & TUBE
2211
23239AHOSE
77169AGASKET, FUEL SUCTION TUBE SET
77178GASKET, FUEL TANK FILLER PIPE, LOWER
77179AGASKET, FUEL TANK BREATHER TUBE
77201PIPE SUB-ASSY, FUEL TANK INLET
SOUTH AFRICA SPEC
77203ATUBE SUB-ASSY, FUEL SUCTION
SOUTH AFRICA SPEC
BRAZIL SPEC OR ISRAEL SPEC
77293ASHIELD, FUEL TANK FILLER PIPE, NO.3
77316GASKET, FUEL TANK CAP
77350LID ASSY, FUEL FILLER OPENING
77366SPRING, FUEL FILLER OPENING LID HINGE
77391RING, FUEL INLET BOX
77606FCASE SUB-ASSY, FUEL TANK COVER VENT
77607CASE SUB-ASSY, FUEL TANK COVER VENT, LH
9011910721
main90119-10721
9014950049
main90149-50049
9015950269
main90159-50269
9017014021
main90170-14021
9017605015
main90176-05015
9017906158
main90179-06158
9017906161
main90179-06161
9018905137
main90189-05137
9044609015
main90446-09015
9046708028
main90467-08028
9046713001
main90467-13001
9331614010
main93316-14010
9338115010
main93381-15010
9413060400
main94130-60400
9413060500
main94130-60500
9451100400
main94511-00400
9451100500
main94511-00500
34 parts on this diagram · 2 diagrams in section
