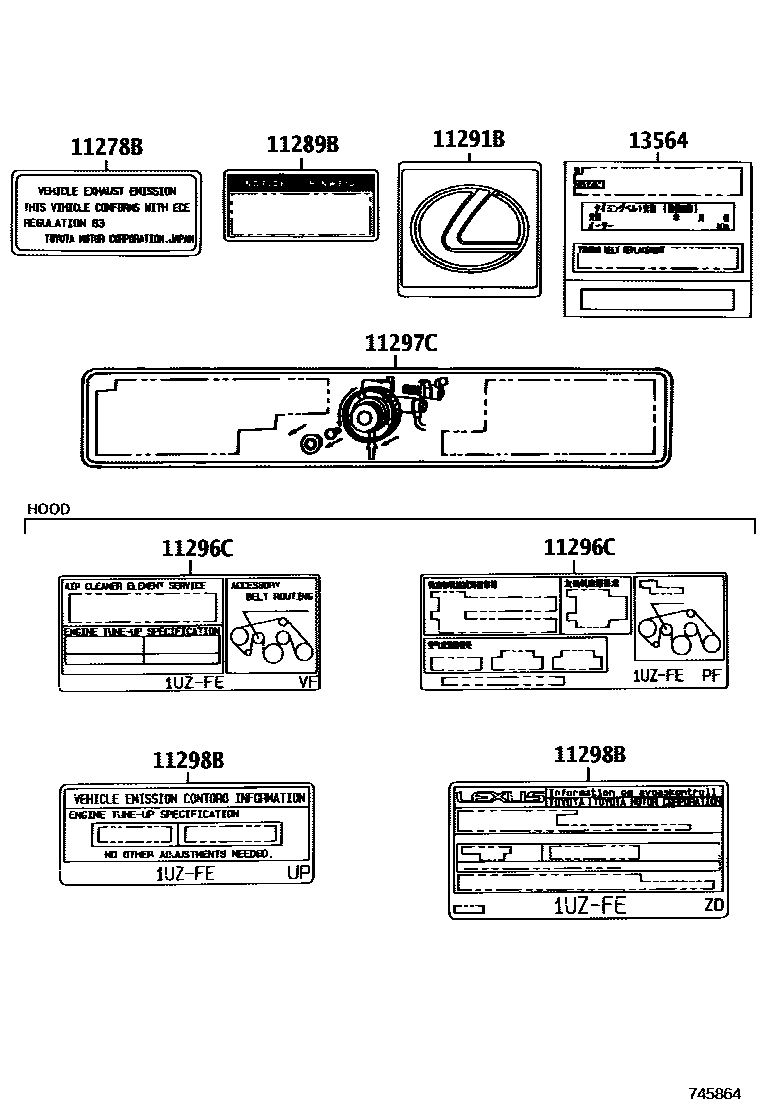

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1ENGINE ROOM, EXTERIOR(1/2) 0002 1EXTERIOR(2/2), INTERIOR

11278BLABEL, ENGINE EMISSION COMPLIANCE INFORMATION

main11278-16040i1UZFE..UCF20..ARL199410-199808

SINGAPORE OR THAILAND SPEC

main11278-16050i1UZFE..UCF20..ARL199808

SINGAPORE OR THAILAND SPEC

11289BLABEL, SPARK PLUG NOTICE

main11289-50010i1UZFE..UCF20..ARL,EUR,GEN199707

11291BPLATE, ENGINE NAME

main11291-50021i1UZFE..UCF20199410-199707

11296CLABEL, ENGINE SERVICE INFORMATION

main11296-50040i1UZFE..UCF20..V..5FC;1UZFE..UCF20..(GEN,V)..4FC;1UZFE..UCF20..RHD..(EUR,GEN)..5FC199410

main11296-50040i1UZFE..UCF20..RHD..EUR199410-199707

SOUTH AFRICA SPEC

main11296-50160i1UZFE..UCF20..V199410-199608

CHINA SPEC

sub11296-50161

main11296-50161i1UZFE..UCF20..V199608-199908

CHINA SPEC

main11296-50162i1UZFE..UCF20..V199908

CHINA SPEC

11297CLABEL, ENGINE SERVICE INFORMATION, NO.2

main11297-50010i1UZFE..UCF20199707

11298BLABEL, EMISSION CONTROL INFORMATION

main11298-50030i1UZFE..UCF20..GEN199410-199608

HONG KONG SPEC

main11298-50030i1UZFE..UCF20..ARL199410

main11298-50110i1UZFE..UCF20..LHD..EUR199410-199508

SWEDEN OR FINLAND SPEC

13564LABEL, TIMING BELT REPLACEMENT INFORMATION

main13567-10010i1UZFE..UCF20199410

7 parts on this diagram · 2 diagrams in section
