E
EPC Data

SEAT BELT & CHILD RESTRAINT SEAT

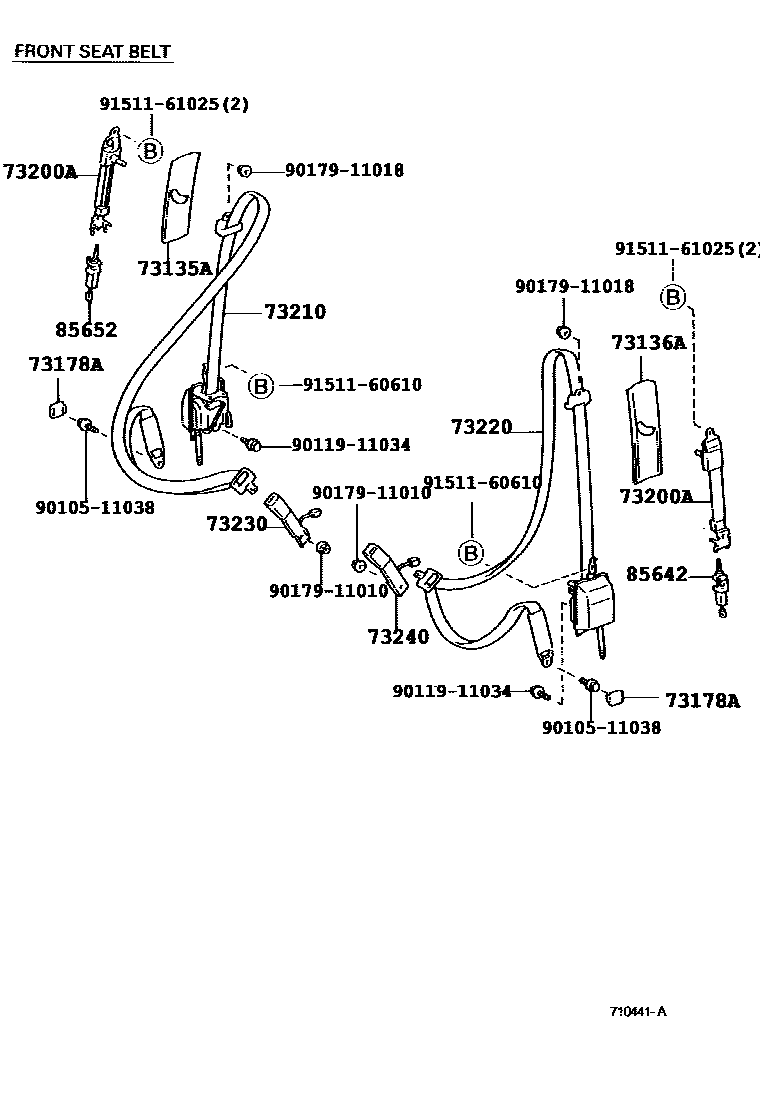

Parts diagram
73135ACOVER, SHOULDER BELT ANCHOR, RH
main73135-50040-A0i199410-199703
IVORY,TRIM0#
main73135-50040-B0i199410-199703
BLUE GRAY,TRIM1#,2#
main73135-50040-G0i199410-199703
AGATE,TRIM6#
main73135-50041-A0i199703-199707
IVORY,TRIM0#
main73135-50041-A1i199707
IVORY,TRIM0#
main73135-50041-B0i199703
BLUE GRAY,TRIM1#,2#
main73135-50041-G0i199703
AGATE,TRIM6#
73136ACOVER, SHOULDER BELT ANCHOR, LH
main73136-50040-A0i199410-199703
IVORY,TRIM0#
main73136-50040-B0i199410-199703
BLUE GRAY,TRIM1#,2#
main73136-50040-G0i199410-199703
AGATE,TRIM6#
main73136-50041-A0i199703-199707
IVORY,TRIM0#
main73136-50041-A1i199707
IVORY,TRIM0#
main73136-50041-B0i199703
BLUE GRAY,TRIM1#,2#
main73136-50041-G0i199703
AGATE,TRIM6#
73178ACAP, SEAT BELT ANCHOR COVER
main73178-50010-A0×2i199410-199707
IVORY,TRIM0#
main73178-50010-A1×2i199707
IVORY,TRIM0#
main73178-50010-B0×2i199410
BLUE GRAY,TRIM1#
main73178-50010-C0×2i199410
BLACK,TRIM2#
main73178-50010-G0×2i199410
AGATE,TRIM6#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-50060×2i199410-199707
main73200-50070×2i199707
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-50100-B0i199410-199503
BLUE GRAY,TRIM1#
main73210-50100-C0i199705-199707
BLACK,TRIM2#
main73210-50100-E0i199705-199707
MEDIUM OAK,TRIM0#
main73210-50100-G0i199410-199503
AGATE,TRIM6#
main73210-50101-B0i199503-199705
BLUISH GRAY,TRIM1#
sub73210-50102
main73210-50101-C0i199503-199705
BLACK,TRIM2#
sub73210-50102
main73210-50101-E0i199503-199705
LIGHT OAK,TRIM0#
sub73210-50102
main73210-50101-G0i199503-199705
DARK AGATE,TRIM6#
sub73210-50102
main73210-50130-A0i199707-199808
IVORY,TRIM0#
sub73210-50170
main73210-50130-B0i199707-199808
BLUISH GRAY,TRIM1#
sub73210-50170
main73210-50130-C0i199808-199810
BLACK,TRIM2#
sub73210-50170
main73210-50130-G0i199707-199810
DARK AGATE,TRIM6#
sub73210-50170
main73210-50131-A0i199810-199812
IVORY,TRIM0#
main73210-50131-B0i199812
BLUISH GRAY,TRIM1#
main73210-50131-C0i199812
BLACK,TRIM2#
main73210-50131-G0i199810
DARK AGATE,TRIM6#
main73210-50150-A0i199808-199812
IVORY,TRIM0#
main73210-50150-B0i199808-199812
BLUISH GRAY,TRIM1#
main73210-50150-C0i199808-199812
BLACK,TRIM2#
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-50090-B0i199410-199503
BLUE GRAY,TRIM1#
main73220-50090-C0i199410-199503
BLACK,TRIM2#
main73220-50090-E0i199410-199503
MEDIUM OAK,TRIM0#
main73220-50090-G0i199410-199503
AGATE,TRIM6#
main73220-50091-B0i199503-199705
BLUISH GRAY,TRIM1#
main73220-50091-C0i199503-199705
BLACK,TRIM2#
main73220-50091-E0i199503-199705
LIGHT OAK,TRIM0#
main73220-50091-G0i199503-199705
DARK AGATE,TRIM6#
main73220-50092-B0i199705-199707
BLUISH GRAY,TRIM1#
main73220-50092-C0i199705-199707
BLACK,TRIM2#
main73220-50092-E0i199705-199707
LIGHT OAK,TRIM0#
main73220-50092-G0i199705-199707
DARK AGATE,TRIM6#
main73220-50110-A0i199808-199810
IVORY,TRIM0#
sub73220-50150
main73220-50110-B0i199707-199808
BLUISH GRAY,TRIM1#
sub73220-50150
main73220-50110-C0i199707-199808
BLACK,TRIM2#
sub73220-50150
main73220-50110-G0i199707-199810
DARK AGATE,TRIM6#
sub73220-50150
main73220-50111-A0i199810-199812
IVORY,TRIM0#
main73220-50111-B0i199812
BLUISH GRAY,TRIM1#
main73220-50111-C0i199812
BLACK,TRIM2#
main73220-50111-G0i199810
DARK AGATE,TRIM6#
main73220-50130-A0i199808-199812
IVORY,TRIM0#
main73220-50130-B0i199808-199812
BLUISH GRAY,TRIM1#
main73220-50130-C0i199808-199812
BLACK,TRIM2#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-50050-A0i199410-199608
SOUTH AFRICA SPEC,IVORY,TRIM0#
main73230-50050-B0i199410-199608
SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main73230-50050-C0i199410-199608
SOUTH AFRICA SPEC,BLACK,TRIM2#
main73230-50050-G0i199410-199608
SOUTH AFRICA SPEC,AGATE,TRIM6#
main73230-50051-A0i199608-199707
SOUTH AFRICA SPEC,IVORY,TRIM0#
main73230-50051-B0i199608-199707
SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#
main73230-50051-C0i199608-199707
SOUTH AFRICA SPEC,BLACK,TRIM2#
main73230-50051-G0i199608-199707
SOUTH AFRICA SPEC,AGATE,TRIM6#
main73230-50070-A0i199410-199608
IVORY,TRIM0#
main73230-50070-B0i199410-199608
BLUE GRAY,TRIM1#
main73230-50070-C0i199410-199608
BLACK,TRIM2#
main73230-50070-G0i199410-199608
AGATE,TRIM6#
main73230-50071-A0i199608-199707
IVORY,TRIM0#
main73230-50071-B0i199608-199707
BLUE GRAY,TRIM1#
main73230-50071-C0i199608-199707
BLACK,TRIM2#
main73230-50071-G0i199608-199707
AGATE,TRIM6#
main73230-50080-A0i199707-199811
IVORY,TRIM0#
main73230-50080-B0i199707-199811
BLUE GRAY,TRIM1#
main73230-50080-C0i199707-199811
BLACK,TRIM2#
main73230-50080-G0i199707-199811
AGATE,TRIM6#
main73230-50081-A0i199811
IVORY,TRIM0#
main73230-50081-B0i199811
BLUE GRAY,TRIM1#
main73230-50081-C0i199811
BLACK,TRIM2#
main73230-50081-G0i199811
AGATE,TRIM6#
main73230-50090-A0i199707
IVORY,TRIM0#
main73230-50090-B0i199707
BLUE GRAY,TRIM1#
main73230-50090-C0i199707
BLACK,TRIM2#
main73230-50090-G0i199707
AGATE,TRIM6#
73240BELT ASSY, FRONT SEAT INNER, LH
main73240-50060-A0i199410-199608
IVORY,TRIM0#
main73240-50060-B0i199410-199608
BLUE GRAY,TRIM1#
main73240-50060-C0i199410-199608
BLACK,TRIM2#
main73240-50060-G0i199410-199608
AGATE,TRIM6#
main73240-50061-A0i199608-199707
IVORY,TRIM0#
main73240-50061-B0i199608-199707
BLUE GRAY,TRIM1#
main73240-50061-C0i199608-199707
BLACK,TRIM2#
main73240-50061-G0i199608-199707
AGATE,TRIM6#
main73240-50070-A0i199410-199608
IVORY,TRIM0#
main73240-50070-B0i199410-199608
BLUE GRAY,TRIM1#
main73240-50070-C0i199410-199608
BLACK,TRIM2#
main73240-50071-A0i199608-199707
IVORY,TRIM0#
main73240-50071-B0i199608-199707
BLUE GRAY,TRIM1#
main73240-50071-C0i199608-199707
BLACK,TRIM2#
main73240-50080-A0i199707-199811
IVORY,TRIM0#
main73240-50080-B0i199707-199811
BLUE GRAY,TRIM1#
main73240-50080-C0i199707-199811
BLACK,TRIM2#
main73240-50080-G0i199707-199811
AGATE,TRIM6#
main73240-50081-A0i199811
IVORY,TRIM0#
main73240-50081-B0i199811
BLUE GRAY,TRIM1#
main73240-50081-C0i199811
BLACK,TRIM2#
main73240-50081-G0i199811
AGATE,TRIM6#
main73240-50090-A0i199707
IVORY,TRIM0#
main73240-50090-B0i199707
BLUE GRAY,TRIM1#
main73240-50090-C0i199707
BLACK,TRIM2#
main73240-50090-G0i199707
AGATE,TRIM6#
85642MOTOR, HEIGHT ADJUSTABLE ANCHOR, RH
main85642-50020i199410
85652MOTOR, HEIGHT ADJUSTABLE ANCHOR, LH
main85642-50030i199410
9010511038
main90105-11038
9011911034
main90119-11034
9017911010
main90179-11010
9017911018
main90179-11018
9151160610
main91511-60610
9151161025
main91511-61025

16 parts on this diagram · 2 diagrams in section
