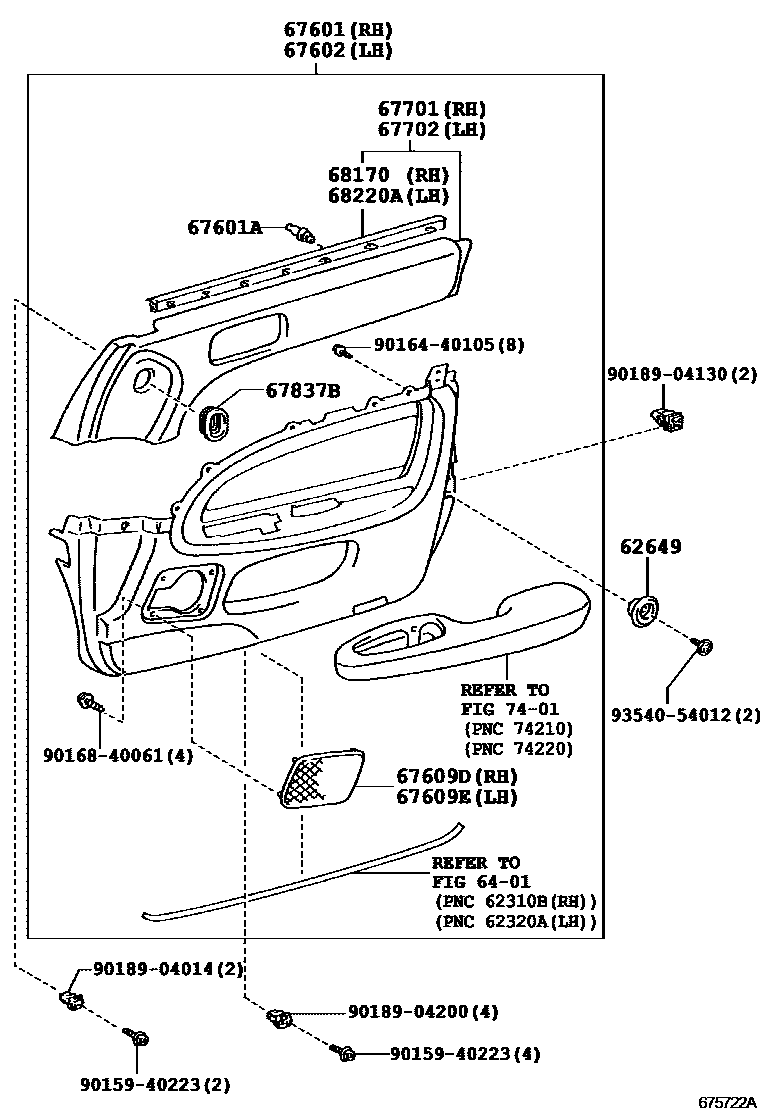

FRONT DOOR PANEL & GLASS

0001 1 0002 1

62649BRACKET, SIDE TRIM

main67649-50020-A0iUCF20199410-199707

IVORY,TRIM0#

sub67649-50020¥120

main67649-50020-A1iUCF20199707

IVORY,TRIM0#

sub67649-50020¥120

main67649-50020-B0iUCF20199410

BLUE GRAY,TRIM1#

sub67649-50020¥120

main67649-50020-C0iUCF20199410

BLACK,TRIM2#

sub67649-50020¥120

main67649-50020-G0iUCF20..ARL,EUR,GEN199410

AGATE,TRIM6#

sub67649-50020¥120

6401

67601BOARD SUB-ASSY, FRONT DOOR TRIM, RH

main67610-50190-A0iUCF20..RHD..EUR199410-199707

SOUTH AFRICA SPEC,IVORY,TRIM0#

sub67610-50260¥155,000

main67610-50190-A0iUCF20..ARL,GEN,V199410-199707

IVORY,TRIM0#

sub67610-50260¥155,000

main67610-50190-B0iUCF20..ARL,GEN,V199410-199707

BLUE GRAY,TRIM1#

sub67610-50260¥155,000

main67610-50190-B0iUCF20..ARL,GEN,V199410-199707

SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#

sub67610-50260¥155,000

main67610-50190-C0iUCF20..ARL,GEN,V199410-199707

BLACK,TRIM2#

sub67610-50260¥155,000

main67610-50190-C0iUCF20..ARL,GEN,V199410-199707

SOUTH AFRICA SPEC,BLACK,TRIM2#

sub67610-50260¥155,000

main67610-50190-G0iUCF20..ARL,GEN199410-199707

AGATE,TRIM6#

sub67610-50260¥155,000

main67610-50190-G0iUCF20..ARL,GEN199410-199707

SOUTH AFRICA SPEC,AGATE,TRIM6#

sub67610-50260¥155,000

main67610-50210-A0iUCF20..EUR199410-199707

IVORY,TRIM0#

sub67610-50190¥154,000

main67610-50210-B0iUCF20..EUR199410-199707

BLUE GRAY,TRIM1#

sub67610-50190¥154,000

main67610-50210-C0iUCF20..EUR199410-199707

BLACK,TRIM2#

sub67610-50190¥154,000

main67610-50210-G0iUCF20..EUR199410-199707

AGATE,TRIM6#

sub67610-50190¥154,000

main67610-50260-A0iUCF20..ARL,GEN,V199707

IVORY,TRIM0#

main67610-50260-A0iUCF20..ARL,GEN,V199707

SOUTH AFRICA SPEC,IVORY,TRIM0#

main67610-50260-B0iUCF20..ARL,GEN,V199707

SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#

main67610-50260-B0iUCF20..ARL,GEN,V199707

BLUE GRAY,TRIM1#

main67610-50260-C0iUCF20..ARL,GEN,V199707

BLACK,TRIM2#

main67610-50260-C0iUCF20..ARL,GEN,V199707

SOUTH AFRICA SPEC,BLACK,TRIM2#

main67610-50260-G0iUCF20..ARL,GEN199707

AGATE,TRIM6#

main67610-50260-G0iUCF20..ARL,GEN199707

SOUTH AFRICA SPEC,AGATE,TRIM6#

main67610-50270-A0iUCF20..EUR199707

IVORY,TRIM0#

sub67610-50260¥155,000

main67610-50270-B0iUCF20..EUR199707

BLUE GRAY,TRIM1#

sub67610-50260¥155,000

main67610-50270-C0iUCF20..EUR199707

BLACK,TRIM2#

sub67610-50260¥155,000

main67610-50270-G0iUCF20..EUR199707

AGATE,TRIM6#

sub67610-50260¥155,000

67601ARETAINER(FOR FRONT DOOR TRIM BOARD)

main67771-12050iUCF20¥160199410-199608

main67771-28020iUCF20¥220199608

67602BOARD SUB-ASSY, FRONT DOOR TRIM, LH

main67620-50190-A0iUCF20..ARL,GEN,V199410-199707

IVORY,TRIM0#

main67620-50190-A0iUCF20..ARL,GEN,V199410-199707

SOUTH AFRICA SPEC,IVORY,TRIM0#

main67620-50190-B0iUCF20..ARL,GEN,V199410-199707

BLUE GRAY,TRIM1#

main67620-50190-B0iUCF20..ARL,GEN,V199410-199707

SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#

main67620-50190-C0iUCF20..ARL,GEN,V199410-199707

BLACK,TRIM2#

main67620-50190-C0iUCF20..ARL,GEN,V199410-199707

SOUTH AFRICA SPEC,BLACK,TRIM2#

main67620-50190-G0iUCF20..ARL,GEN199410-199707

AGATE,TRIM6#

main67620-50190-G0iUCF20..ARL,GEN199410-199707

SOUTH AFRICA SPEC,AGATE,TRIM6#

main67620-50210-A0iUCF20..EUR199410-199707

IVORY,TRIM0#

sub67620-50190¥154,000

main67620-50210-B0iUCF20..EUR199410-199707

BLUE GRAY,TRIM1#

sub67620-50190¥154,000

main67620-50210-C0iUCF20..EUR199410-199707

BLACK,TRIM2#

sub67620-50190¥154,000

main67620-50210-G0iUCF20..EUR199410-199707

AGATE,TRIM6#

sub67620-50190¥154,000

main67620-50260-A0iUCF20..LHD..EUR199707

IVORY,TRIM0#

main67620-50260-A0iUCF20..ARL,GEN,V199707

BRAZIL SPEC,IVORY,TRIM0#

main67620-50260-A0iUCF20..ARL,GEN,V199707

SOUTH AFRICA SPEC,IVORY,TRIM0#

main67620-50260-B0iUCF20..ARL,GEN,V199707

BRAZIL SPEC,BLUE GRAY,TRIM1#

main67620-50260-B0iUCF20..ARL,GEN,V199707

SOUTH AFRICA SPEC,BLUE GRAY,TRIM1#

main67620-50260-B0iUCF20..LHD..EUR199707

BLUE GRAY,TRIM1#

main67620-50260-C0iUCF20..ARL,GEN,V199707

BLACK,TRIM2#

main67620-50260-C0iUCF20..ARL,GEN,V199707

BRAZIL SPEC,BLACK,TRIM2#

main67620-50260-C0iUCF20..ARL,GEN,V199707

SOUTH AFRICA SPEC,BLACK,TRIM2#

main67620-50260-G0iUCF20..ARL,GEN199707

AGATE,TRIM6#

main67620-50260-G0iUCF20..ARL,GEN199707

SOUTH AFRICA SPEC,AGATE,TRIM6#

main67620-50270-A0iUCF20..EUR199707

IVORY,TRIM0#

sub67620-50260¥155,000

main67620-50270-B0iUCF20..EUR199707

BLUE GRAY,TRIM1#

sub67620-50260¥155,000

main67620-50270-C0iUCF20..EUR199707

BLACK,TRIM2#

sub67620-50260¥155,000

main67620-50270-G0iUCF20..EUR199707

AGATE,TRIM6#

sub67620-50260¥155,000

67609DGRILLE SUB-ASSY, FRONT DOOR SPEAKER, RH

main67609-50020-A0iUCF20199410-199707

IVORY,TRIM0#

main67609-50020-A1iUCF20199707-200008

IVORY,TRIM0#

main67609-50020-B0iUCF20199410-200008

BLUE GRAY,TRIM1#

main67609-50020-C0iUCF20199410-200008

BLACK,TRIM2#

main67609-50020-G0iUCF20..ARL,EUR,GEN199410-200008

AGATE,TRIM6#

67609EGRILLE SUB-ASSY, FRONT DOOR SPEAKER, LH

main67709-50020-A0iUCF20199410-199707

IVORY,TRIM0#

main67709-50020-A1iUCF20199707-200008

IVORY,TRIM0#

main67709-50020-B0iUCF20199410-200008

BLUE GRAY,TRIM1#

main67709-50020-C0iUCF20199410-200008

BLACK,TRIM2#

main67709-50020-G0iUCF20..ARL,EUR,GEN199410-200008

AGATE,TRIM6#

67701COVER SUB-ASSY, FRONT DOOR TRIM, RH

main67701-50010-B0iUCF20199410

DK.BLUE GRAY,TRIM1#

main67701-50010-C0iUCF20199410

BLACK,TRIM2#

main67701-50010-E0iUCF20199410-199707

OAK,TRIM0#

main67701-50010-E1iUCF20199707

SANDAL WOOD,TRIM0#

main67701-50010-G0iUCF20..ARL,EUR,GEN199410

DK.AGATE,TRIM6#

67702COVER SUB-ASSY, FRONT DOOR TRIM, LH

main67702-50010-B0iUCF20199410

DK.BLUE GRAY,TRIM1#

main67702-50010-C0iUCF20199410

BLACK,TRIM2#

main67702-50010-E0iUCF20199410-199707

OAK,TRIM0#

main67702-50010-E1iUCF20199707

SANDAL WOOD,TRIM0#

main67702-50010-G0iUCF20..ARL,EUR,GEN199410

DK.AGATE,TRIM6#

67837BSEAL, FRONT DOOR DUST PROOF

main67837-50010iUCF20¥1,180199410-199508

sub67837-50030¥1,190

main67837-50030iUCF20..EUR¥1,190199508-199707

SOUTH AFRICA SPEC

main67837-50030iUCF20..5FC;UCF20..(ARL,GEN,V)..4FC¥1,190199508

68170WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER

main68170-50020iUCF20¥4,590199410-199703

sub68170-50021¥4,590

main68170-50021iUCF20¥4,590199703

68220AWEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER LH

main68220-50020iUCF20¥4,590199410-199703

sub68220-50021¥4,590

main68220-50021iUCF20¥4,590199703

7401

9015940223

main90159-40223¥70

9016440105

main90164-40105¥70

9016840061

main90168-40061¥70

9018904014

main90189-04014¥120

9018904130

main90189-04130¥130

9018904200

main90189-04200¥80

9354054012

main93540-54012¥90

20 parts on this diagram · 2 diagrams in section
