PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

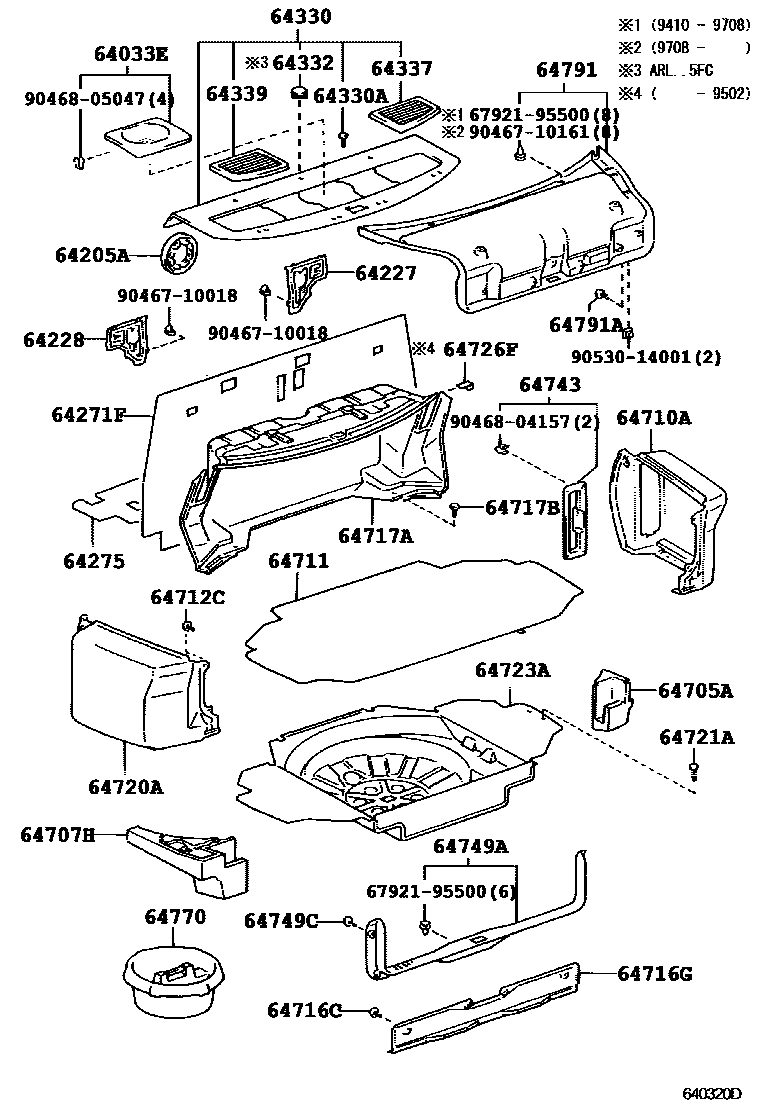

Parts diagram
64033EGRILLE SUB-ASSY, REAR SPEAKER
main64033-50070-B0i199410
BLUE GRAY,TRIM1#
sub64033-50080¥7,900
sub64033-40040¥7,800
main64033-50070-C0i199410
BLACK,TRIM2#
sub64033-50080¥7,900
sub64033-40040¥7,800
main64033-50070-E0i199410-199707
MEDIUM OAK,TRIM0#
sub64033-50080¥7,900
sub64033-40040¥7,800
main64033-50070-E2i199707
SANDALWOOD,TRIM0#
sub64033-50080¥7,900
sub64033-40040¥7,800
main64033-50070-G0i199410
AGATE,TRIM6#
sub64033-50080¥7,900
sub64033-40040¥7,800
main64033-50080-B0i199410
W(REAR CURTAIN),BLUE GRAY,TRIM1#
sub64033-50080¥7,900
main64033-50080-C0i199410
W(REAR CURTAIN),BLACK,TRIM2#
sub64033-50080¥7,900
main64033-50080-E0i199410-199707
W(REAR CURTAIN),MEDIUM OAK,TRIM0#
sub64033-50080¥7,900
main64033-50080-E2i199707
W(REAR CURTAIN),SANDALWOOD,TRIM0#
sub64033-50080¥7,900
64205ACOVER SUB-ASSY, ROOM PARTITION
main64275-50010i¥1,600199410
64227EXTENSION, CENTER FLOOR TO BRACE
main64227-50020i¥2,300199410
64228EXTENSION, CENTER FLOOR TO BRACE, NO.2
main64228-50020i¥2,300199410
64271FTRIM, ROOM PARTITION
main64271-50040i¥4,970199707
main64271-50050i¥3,400199410-199707
64275PAD, ROOM PARTITION TRIM, NO.2
main64274-50030i¥2,060199410
64330PANEL ASSY, PACKAGE TRAY TRIM
main64330-50110-B0i199410
BLUE GRAY,TRIM1#
sub64330-50110¥30,300
main64330-50110-B0i199410
W(REAR AIR CONDITIONER),BLUE GRAY,TRIM1#
sub64330-50110¥30,300
main64330-50110-B0i199707
SINGAPORE SPEC & W(REAR AIR CONDITIONER) OR THAILAND SPEC & W(REAR AIR CONDITIONER),BLUE GRAY,TRIM1#
sub64330-50110¥30,300
main64330-50110-C0i199410
SINGAPORE SPEC & W(REAR AIR CONDITIONER) OR THAILAND SPEC & W(REAR AIR CONDITIONER),BLACK,TRIM2#
sub64330-50110¥30,300
main64330-50110-C0i199410
W(REAR AIR CONDITIONER),BLACK,TRIM2#
sub64330-50110¥30,300
main64330-50110-C0i199410
BLACK,TRIM2#
sub64330-50110¥30,300
main64330-50110-E0i199410-199707
SINGAPORE SPEC & W(REAR AIR CONDITIONER) OR THAILAND SPEC & W(REAR AIR CONDITIONER),MEDIUM OAK,TRIM0#
sub64330-50110¥30,300
main64330-50110-E0i199410-199707
W(REAR AIR CONDITIONER),MEDIUM OAK,TRIM0#
sub64330-50110¥30,300
main64330-50110-E0i199410-199707
MEDIUM OAK,TRIM0#
sub64330-50110¥30,300
main64330-50110-E1i199707
SINGAPORE SPEC & W(REAR AIR CONDITIONER) OR THAILAND SPEC & W(REAR AIR CONDITIONER),SANDALWOOD,TRIM0#
sub64330-50110¥30,300
main64330-50110-E1i199707
SANDALWOOD,TRIM0#
sub64330-50110¥30,300
main64330-50110-E1i199707
W(AIR CONDITIONER),SANDALWOOD,TRIM0#
sub64330-50110¥30,300
main64330-50110-G0i199410
W(REAR AIR CONDITIONER),AGATE,TRIM6#
sub64330-50110¥30,300
main64330-50110-G0i199707
SINGAPORE SPEC & W(REAR AIR CONDITIONER) OR THAILAND SPEC & W(REAR AIR CONDITIONER),AGATE,TRIM6#
sub64330-50110¥30,300
main64330-50120-B0i199410
BLUE GRAY,TRIM1#
main64330-50120-B0i199410
SINGAPORE SPEC OR THAILAND SPEC,BLUE GRAY,TRIM1#
main64330-50120-B0i199707
SINGAPORE OR THAILAND SPEC,BLUE GRAY,TRIM1#
main64330-50120-C0i199707
SINGAPORE OR THAILAND SPEC,BLACK,TRIM2#
main64330-50120-C0i199410
BLACK,TRIM2#
main64330-50120-C0i199410
SINGAPORE SPEC OR THAILAND SPEC,BLACK,TRIM2#
main64330-50120-E0i199410-199707
SINGAPORE SPEC OR THAILAND SPEC,MEDIUM OAK,TRIM0#
main64330-50120-E0i199410-199707
MEDIUM OAK,TRIM0#
main64330-50120-E1i199707
SANDALWOOD,TRIM0#
main64330-50120-E1i199707
SINGAPORE OR THAILAND SPEC,SANDALWOOD,TRIM0#
main64330-50120-G0i199410
AGATE,TRIM6#
main64330-50120-G0i199410
SINGAPORE SPEC OR THAILAND SPEC,AGATE,TRIM6#
main64330-50120-G0i199707
SINGAPORE OR THAILAND SPEC,AGATE,TRIM6#
main64330-50140-B0i199410-199808
BLUE GRAY,TRIM1#
sub64330-50141¥30,300
main64330-50140-C0i199410-199808
BLACK,TRIM2#
sub64330-50141¥30,300
main64330-50140-E0i199410-199707
MEDIUM OAK,TRIM0#
sub64330-50141¥30,300
main64330-50140-E1i199707-199808
SANDALWOOD,TRIM0#
sub64330-50141¥30,300
main64330-50140-G0i199410-199808
AGATE,TRIM6#
sub64330-50141¥30,300
main64330-50141-B0i199808-199908
BLUE GRAY,TRIM1#
main64330-50141-C0i199808-199908
BLACK,TRIM2#
main64330-50141-E1i199808-199908
SANDALWOOD,TRIM0#
main64330-50141-G0i199808-199908
AGATE,TRIM6#
main64330-50150-B0i199410-199707
W(REAR AIR CONDITIONER),BLUE GRAY,TRIM1#
sub64330-50151¥30,300
main64330-50150-B0i199707-199808
W(AIR CONDITIONER),BLUE GRAY,TRIM1#
sub64330-50151¥30,300
main64330-50150-C0i199410-199707
W(REAR AIR CONDITIONER),BLACK,TRIM2#
sub64330-50151¥30,300
main64330-50150-C0i199707-199808
W(AIR CONDITIONER),BLACK,TRIM2#
sub64330-50151¥30,300
main64330-50150-E0i199410-199707
W(REAR AIR CONDITIONER),MEDIUM OAK,TRIM0#
sub64330-50151¥30,300
main64330-50150-E1i199707-199808
W(AIR CONDITIONER),SANDALWOOD,TRIM0#
sub64330-50151¥30,300
main64330-50150-G0i199410-199707
W(REAR AIR CONDITIONER),AGATE,TRIM6#
sub64330-50151¥30,300
main64330-50150-G0i199707-199808
W(AIR CONDITIONER),AGATE,TRIM6#
sub64330-50151¥30,300
main64330-50151-B0i199808-199908
W(REAR AIR CONDITIONER),BLUE GRAY,TRIM1#
main64330-50151-C0i199808-199908
W(REAR AIR CONDITIONER),BLACK,TRIM2#
main64330-50151-E1i199808-199908
W(REAR AIR CONDITIONER),SANDALWOOD,TRIM0#
main64330-50151-G0i199808-199908
W(REAR AIR CONDITIONER),AGATE,TRIM6#
main64330-50180-B0i199908
BLUE GRAY,TRIM1#
main64330-50180-C0i199908
BLACK,TRIM2#
main64330-50180-E0i199908
SANDALWOOD,TRIM0#
main64330-50180-G0i199908
AGATE,TRIM6#
main64330-50190-B0i199908
W(REAR AIR CONDITIONER),BLUE GRAY,TRIM1#
main64330-50190-C0i199908
W(REAR AIR CONDITIONER),BLACK,TRIM2#
main64330-50190-E0i199908
W(REAR AIR CONDITIONER),SANDALWOOD,TRIM0#
main64330-50190-G0i199908
W(REAR AIR CONDITIONER),AGATE,TRIM6#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
main90467-05125-C0i199410
BLACK,TRIM0#,1#,2#,6#
sub90467-05125¥90
main90467-05125-C0i199410
BLACK,TRIM0#,1#,2#
sub90467-05125¥90
64332COVER, PACKAGE TRAY TRIM
main64332-30220-B1i199808-199908
BLUE GRAY,TRIM1#
sub64332-30220¥130
main64332-30220-C0i199808-199908
BLACK,TRIM2#
sub64332-30220¥130
main64332-30220-E0i199808-199908
SANDAL WOOD,TRIM0#
sub64332-30220¥130
main64332-30220-G0i199808-199908
AGATE,TRIM6#
sub64332-30220¥130
64337GARNISH, PACKAGE TRAY TRIM, RH
main64337-50020-B0i199410
BLUE GRAY,TRIM1#
sub64337-50020¥3,710
main64337-50020-C0i199410
BLACK,TRIM2#
sub64337-50020¥3,710
main64337-50020-E0i199410-199707
OAK,TRIM0#
sub64337-50020¥3,710
main64337-50020-E1i199707
SANDAL WOOD,TRIM0#
sub64337-50020¥3,710
main64337-50020-G0i199410
AGATE,TRIM6#
sub64337-50020¥3,710
64339GARNISH, PACKAGE TRAY TRIM, LH
main64339-50020-B0i199410
BLUE GRAY,TRIM1#
sub64339-50020¥3,710
main64339-50020-C0i199410
BLACK,TRIM2#
sub64339-50020¥3,710
main64339-50020-E0i199410-199707
OAK,TRIM0#
sub64339-50020¥3,710
main64339-50020-E1i199707
SANDAL WOOD,TRIM0#
sub64339-50020¥3,710
main64339-50020-G0i199410
AGATE,TRIM6#
sub64339-50020¥3,710
64705AGUARD SUB-ASSY, SPARE WHEEL
main64705-50010i¥3,150199410
64707HGUARD SUB-ASSY, SPARE WHEEL, NO.2
main64707-50010i¥5,100199410
64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH
main64710-50110-C0i199410-199707
BLACK,TRIM0#,1#,2#
sub64710-50120¥12,200
main64710-50110-C0i199410-199707
BLACK,TRIM0#,1#,2#,6#
sub64710-50120¥12,200
main64710-50120-C0i199707
BLACK,TRIM0#,1#,2#
main64710-50120-C0i199707
BLACK,TRIM0#,1#,2#,6#
64711MAT, LUGGAGE COMPARTMENT FLOOR
main64711-50110-C0i199410
BLACK,TRIM0#,1#,2#
main64711-50110-C0i199410
BLACK,TRIM0#,1#,2#,6#
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
main90467-05125-C0i199410
BLACK,TRIM0#,1#,2#,6#
sub90467-05125¥90
main90467-05125-C0i199410
BLACK,TRIM0#,1#,2#
sub90467-05125¥90
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
main90467-05125-C0i199410
BLACK,TRIM0#,1#,2#
sub90467-05125¥90
main90467-05125-C0i199410
BLACK,TRIM0#,1#,2#,6#
sub90467-05125¥90
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
main64716-50030-C0i199410
BLACK,TRIM0#,1#,2#
main64716-50030-C0i199410
BLACK,TRIM0#,1#,2#,6#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
main64717-50070-C0i199410-199707
BLACK,TRIM0#,1#,2#,6#
sub64717-50090¥23,500
main64717-50080-C0i199410-199707
BLACK,TRIM0#,1#,2#
sub64717-50100¥23,500
main64717-50080-C0i199410-199707
W(REAR AIR CONDITIONER),BLACK,TRIM0#,1#,2#,6#
sub64717-50100¥23,500
main64717-50090-C0i199707
BLACK,TRIM0#,1#,2#,6#
main64717-50100-C0i199707
BLACK,TRIM0#,1#,2#
main64717-50100-C0i199707
W(AIR CONDITIONER),BLACK,TRIM0#,1#,2#,6#
64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
main90467-05125-C0i199410
BLACK,TRIM0#,1#,2#
sub90467-05125¥90
main90467-05125-C0i199410
BLACK,TRIM0#,1#,2#,6#
sub90467-05125¥90
64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH
main64720-50050-C0i199410-199707
BLACK,TRIM0#,1#,2#
sub64720-50060¥12,200
main64720-50050-C0i199410-199707
BLACK,TRIM0#,1#,2#,6#
sub64720-50060¥12,200
main64720-50060-C0i199707
BLACK,TRIM0#,1#,2#,6#
main64720-50060-C0i199707
BLACK,TRIM0#,1#,2#
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
main90467-06055-22i199707
BLACK,TRIM0#,1#,2#,6#
sub90467-06055¥130
main90467-06055-22i199707
BLACK,TRIM0#,1#,2#
sub90467-06055¥130
main90467-06055-B0i199410-199707
SHADOW GRAY,TRIM0#,1#,2#,6#
sub90467-06055¥130
main90467-06055-B0i199410-199707
SHADOW GRAY,TRIM0#,1#,2#
sub90467-06055¥130
64723ACOVER, LUGGAGE COMPARTMENT TRIM, INNER LOWER
main64723-50010i¥16,100199410
64726FHOOK, LUGGAGE COMPARTMENT TRIM, NO.2
main64726-50050i¥330199410-199502
64743COVER, SIDE TRIM TOOL BAG
main64743-50010-C0i199410
BLACK,TRIM0#,1#,2#
main64743-50010-C0i199410
BLACK,TRIM0#,1#,2#,6#
64749ACOVER, LUGGAGE COMPARTMENT DOOR STRIKER
main64749-50020-C0i199410
BLACK,TRIM0#,1#,2#,6#
main64749-50020-C0i199410
BLACK,TRIM0#,1#,2#
64749CCLIP(FOR LUGGAGE DOOR STRIKER COVER)
main90467-05125-C0i199410
BLACK,TRIM0#,1#,2#
sub90467-05125¥90
main90467-05125-C0i199410
BLACK,TRIM0#,1#,2#,6#
sub90467-05125¥90
64770COVER ASSY, SPARE WHEEL
main64771-24020i¥3,810199410
64791COVER, BACK DOOR TRIM
main64791-50070-C0i199410-199707
BLACK,TRIM0#,1#,2#
main64791-50070-C0i199410-199707
BLACK,TRIM0#,1#,2#,6#
main64791-50080-C0i199707
BLACK,TRIM0#,1#,2#
main64791-50080-C0i199707
BLACK,TRIM0#,1#,2#,6#
64791ACLIP(FOR BACK DOOR TRIM)
main90467-05125-C0i199410-199707
BLACK,TRIM0#,1#,2#
sub90467-05125¥90
main90467-05125-C0i199410-199707
BLACK,TRIM0#,1#,2#,6#
sub90467-05125¥90
6792195500RETAINER, FRONT DOOR SCUFF PLATE
main67921-95500¥200
9046710018
main90467-10018¥230
9046710161
main90467-10161¥90
9046804157
main90468-04157¥80
9046805047
main90468-05047¥90
9053014001
main90530-14001¥130

36 parts on this diagram · 1 diagram in section
