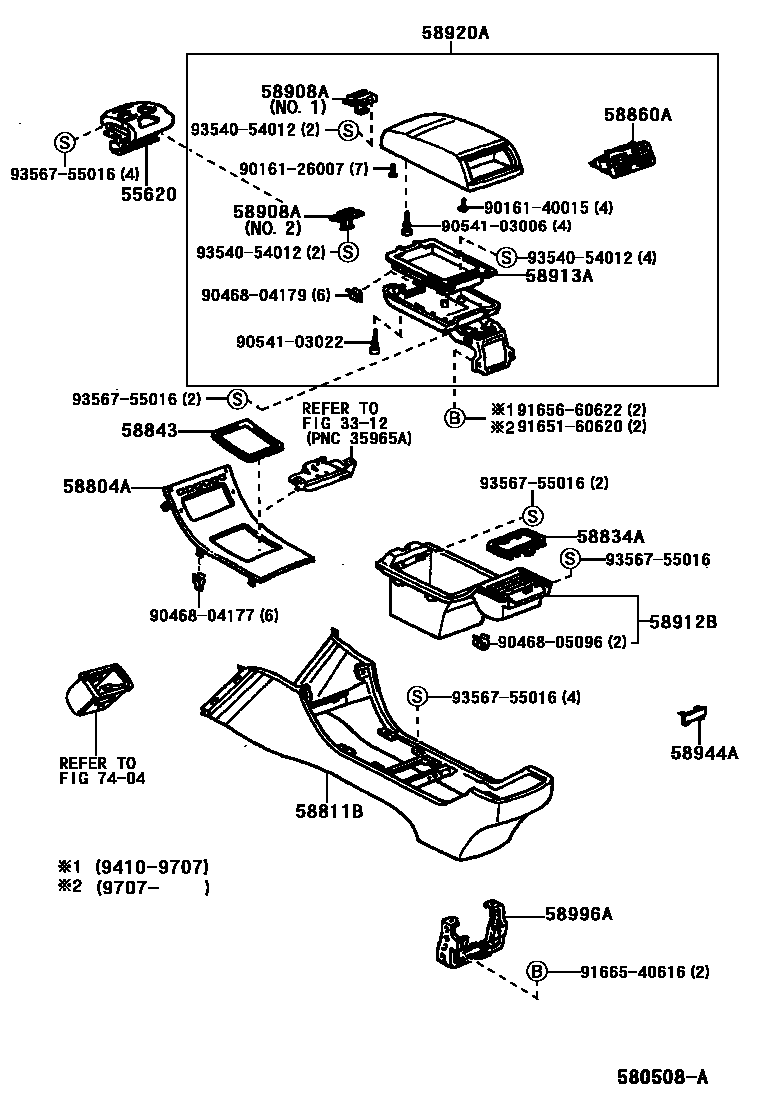

CONSOLE BOX & BRACKET
3312
55620HOLDER ASSY, INSTRUMENT PANEL CUP
58804APANEL SUB-ASSY, CONSOLE, UPPER
W(*TRC)
W/O(SEAT HEATER)
W(*TRC)
W(SEAT HEATER)
W/O(SEAT HEATER)
W(HEADLAMP CLEANER)
W(SEAT HEATER)
LEXUS 10TH ANNIVERSARY EDITION(EUROPE)
LEXUS 10TH ANNIVERSARY EDITION(G.C.C.)
LEXUS 10TH ANNIVERSARY EDITION(EUROPE) & W(SEAT HEATER)
58811BBOX, CONSOLE
IVORY,TRIM0#
IVORY,TRIM0#
BLUE GRAY,TRIM1#
BLACK,TRIM2#
AGATE,TRIM6#
58834ACOVER, CONSOLE, LOWER
58843BEZEL, SHIFTING HOLE
58860AREGISTER ASSY, CONSOLE BOX
58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
NO.1
NO.2
NO.1
58912BBOX, REAR CONSOLE, LOWER
58913APANEL, BOX, NO.3
58920AARMREST ASSY, REAR CONSOLE
NORWAY SPEC,IVORY,TRIM0#
IVORY,TRIM0#
NORWAY SPEC,BLUE GRAY,TRIM1#
BLUE GRAY,TRIM1#
BLACK,TRIM2#
NORWAY SPEC,BLACK,TRIM2#
AGATE,TRIM6#
NORWAY SPEC,AGATE,TRIM6#
W(LEATHER SEAT),IVORY,TRIM0#
W(LEATHER SEAT),BLUE GRAY,TRIM1#
W(LEATHER SEAT),BLACK,TRIM2#
W(LEATHER SEAT),AGATE,TRIM6#
58944ACOVER, CONSOLE, REAR
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
7404
9016126007
9016140015
9046804177
9046804179
9046805096
9165160620
9165660622
9166540616
9354054012
9356755016
24 parts on this diagram · 1 diagram in section
