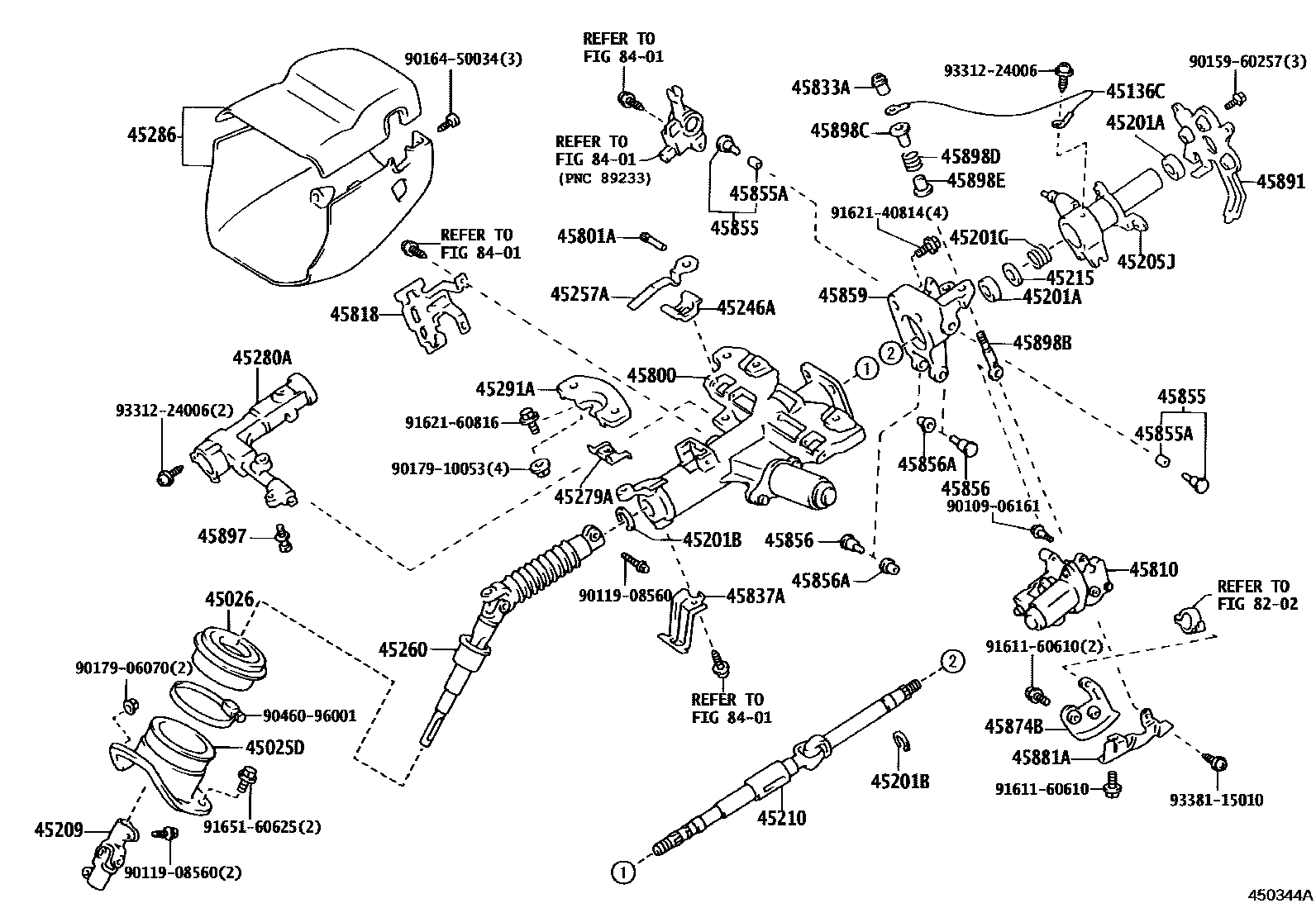

STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45026COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2
45201ABEARING(FOR STEERING MAIN SHAFT)
45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
T=1.20,LOWER
T=1.20,UPPER
T=0.5,LOWER
45201GSPRING, COMPRESSION(FOR STEERING MAIN SHAFT)
45209YOKE SUB-ASSY, STEERING SLIDING
45215COLLAR, MAIN SHAFT BEARING THRUST
45246AGUIDE, STEERING ENERGY ABSORBING PLATE
45257APLATE, STEERING COLUMN ENERGY ABSORBING
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45279AATTACHMENT, STEERING COLUMN TUBE, LWR
45286COVER, STEERING COLUMN
45291ASUPPORT, STEERING COLUMN TUBE
45800GEAR ASSY, TELESCOPIC STEERING, W/MOTOR
45801SUPPORT SUB-ASSY, STEERING POST
45801APIN SUB-ASSY, STEERING ENERGY ABSORBING
45810GEAR ASSY, TILT STEERING, W/MOTOR
45818BRACKET, CONNECTOR
45833NUT, TILT STEERING ADJUSTING, NO.1
45837ABRACKET, STEERLNG LOWER TUBE, NO.1
45855BOLT, TILT STEERING, NO.1
OD=20
OD=11.993-11.979
45855ABUSH(FOR TILT STEERING BOLT NO.1)
45856BOLT, TILT STEERING, NO.2
OD=16.2
45856ABUSH(FOR TILT STEERING BOLT NO.2)
45859SUPPORT, TILT STEERING HOUSING
45874BPROTECTOR, STEERING COLUMN, NO.1
45881APROTECTOR, STEERING COLUMN, NO.2
45897BOLT, STEERING LOCK SET
45898CSPACER(FOR TILT STEERING SUPPORT STOPPER BOLT)
45898DSPRING(FOR TILT STEERING SUPPORT STOPPER BOLT)
45898EBUSH(FOR TILT STEERING SUPPORT BOLT)
8202
8401
9010906161
main90109-06161
9011908560
main90119-08560
9015960257
main90159-60257
9016450034
main90164-50034
9017906070
main90179-06070
9017910053
main90179-10053
9046096001
main90460-96001
9161160610
main91611-60610
9162140814
main91621-40814
9162160816
main91621-60816
9165160625
main91651-60625
9331224006
main93312-24006
9338115010
main93381-15010
53 parts on this diagram · 3 diagrams in section
