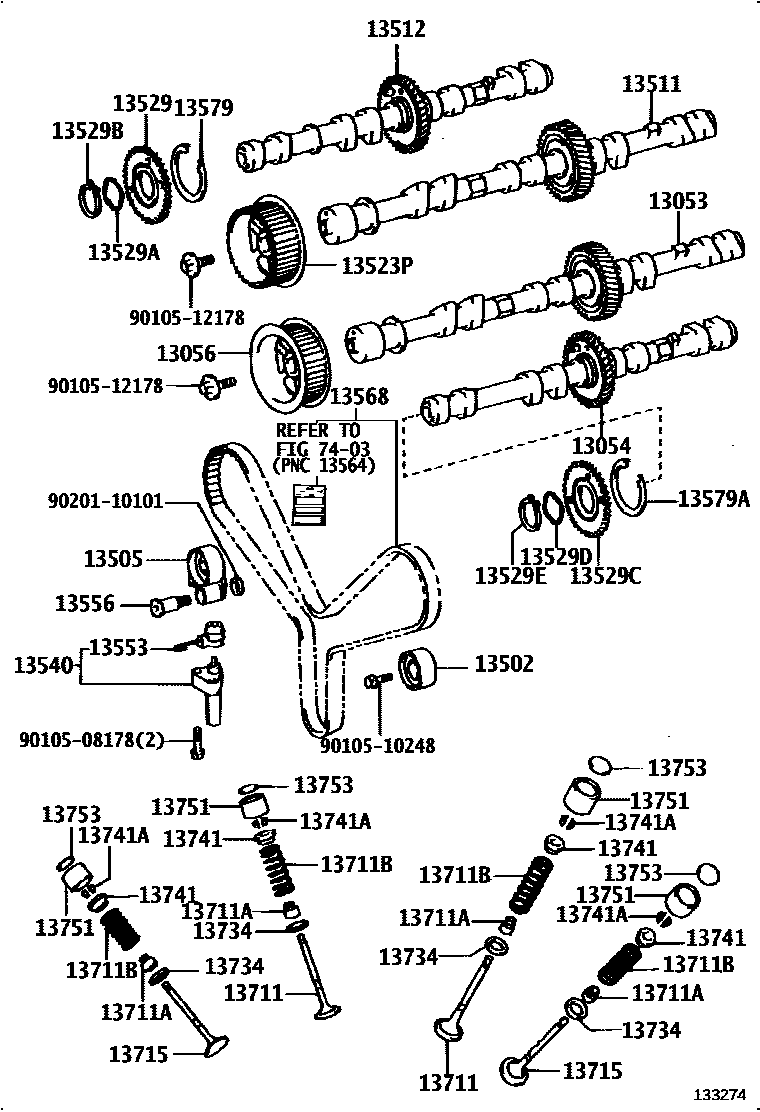

CAMSHAFT & VALVE
13053CAMSHAFT SUB-ASSY, NO.3
13054CAMSHAFT SUB-ASSY, NO.4
13502IDLER SUB-ASSY, TIMING BELT, NO.2
13505IDLER SUB-ASSY, TIMING BELT, NO.1
13529AWASHER, WAVE(FOR CAMSHAFT SUB GEAR)
13529BRING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR)
13529CGEAR, CAMSHAFT SUB, NO.3
13529DWASHER, WAVE(FOR CAMSHAFT SUB GEAR, NO.3)
13529ERING, SHAFT SNAP(FOR CAMSHAFT SUB GEAR, NO.3)
13556SHAFT, TIMING BELT IDLER
13579WASHER, CAMSHAFT TIMING GEAR BOLT
13579AWASHER, CAMSHAFT TIMING GEAR BOLT, NO.3
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
INTAKE
EXHAUST
INTAKE
13741RETAINER, VALVE SPRING
13741ALOCK, VALVE SPRING RETAINER
13753SHIM, VALVE ADJUSTING
T=2.000,MARK 00
T=2.020,MARK 02
T=2.040,MARK 04
T=2.060,MARK 06
T=2.080,MARK 08
T=2.100,MARK 10
T=2.120,MARK 12
T=2.140,MARK 14
T=2.160,MARK 16
T=2.180,MARK 18
T=2.200,MARK 20
T=2.220,MARK 22
T=2.240,MARK 24
T=2.260,MARK 26
T=2.280,MARK 28
T=2.300,MARK 30
T=2.320,MARK 32
T=2.340,MARK 34
T=2.360,MARK 36
T=2.380,MARK 38
T=2.400,MARK 40
T=2.420,MARK 42
T=2.440,MARK 44
T=2.460,MARK 46
T=2.480,MARK 48
T=2.500,MARK 50
T=2.520,MARK 52
T=2.540,MARK 54
T=2.560,MARK 56
T=2.580,MARK 58
T=2.600,MARK 60
T=2.620,MARK 62
T=2.640,MARK 64
T=2.660,MARK 66
T=2.680,MARK 68
T=2.700,MARK 70
T=2.720,MARK 72
T=2.740,MARK 74
T=2.760,MARK 76
T=2.780,MARK 78
T=2.800,MARK 80
T=2.50,MARK 01
T=2.60,MARK 06
T=2.70,MARK 13
T=2.75,MARK 18
T=2.80,MARK 23
T=2.85,MARK 28
T=2.90,MARK 33
T=2.95,MARK 38
T=3.00,MARK 43
T=3.05,MARK 48
T=3.10,MARK 51
T=3.20,MARK 56
T=3.30,MARK 61
T=2.525,MARK 62
T=2.55,MARK 63
T=2.575,MARK 64
T=2.625,MARK 65
T=2.65,MARK 66
T=2.675,MARK 67
T=2.725,MARK 68
T=2.775,MARK 69
T=2.825,MARK 70
T=2.875,MARK 71
T=2.925,MARK 72
T=2.975,MARK 73
T=3.025,MARK 74
T=3.075,MARK 75
T=3.125,MARK 76
T=3.15,MARK 77
T=3.175,MARK 78
T=3.225,MARK 79
T=3.25,MARK 80
T=3.275,MARK 81
7403
9010508178
main90105-08178
9010510248
main90105-10248
9010512178
main90105-12178
9020110101
main90201-10101
34 parts on this diagram · 2 diagrams in section
