STANDARD TOOL

09110JACK ASSY

main09110-50030iUCF20..ARL199410-199707

main09111-22060iUCF20..EUR,GEN,V199410-199707

main09111-30120iUCF20..EUR,GEN,V199707

main09111-30130iUCF20..ARL199707

09113HANDLE, JACK

main09113-50010iUCF20199410

09120ACASE, TOOL

main09120-50030-C0iUCF20..V..5FC;UCF20..(GEN,V)..4FC199410

SOUTH AFRICA SPEC,BLACK,TRIM0#,1#,2#,6#

main09120-50030-C0iUCF20..RHD..EUR199410

BLACK,TRIM0#,1#,2#

main09120-50030-C0iUCF20..GEN199707

BLACK,TRIM0#,1#,2#,6#

main09120-50040-C0iUCF20..GEN199410

BLACK,TRIM0#,1#,2#,6#

main09120-50040-C0iUCF20..ARL,EUR199410

HONG KONG SPEC,BLACK,TRIM0#,1#,2#,6#

main09120-50040-C0iUCF20..V199908

CHINA SPEC,BLACK,TRIM0#,1#,2#

09130PLIERS

main09130-50030iUCF20199410

09135DRIVER, SCREW

main09135-50040iUCF20199410

09141SPANNER

main09141-50050iUCF20199410

8 X 10

main09141-50060iUCF20199410

12 X 14

09150WRENCH, HUB NUT BOX

main09150-50010iUCF20199410

sub09150-53010

09155WRENCH, SPARK PLUG

main09155-50010iUCF20..V;UCF20..RHD..(EUR,GEN)199410

09184STOPPER, WHEEL

main09184-50010iUCF20199410

09197LIGHT, PEN

main09197-50030iUCF20..ARL,EUR,GEN199410-199908

6403

75210BOX ASSY, TOOL

main75210-50010iUCF20..GEN,V199410-199503

SOUTH AFRICA SPEC

sub75210-50020

main75210-50020iUCF20..ARL,EUR199410-199503

HONG KONG SPEC

main75210-50020iUCF20199503

9098111045

main90981-11045

9151160610

main91511-60610

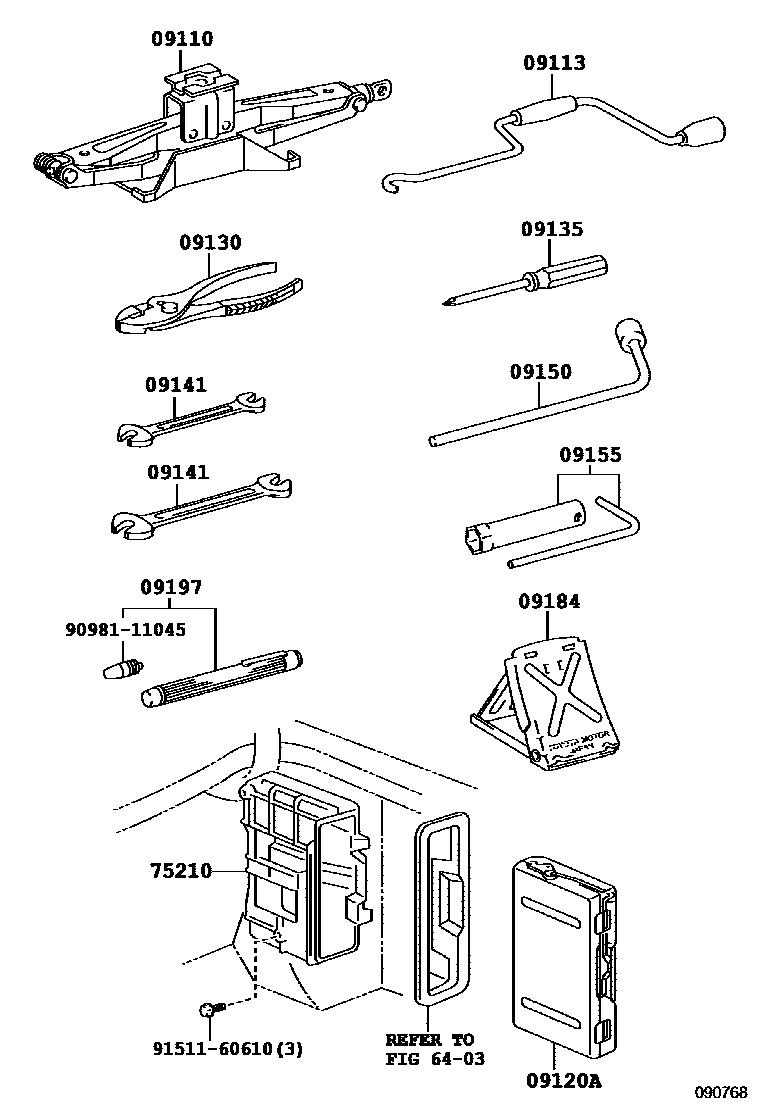

14 parts on this diagram · 1 diagram in section
