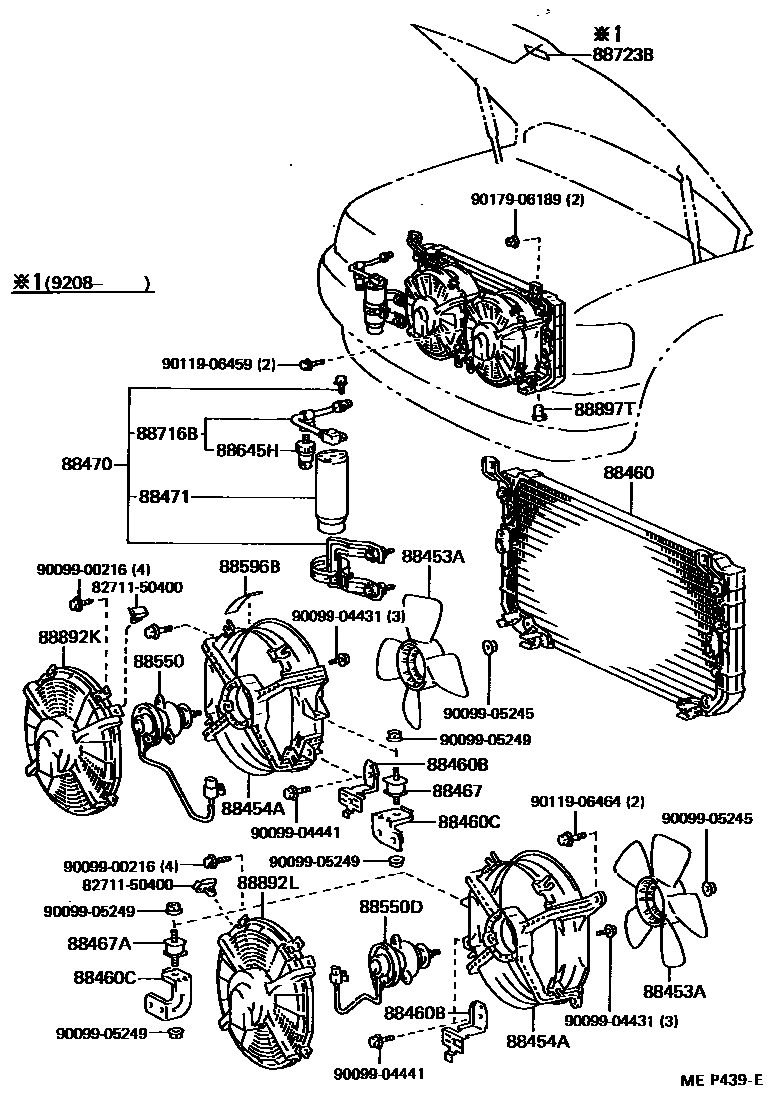

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1EUR=SOUTH AFRICA SPEC & ISRAE0004 1 0005 1 0006 1 0007 1 0008 1REAR COOLER PIPING 0009 1O RING

88453AFAN, COOLING

main88453-50010iUCF10198912-199410

RH

main88453-50020iUCF10..RHD..EUR199208-199410

SOUTH AFRICA SPEC,LH

88454ASHROUD, FAN

main88454-50010iUCF10198912-199410

RH

main88454-50020iUCF10..ARL,GEN,V198912-199410

LH

88460CONDENSER ASSY, COOLER

main88460-50020iUCF10198912-199208

main88460-50090iUCF10199208-199410

88460BBRACKET, COOLER CONDENSER, NO.1

main88688-50020iUCF10..ARL,GEN,V198912-199208

RH

main88688-50040iUCF10..ARL,GEN,V198912-199208

LH

main88688-50080iUCF10..RHD..EUR199208-199410

RH

main88688-50090iUCF10..RHD..EUR199208-199410

LH

88460CBRACKET, COOLER CONDENSER, NO.2

main88688-50010iUCF10198912-199410

RH

main88688-50030iUCF10..ARL,GEN,V198912-199410

LH

88467CUSHION, COOLER CONDENSER, NO.1

main88467-50010iUCF10198912-199410

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-50010iUCF10..RHD..EUR199208-199410

SOUTH AFRICA SPEC

88470RECEIVER & DRYER ASSY, COOLER

main88470-50010iUCF10..ARL,EUR,GEN198912-199208

main88470-50020iUCF10..V198912-199208

main88470-50050iUCF10..ARL,EUR,GEN199208-199410

main88470-50060iUCF10..V199208-199410

88471TANK, RECEIVER AIR CONDITIONER

main88471-20050iUCF10..ARL,EUR,GEN199208-199410

sub88471-34010

main88471-30330iUCF10..V198912-199208

sub88471-30350

main88471-50010iUCF10..ARL,EUR,GEN198912-199208

sub88471-16040

main88471-50020iUCF10..V199208-199410

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main88550-50010iUCF10..ARL,GEN,V198912-199208

main88550-50030iUCF10..EUR198912-199208

main88550-50040iUCF10..RHD..EUR199208-199410

SOUTH AFRICA SPEC

main88550-50050iUCF10..EUR199208-199410

88550DMOTOR ASSY, BLOWER

main88550-50010iUCF10..ARL,GEN,V198912-199208

main88550-50040iUCF10..RHD..EUR199208-199410

SOUTH AFRICA SPEC

88596BPLATE, CAUTION, NO.1

main88723-20040iUCF10..EUR199208-199410

main88723-50040iUCF10198912-199208

main88723-50100iUCF10..RHD..EUR199208-199410

SOUTH AFRICA SPEC

88645HSWITCH, PRESSURE NO.1

main88645-20040iUCF10199012-199208

main88645-20050iUCF10199208-199410

main88645-50010iUCF10198912-199012

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88710-50170iUCF10199208-199410

main88716-50030iUCF10198912-199208

88723BLABEL, COOLER SERVICE CAUTION

main88723-20040iUCF10..RHD..EUR199208-199410

SOUTH AFRICA SPEC

main88723-33020iUCF10..LHD..EUR199109-199208

*FRG

88892KCOVER, COOLING, RH

main88892-50020iUCF10198912-199410

88892LCOVER, COOLING, LH

main88892-50020iUCF10..ARL,GEN,V198912-199410

88897TGROMMET, COOLER

main88897-50010×2iUCF10198912-199410

8271150400WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-50400

9009900216

main90099-00216

9009904431

main90099-04431

9009904441

main90099-04441

9009905245

main90099-05245

9009905249

main90099-05249

9011906459

main90119-06459

9011906464

main90119-06464

9017906189

main90179-06189

27 parts on this diagram · 7 diagrams in section
