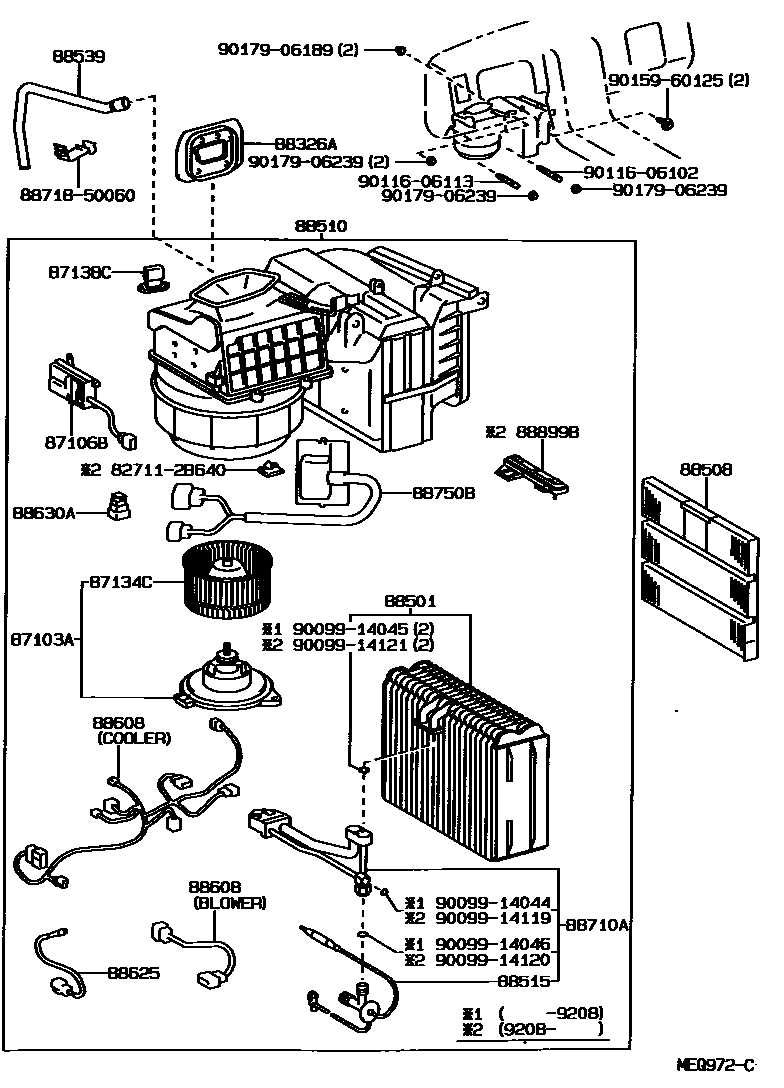

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1FRONT COOLER 0002 1FRONT COOLER 0003 1REAR COOLER

87103AMOTOR SUB-ASSY, COOLING UNIT, W/FAN

main87103-50010iUCF10..LHD198912-199410

main87103-50020iUCF10..RHD198912-199208

87106BSERVO SUB-ASSY, DAMPER(FOR COOLING UNIT)

main87106-50040iUCF10..LHD198912-199410

main87106-50080iUCF10..RHD198912-199410

87134CFAN, BLOWER(FOR COOLING UNIT)

main87134-30040iUCF10..RHD198912-199208

main87134-30050iUCF10..LHD198912-199410

87138CRESISTOR, BLOWER

main87138-50010iUCF10198912-199410

88326APLATE, COVER

main88326-50010iUCF10..LHD198912-199410

main88326-50020iUCF10..RHD198912-199410

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-50010iUCF10..LHD198912-199105

sub88501-50011

main88501-50011iUCF10..LHD199105-199112

sub88501-50012

main88501-50012iUCF10..LHD199112-199208

sub88501-50110

main88501-50020iUCF10..RHD198912-199105

sub88501-50021

main88501-50021iUCF10..RHD199105-199112

sub88501-50022

main88501-50022iUCF10..RHD199112-199208

sub88501-50120

main88501-50050iUCF10..RHD199208-199308

sub88501-50100

main88501-50070iUCF10..LHD199208-199308

sub88501-50090

main88501-50090iUCF10..LHD199308-199410

sub88501-50200

main88501-50100iUCF10..RHD199308-199410

sub88501-50180

88508FILTER SUB-ASSY, CLEAN AIR

main88880-50010iUCF10..LHD199208-199410

main88880-50020iUCF10..RHD199208-199410

88510UNIT ASSY, COOLER

main88510-50020iUCF10..LHD198912-199105

sub88510-50021

main88510-50021iUCF10..LHD199105-199208

main88510-50030iUCF10..RHD..EUR198912-199105

sub88510-50031

main88510-50031iUCF10..RHD..EUR199105-199208

main88510-50040iUCF10..ARL,GEN198912-199105

sub88510-50041

main88510-50041iUCF10..ARL,GEN199105-199208

main88510-50080iUCF10..LHD199208-199410

main88510-50100iUCF10..ARL,GEN199208-199410

main88510-50110iUCF10..RHD..EUR199208-199410

88515VALVE, COOLER EXPANSION

main88515-50010iUCF10..ARL,GEN198912-199110

sub88515-50011

main88515-50011iUCF10..ARL,GEN199110-199208

sub88515-50060

main88515-50020iUCF10..EUR,V198912-199110

sub88515-50021

main88515-50021iUCF10..EUR,V199110-199208

main88515-50030iUCF10..ARL,GEN199208-199312

sub88515-50031

main88515-50031iUCF10..ARL,GEN199312-199410

main88515-50040iUCF10..EUR,V199208-199410

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-50010iUCF10..LHD198912-199410

main88539-50020iUCF10..RHD198912-199410

88608HARNESS SUB-ASSY, WIRING AIR CONDITIONER

main88608-50010iUCF10..LHD198912-199208

COOLER

main88608-50020iUCF10198912-199410

BLOWER

main88608-50060iUCF10..RHD198912-199208

COOLER

main88608-50070iUCF10..LHD199208-199410

COOLER

main88608-50090iUCF10..RHD199208-199410

COOLER

88625THERMISTOR, COOLER, NO.1

main88625-32040iUCF10198912-199410

main88625-50100iUCF10..ARL,GEN199208-199410

88630RELAY ASSY, COOLER

main90987-02004iUCF10..V198912-199410

88630ARELAY ASSY, COOLER

main88630-50010iUCF10198912-199410

88710ATUBE ASSY, AIR CONDITIONER

main88710-50030iUCF10..LHD198912-199208

main88710-50040iUCF10..ARL,GEN198912-199208

main88710-50050iUCF10..RHD..EUR198912-199208

main88710-50240iUCF10..LHD199208-199410

main88710-50250iUCF10..ARL,GEN199208-199410

main88710-50260iUCF10..RHD..EUR199208-199410

88750BTRANSISTOR ASSY, BLOWER RESISTOR

main88750-50010iUCF10..LHD198912-199208

main88750-50020iUCF10..RHD198912-199208

main88750-50030iUCF10..LHD199208-199410

main88750-50040iUCF10..RHD199208-199410

88899BCOVER, COOLER CONTROL

main88891-50010iUCF10..LHD199208-199410

main88891-50020iUCF10..RHD199208-199410

827112B640WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B640

8871850060PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-50060

9009914044

main90099-14044

9009914045

main90099-14045

9009914046

main90099-14046

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9011606102

main90116-06102

9011606113

main90116-06113

9015960125

main90159-60125

9017906189

main90179-06189

9017906239

main90179-06239

30 parts on this diagram · 3 diagrams in section
