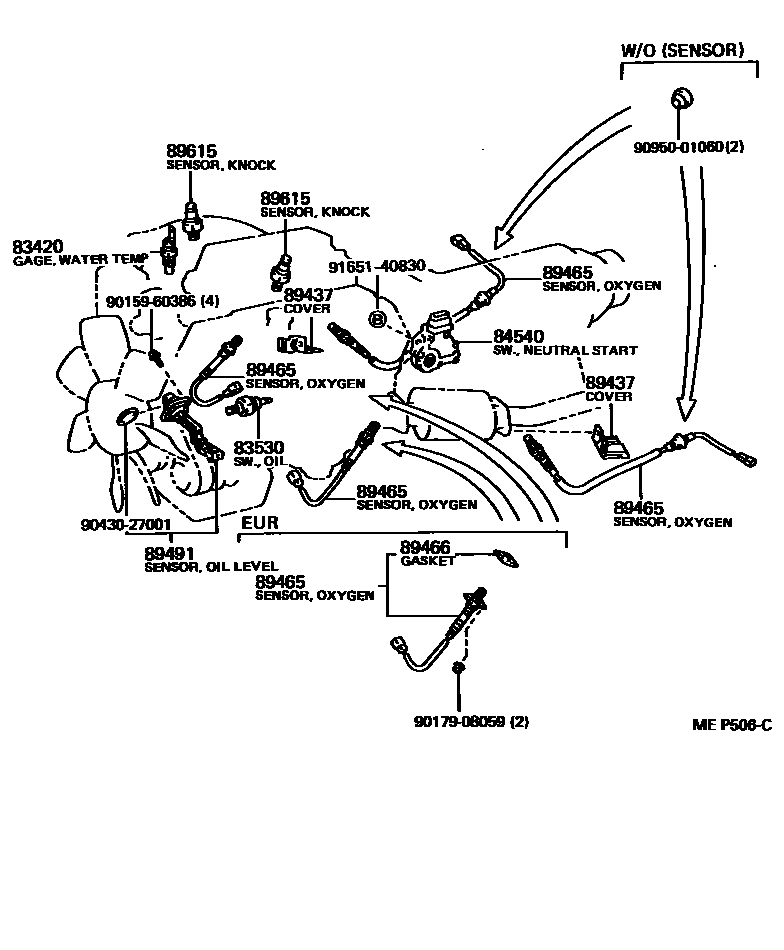

SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1

83420GAGE ASSY, WATER TEMPERATURE SENDER

main83420-16020iUCF10198912-199208

main83420-16050iUCF10199208-199410

sub83420-20040

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-14060iUCF10199208-199410

sub83530-30090

main83530-30080iUCF10198912-199208

sub83530-60040

84540SWITCH ASSY, NEUTRAL START

main84540-30270iUCF10199208-199410

TOKAIRIKA

main84540-30280iUCF10199208-199410

MATSUSHITA

sub84540-30270

main84540-50010iUCF10198912-199208

89437COVER, SENSOR

main89437-50010iUCF10..ARL,EUR198912-199410

RH

main89437-50020iUCF10..GEN198912-199410

LH

89465SENSOR, OXYGEN

main89465-50010iUCF10..GEN198912-199410

FRONT

main89465-50020iUCF10..ARL,EUR198912-199208

REAR

main89465-50050iUCF10..ARL,EUR199208-199410

REAR

main89465-59015iUCF10..ARL199208-199410

SINGAPORE SPEC,FRONT

main89465-59015iUCF10..EUR198912-199410

FRONT

89466GASKET, OXYGEN SENSOR

main89466-20020iUCF10..EUR198912-199410

89491SENSOR, ENGINE OIL LEVEL

main89491-30030iUCF10199109-199208

main89491-50010iUCF10198912-199109

main89491-50020iUCF10199208-199410

89615SENSOR, KNOCK CONTROL

main89615-20010iUCF10198912-199005

main89615-50010iUCF10199005-199410

9015960386

main90159-60386

9017908059

main90179-08059

9043027001

main90430-27001

9095001060

main90950-01060

9165140830

main91651-40830

13 parts on this diagram · 13 diagrams in section
