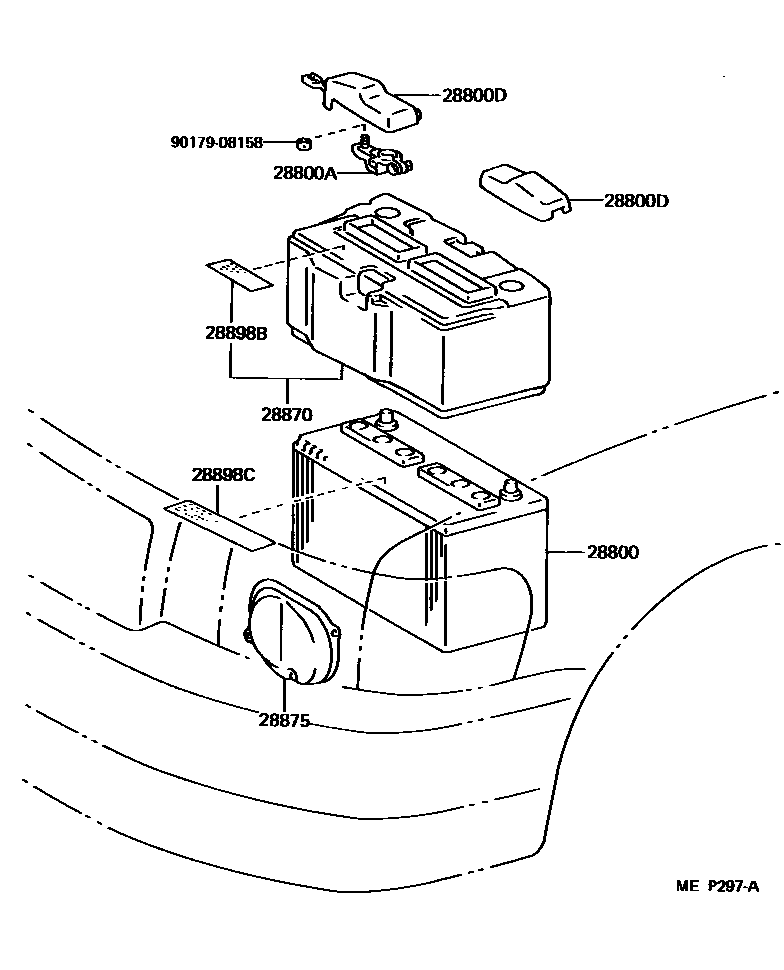

BATTERY & BATTERY CABLE

28800BATTERY

main28800-42130i1UZFE..UCF10198912-199410

75D31L

sub28800-42010

main28800-64180i1UZFE..UCF10..LHD..EUR198912-199410

95D31L,COLD SPEC

sub28800-64182

main28800-64180i1UZFE..UCF10..V199304-199410

95D31L,CHINA SPEC

sub28800-64182

28800ATERMINAL, BATTERY POSITIVE

main90982-05037i1UZFE..UCF10198912-199410

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-50050i1UZFE..UCF10198912-199410

POSITIVE

main82821-50060i1UZFE..UCF10198912-199410

NEGATIVE

28870INSULATOR ASSY, BATTERY

main28870-50010i1UZFE..UCF10198912-199208

main28870-50040i1UZFE..UCF10199208-199410

28875DUCT, BATTERY INSULATOR, NO.1

main28875-50010i1UZFE..UCF10198912-199410

28898BPLATE, BATTERY

main28898-50010i1UZFE..UCF10198912-199208

main28898-50090i1UZFE..UCF10199208-199410

28898CPLATE, BATTERY

main28898-50070i1UZFE..UCF10..LHD..EUR199110-199410

NORWAY SPEC

9017908158

main90179-08158

8 parts on this diagram · 1 diagram in section
