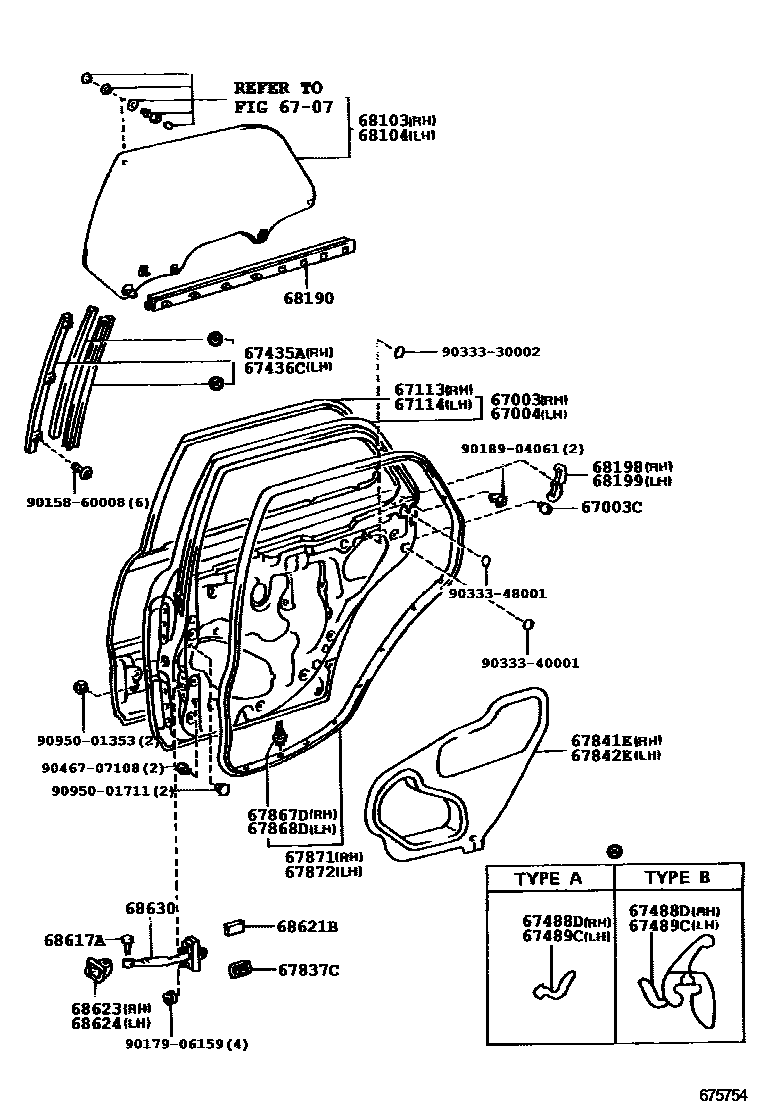

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-50011iUCF10¥70,800199103-199410

main67003-50902iUCF10¥71,500198912-199103

sub67003-50011¥70,800

main67003-50903iUCF10..EUR,GEN¥71,500198912-199101

sub67003-50021¥70,800

67003CCUSHION, REAR DOOR PANEL

main90541-10020iUCF10¥190199001-199410

main90541-10020iUCF10¥190198912-199001

RH

main90541-10022iUCF10¥120198912-199001

LH

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-50011iUCF10¥70,800199103-199410

main67004-50902iUCF10..ARL,V¥71,500198912-199103

sub67004-50011¥70,800

main67004-50903iUCF10..EUR,GEN¥71,500198912-199101

sub67004-50021¥70,800

6707

67113PANEL, REAR DOOR, OUTER RH

main67113-50011iUCF10¥30,700199103-199410

main67113-50901iUCF10¥31,100198912-199103

sub67113-50011¥30,700

67114PANEL, REAR DOOR, OUTER LH

main67114-50011iUCF10¥30,700199103-199410

main67114-50901iUCF10¥31,100198912-199103

sub67114-50011¥30,700

67435AGUIDE, REAR DOOR WINDOW, FRONT RH

main67435-50010iUCF10¥6,300198912-199410

67436CGUIDE, REAR DOOR WINDOW, FRONT LH

main67436-50010iUCF10¥6,300198912-199410

67488DWEATHERSTRIP, REAR DOOR GLASS GUIDE, NO.4

main67488-50010iUCF10¥540198912-199410

TYPE A

main67488-50020iUCF10¥740198912-199410

TYPE B

67489CWEATHERSTRIP, REAR DOOR GLASS GUIDE, NO.5

main67489-50010iUCF10¥540198912-199410

TYPE A

main67489-50020iUCF10¥740198912-199410

TYPE B

67837CSEAL, REAR DOOR DUST PROOF

main67837-50020iUCF10..ARL¥390198912-199410

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67805-50010iUCF10¥1,350198912-199410

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67806-50010iUCF10¥1,340198912-199410

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67868-50010iUCF10¥140198912-199410

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67868-50010iUCF10¥140198912-199410

67871WEATHERSTRIP, REAR DOOR, RH

main67871-50011iUCF10¥6,300198912-199410

67872WEATHERSTRIP, REAR DOOR, LH

main67872-50011iUCF10¥6,300198912-199410

68103GLASS SUB-ASSY, REAR DOOR, RH

main68103-50010iUCF10¥43,200198912-199108

*TT,T=4.0,BRONZE

sub68103-50011¥43,200

main68103-50011iUCF10¥43,200199108-199208

*TT,T=4.0,BRONZE

sub68103-50012¥43,200

main68103-50012iUCF10¥43,200199208-199410

*TT,T=4.0,BRONZE

main68103-50020iUCF10..EUR,GEN,V¥36,000198912-199108

*TT,T=4.0,BLUE

sub68103-50021¥36,000

main68103-50021iUCF10..ARL¥36,000199108-199208

*TT,T=4.0,BLUE

sub68103-50022¥36,000

main68103-50022iUCF10¥36,000199208-199410

*TT,T=4.0,BLUE

main68103-50030iUCF10..EUR,GEN,V¥46,700198912-199108

*TT,T=4.0,GRAY

sub68103-50031¥46,700

main68103-50031iUCF10..EUR,GEN,V¥46,700199108-199208

*TT,T=4.0,GRAY

sub68103-50032¥46,700

main68103-50032iUCF10¥46,700199208-199410

*TT,T=4.0,GRAY

sub68103-50012¥43,200

68104GLASS SUB-ASSY, REAR DOOR, LH

main68104-50010iUCF10¥43,200198912-199108

*TT,T=4.0,BRONZE

sub68104-50011¥43,200

main68104-50011iUCF10¥43,200199108-199208

*TT,T=4.0,BRONZE

sub68104-50012¥43,200

main68104-50012iUCF10¥43,200199208-199410

*TT,T=4.0,BRONZE

main68104-50020iUCF10..ARL¥36,000198912-199108

*TT,T=4.0,BLUE

sub68104-50021¥36,000

main68104-50021iUCF10..EUR,GEN,V¥36,000199108-199208

*TT,T=4.0,BLUE

sub68104-50022¥36,000

main68104-50022iUCF10¥36,000199208-199410

*TT,T=4.0,BLUE

main68104-50030iUCF10..EUR,GEN,V¥46,700198912-199108

*TT,T=4.0,GRAY

sub68104-50031¥46,700

main68104-50031iUCF10..EUR,GEN,V¥46,700199108-199208

*TT,T=4.0,GRAY

sub68104-50032¥46,700

main68104-50032iUCF10¥46,700199208-199410

*TT,T=4.0,GRAY

sub68104-50012¥43,200

68190WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER

main68190-50010iUCF10¥3,950198912-199410

RH

main68240-50010iUCF10¥3,950198912-199410

LH

68198SEAL, REAR DOOR BELT, REAR RH

main68198-50010iUCF10¥1,340198912-199208

68199SEAL, REAR DOOR BELT, REAR LH

main68199-50010iUCF10¥1,340198912-199208

68617APIN, REAR DOOR CHECK

main68617-50010iUCF10¥140198912-199410

68621BSEAL, DOOR CHECK

main68621-50020iUCF10..ARL¥190198912-199410

68623COVER, DOOR CHECK, RH

main68623-50010iUCF10¥550198912-199410

68624COVER, DOOR CHECK, LH

main68624-50010iUCF10¥550198912-199410

68630CHECK ASSY, REAR DOOR

main68630-50010iUCF10¥3,830198912-199001

RH

sub68630-50011¥3,790

main68630-50011iUCF10¥3,790199001-199402

RH

sub68630-50012¥3,790

main68630-50012iUCF10¥3,790199402-199410

RH

main68640-50010iUCF10¥3,830198912-199001

LH

sub68640-50011¥3,790

main68640-50011iUCF10¥3,790199001-199402

LH

sub68640-50012¥3,790

main68640-50012iUCF10¥3,790199402-199410

LH

9015860008

main90158-60008¥130

9017906159

main90179-06159¥70

9018904061

main90189-04061¥180

9033330002

main90333-30002¥70

9033340001

main90333-40001¥100

9033348001

main90333-48001¥60

9046707108

main90467-07108¥200

9095001353

main90950-01353¥130

9095001711

main90950-01711¥100

36 parts on this diagram · 3 diagrams in section
