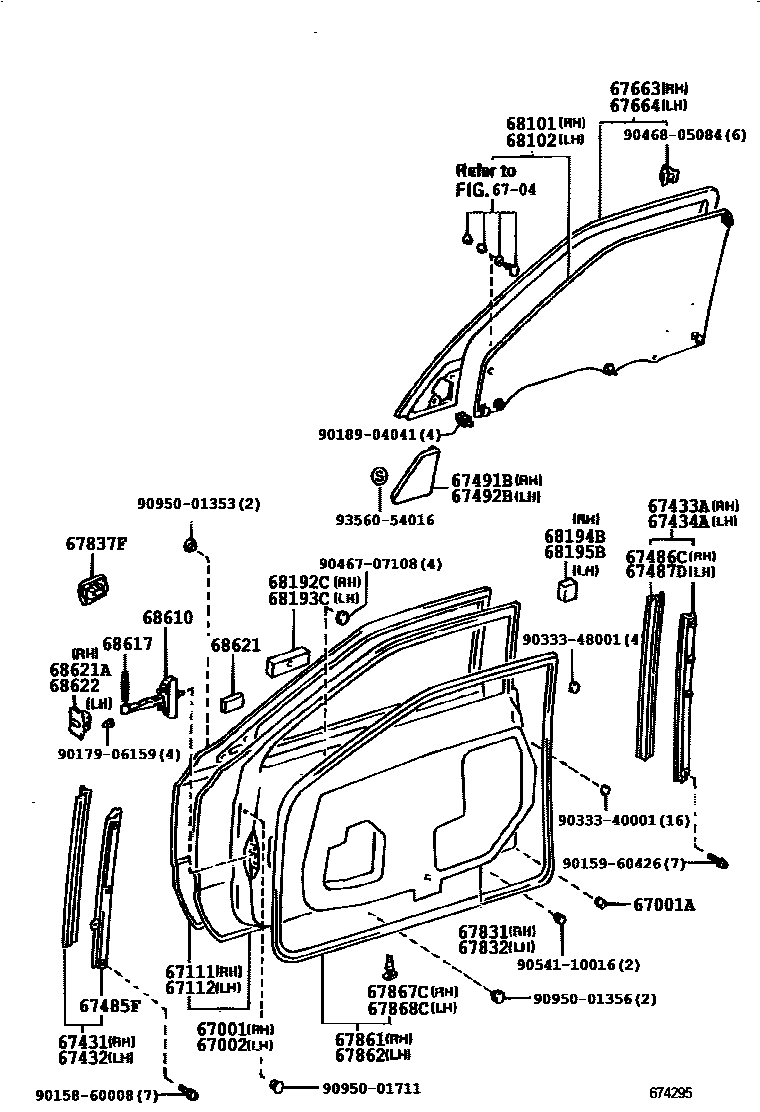

FRONT DOOR PANEL & GLASS
67001ACUSHION, FRONT DOOR PANEL
sub90541-12009
6704
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67431GUIDE, FRONT DOOR WINDOW, FRONT RH
67432GUIDE, FRONT DOOR WINDOW, FRONT LH
67485FWEATHERSTRIP, FRONT DOOR GLASS GUIDE, NO.1
RH
LH
67491BGARNISH, FRONT DOOR WINDOW UPPER BRACKET, RH
67492BGARNISH, FRONT DOOR WINDOW UPPER BRACKET, LH
67663GARNISH, DOOR FRAME, UPPER RH
67664GARNISH, DOOR FRAME, UPPER LH
67837FSEAL, DOOR DUST PROOF
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
68101GLASS SUB-ASSY, FRONT DOOR, RH
*TT,T=5.0=BRONZE
*TT,T=5.0,BLUE
68102GLASS SUB-ASSY, FRONT DOOR, LH
*TT,T=5.0,BRONZE
*TT,T=5.0,BLUE
68192CSEAL, FRONT DOOR BELT, FRONT RH
68193CSEAL, FRONT DOOR BELT, FRONT LH
68194BSEAL, FRONT DOOR BELT, REAR RH
sub61824-12120
68195BSEAL, FRONT DOOR BELT, REAR LH
sub61824-12120
68610CHECK ASSY, FRONT DOOR
RH
LH
68617PIN, FRONT DOOR CHECK
68621SEAL, DOOR CHECK
68621ACOVER, FRONT DOOR CHECK, RH
68622COVER, FRONT DOOR CHECK, LH
9015860008
main90158-60008
9015960426
main90159-60426
9017906159
main90179-06159
9018904041
main90189-04041
9033340001
main90333-40001
9033348001
main90333-48001
9046707108
main90467-07108
9046805084
main90468-05084
9054110016
main90541-10016
9095001353
main90950-01353
9095001356
main90950-01356
9095001711
main90950-01711
9356054016
main93560-54016
48 parts on this diagram · 3 diagrams in section
