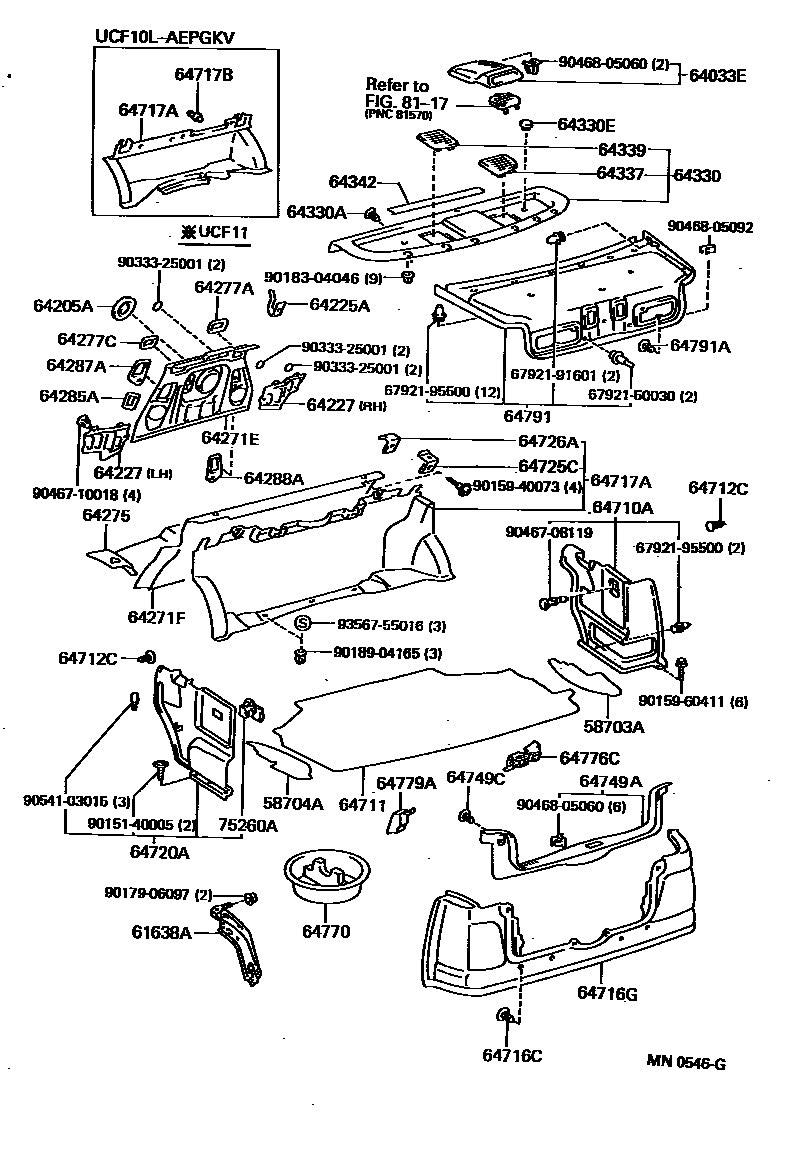

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
W(CD PLAYER)
58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH
61638ABRACE, QUARTER PANEL, LH
64033EGRILLE SUB-ASSY, REAR SPEAKER
SHADOW GRAY,TRIM1#
DEEP RED,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
DARK ROSE,TRIM4#
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
OAK,TRIM0#
DK. BLUE,TRIM8#
TAUPE,TRIM9#
64205ACOVER SUB-ASSY, ROOM PARTITION
64225AHANGER, REAR SEAT CUSHION SUPPORT
64227EXTENSION, CENTER FLOOR TO BRACE
RH
LH
64271EPANEL, ROOM PARTITION
64271FTRIM, ROOM PARTITION
64275PAD, ROOM PARTITION TRIM, NO.2
64277AMOULDING, ROOM PARTITION TRIM
64277CCOVER, ROOM PARTITION, NO.2
64285ACOVER, ROOM PARTITION, NO.3
64287ACOVER, ROOM PARTITION, NO.4 RH
64288ACOVER, ROOM PARTITION, NO.4 LH
64330PANEL ASSY, PACKAGE TRAY TRIM
SHADOW GRAY,TRIM1#
BLACK,TRIM2#
OAK,TRIM0#
DK. BLUE,TRIM8#
TAUPE,TRIM9#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64330EPLUG(FOR PACKAGE TRAY TRIM PANEL)
64337GARNISH, PACKAGE TRAY TRIM, RH
64339GARNISH, PACKAGE TRAY TRIM, LH
DEEP RED,TRIM3#
SHADOW GRAY,TRIM1#
DARK BLUE,TRIM8#
GREIGE,TRIM0#
DARK ROSE,TRIM4#
OAK,TRIM0#
TAUPE,TRIM9#
SHADOW GRAY,TRIM1#
DK. BLUE,TRIM8#
64342COVER, PACKAGE TRAY TRIM, UNDER
64710ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, RH
W(CD PLAYER),BLACK,TRIM0#,1#,4#,8#
W(CD PLAYER),BLACK,TRIM0#,1#,3#,4#,8#
BLACK,TRIM0#,1#,4#,8#
BLACK,TRIM0#,1#,4#,8#
W(CD PLAYER),BLACK,TRIM0#,1#,4#,8#
W(CD PLAYER),BLACK,TRIM0#,1#,2#,8#
W(CD PLAYER),BLACK,TRIM0#,1#,2#,8#
BLACK,TRIM0#,1#,4#,8#
BLACK,TRIM0#,1#,3#,4#,8#
64711MAT, LUGGAGE COMPARTMENT FLOOR
BLACK,TRIM0#,1#,4#,8#
BLACK,TRIM0#,1#,4#,8#
W(CD PLAYER),BLACK,TRIM0#,1#,4#,8#
BLACK,TRIM0#,1#,3#,4#,8#
BLACK,TRIM0#,1#,4#,8#
W(CD PLAYER),BLACK,TRIM0#,1#,3#,4#,8#
W(CD PLAYER),BLACK,TRIM0#,1#,4#,8#
W(CD PLAYER),BLACK,TRIM0#,1#,2#,8#
W(CD PLAYER),BLACK,TRIM0#,1#,2#,8#
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
BLACK,TRIM0#,1#,3#,4#,8#
BLACK,TRIM0#,1#,2#,8#,TYPE A
BLACK,TRIM0#,1#,8#,9#,TYPE A
GRAPHITE,TRIM0#,1#,2#,8#,TYPE A
GRAPHITE,TRIM0#,1#,8#,9#,TYPE A
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
BLACK,TRIM0#,1#,4#,8#
BLACK,TRIM0#,1#,3#,4#,8#
GRAPHITE,TRIM0#,1#,2#,8#
GRAPHITE,TRIM0#,1#,8#,9#
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
BLACK,TRIM0#,1#,3#,4#,8#
BLACK,TRIM0#,1#,4#,8#
*FRG,BLACK,TRIM0#,1#,4#,8#
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM0#,1#,4#,8#
BLACK,TRIM0#,1#,4#,8#
BLACK,TRIM0#,1#,3#,4#,8#
64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
BLACK,TRIM0#,1#,3#,4#,8#
64720ACOVER ASSY, LUGGAGE COMPARTMENT TRIM, LH
BLACK,TRIM0#,1#,4#,8#
BLACK,TRIM0#,1#,4#,8#
BLACK,TRIM0#,1#,3#,4#,8#
64725CRETAINER, LUGGAGE COMPARTMENT COVER
64726ACLIP, LUGGAGE TRIM, REAR
64749ACOVER, LUGGAGE COMPARTMENT DOOR STRIKER
64749CCLIP(FOR LUGGAGE DOOR STRIKER COVER)
BLACK,TRIM0#,1#,4#,8#
BLACK,TRIM0#,1#,3#,4#,8#
GRAPHITE,TRIM0#,1#,2#,8#
GRAPHITE,TRIM0#,1#,8#,9#
64770COVER ASSY, SPARE WHEEL
64776CGUARD, SPARE WHEEL, NO.2
64779ASTOPPER, SPARE WHEEL COVER
W(MUD GUARD)
64791COVER, BACK DOOR TRIM
BLACK,TRIM0#,1#,4#,8#
*FRG,BLACK,TRIM0#,1#,4#,8#
64791ACLIP(FOR BACK DOOR TRIM)
BLACK,TRIM0#,1#,3#,4#,8#
BLACK,TRIM0#,1#,4#,8#
GRAPHITE,TRIM0#,1#,8#,9#
GRAPHITE,TRIM0#,1#,2#,8#
75260ALOCK ASSY, TOOL BOX
8117
6792150030RETAINER, FRONT DOOR SCUFF PLATE
6792191601RETAINER, FRONT DOOR SCUFF PLATE
6792195500RETAINER, FRONT DOOR SCUFF PLATE
9015140005
9015940073
9015960411
9017906097
9018304046
9018904165
9033325001
9046708119
9046710018
9046805060
9046805092
9054103015
9356755016
56 parts on this diagram · 2 diagrams in section
