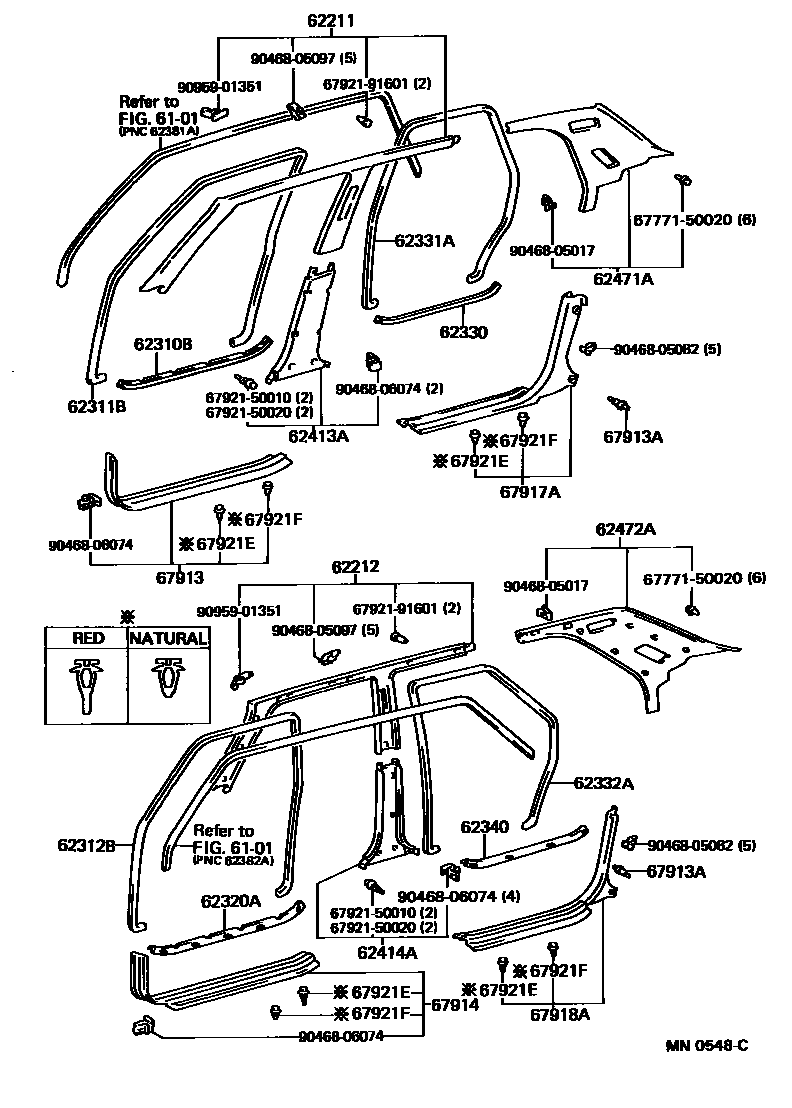

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
6101
62211GARNISH, FRONT PILLAR, RH
62212GARNISH, FRONT PILLAR, LH
62310BWEATHERSTRIP ASSY, FRONT DOOR OPENING TRIM, RH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62320AWEATHERSTRIP ASSY, FRONT DOOR OPENING TRIM, LH
62330WEATHERSTRIP ASSY, REAR DOOR OPENING TRIM, RH
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62340WEATHERSTRIP ASSY, REAR DOOR OPENING TRIM, LH
62413AGARNISH, CENTER PILLAR, LOWER RH
62414AGARNISH, CENTER PILLAR, LOWER LH
62471AGARNISH, ROOF SIDE, INNER RH
62472AGARNISH, ROOF SIDE, INNER LH
67913PLATE, FRONT DOOR SCUFF, RH
67913ACLIP(FOR SCUFF PLATE)
67914PLATE, FRONT DOOR SCUFF, LH
67917APLATE, REAR DOOR SCUFF, RH
67918APLATE, REAR DOOR SCUFF, LH
67921ERETAINER, REAR DOOR SCUFF PLATE
RED
NATURAL
67921FRETAINER, FRONT DOOR SCUFF PLATE
RED
NATURAL
6777150020WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-50020
6792150010RETAINER, FRONT DOOR SCUFF PLATE
main67921-50010
6792150020RETAINER, FRONT DOOR SCUFF PLATE
main67921-50020
6792191601RETAINER, FRONT DOOR SCUFF PLATE
main67921-91601
9046805017
main90468-05017
9046805082
main90468-05082
9046805097
main90468-05097
9046806074
main90468-06074
9095901351
main90959-01351
31 parts on this diagram · 1 diagram in section
