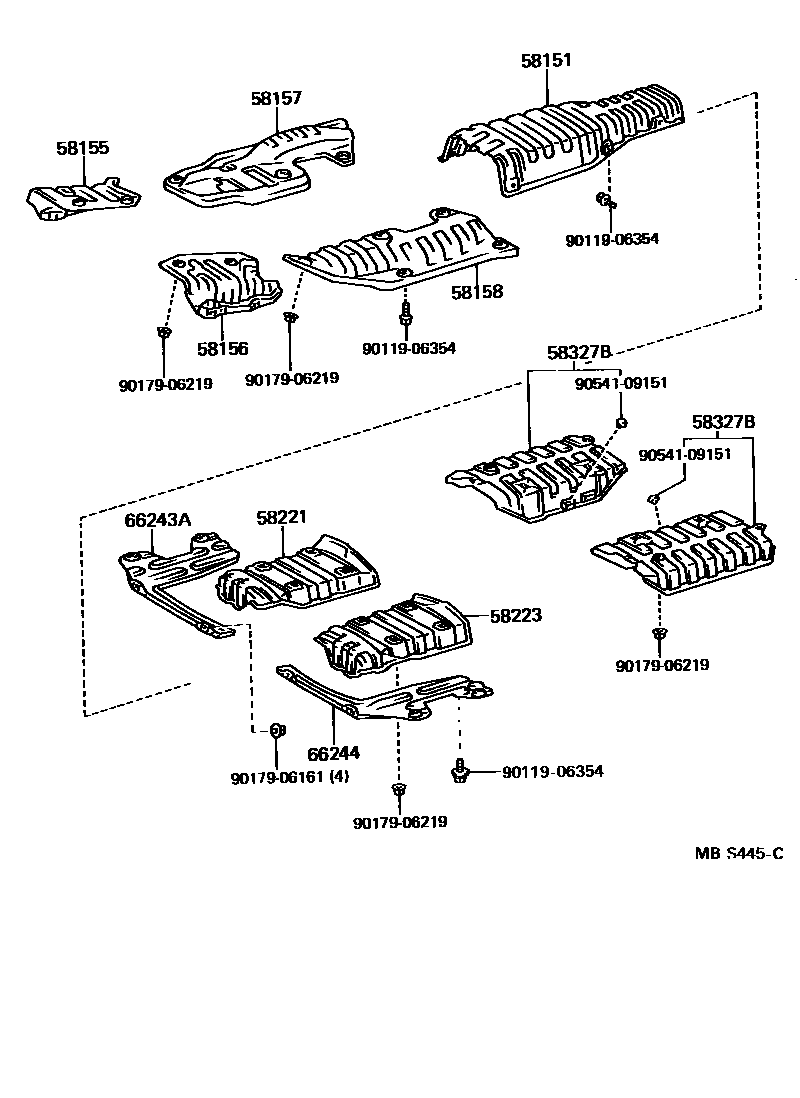

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-50010iUCF10198912-199410

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-50010iUCF10198912-199410

58156INSULATOR, FRONT FLOOR HEAT, NO.4

main58156-50010iUCF10198912-199101

main58156-50020iUCF10..LHD199101-199208

main58156-50030iUCF10199208-199410

58157INSULATOR, FRONT FLOOR HEAT, NO.5

main58157-50010iUCF10198912-199410

58158INSULATOR, FRONT FLOOR HEAT, NO.6

main58158-50010iUCF10198912-199410

58221INSULATOR, CENTER FLOOR HEAT, NO.1

main58221-50010iUCF10198912-199112

main58221-50020iUCF10199201-199410

58223INSULATOR, CENTER FLOOR HEAT, NO.2

main58223-50010iUCF10198912-199112

main58223-50020iUCF10199201-199410

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-50010iUCF10198912-199410

RH

main58328-50010iUCF10198912-199410

LH

66243APROTECTOR, REAR BODY, NO.1

main66243-50010iUCF10198912-199112

main66243-50020iUCF10199201-199212

main66243-50021iUCF10199212-199410

66244PROTECTOR, REAR BODY, NO.2

main66244-50010iUCF10198912-199112

main66244-50020iUCF10199201-199212

main66244-50021iUCF10199212-199410

9011906354

main90119-06354

9017906161

main90179-06161

9017906219

main90179-06219

9054109151

main90541-09151

14 parts on this diagram · 1 diagram in section
