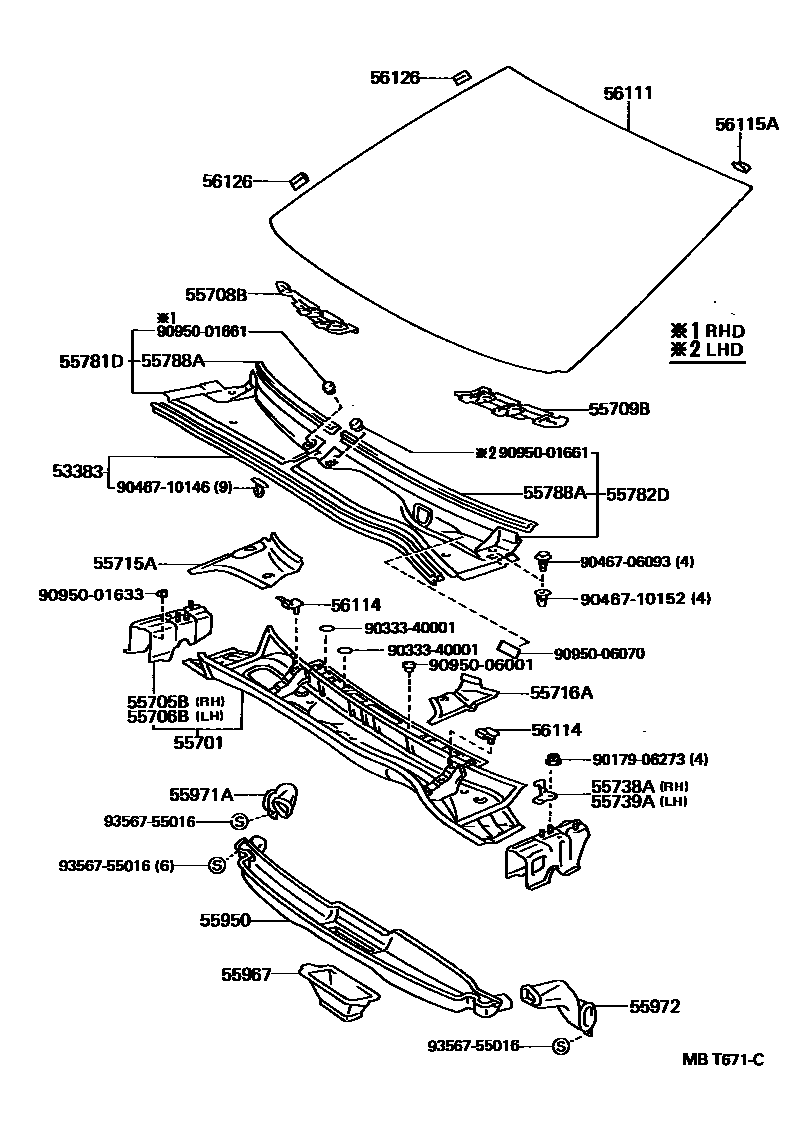

COWL PANEL & WINDSHIELD GLASS

53383SEAL, HOOD TO COWL TOP

main53383-50010iUCF10¥4,650198912-199410

55701PANEL SUB-ASSY, COWL

main55700-50020iUCF10..LHD¥46,600198912-199208

main55700-50021iUCF10..LHD¥46,600199208-199410

main55700-50030iUCF10..RHD¥46,600198912-199208

main55700-50031iUCF10..RHD¥46,600199208-199410

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-50010iUCF10¥5,500198912-199410

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-50010iUCF10¥5,500198912-199410

55708BINSULATOR SUB-ASSY, COWL TOP VENTILATOR

main55708-50010iUCF10¥670198912-199112

sub55783-50020¥670

main55783-50020iUCF10¥670199112-199410

55709BINSULATOR SUB-ASSY, COWL TOP, NO.2

main55709-50010iUCF10¥670198912-199112

sub55784-50010¥670

main55784-50010iUCF10¥670199112-199410

55715ABRACE, COWL TOP TO APRON, RH

main55715-50010iUCF10..LHD¥3,870198912-199410

main55715-50020iUCF10..RHD¥2,120198912-199410

55716ABRACE, COWL TOP TO APRON, LH

main55716-50010iUCF10..LHD¥2,090198912-199410

main55716-50020iUCF10..RHD¥3,950198912-199410

55738ASTOPPER, HOOD, RH

main55738-50010iUCF10¥680198912-199410

55739ASTOPPER, HOOD, LH

main55739-50010iUCF10¥680198912-199410

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-50010iUCF10..V¥6,800198912-199410

main55781-50020iUCF10..RHD¥6,800198912-199410

main55781-50030iUCF10..LHD..EUR¥7,600198912-199410

55782DLOUVER, COWL TOP VENTILATOR, LH

main55782-50010iUCF10..LHD¥6,100198912-199410

main55782-50020iUCF10..RHD¥6,800198912-199410

55788APROTECTOR, COWL TOP VENTILATOR LOUVER

main55788-50010iUCF10..LHD¥1,000198912-199410

RH

main55788-50020iUCF10..RHD¥1,020198912-199410

RH

main55789-50010iUCF10..LHD¥1,080198912-199410

LH

main55789-50020iUCF10..RHD¥1,000198912-199410

LH

55950NOZZLE ASSY, DEFROSTER

main55951-50010iUCF10..LHD¥8,800198912-199410

main55951-50020iUCF10..RHD¥8,800198912-199208

main55951-50030iUCF10..RHD¥8,800199208-199410

55967NOZZLE, DEFROSTER, LOWER

main55967-50010iUCF10..LHD¥2,190198912-199410

main55967-50020iUCF10..RHD¥2,140198912-199410

55971ADUCT, SIDE DEFROSTER NOZZLE, NO.1

main55971-50010iUCF10¥790198912-199410

55972DUCT, SIDE DEFROSTER NOZZLE, NO.2

main55972-50010iUCF10¥800198912-199410

56111GLASS, WINDSHIELD

main56111-50020iUCF10..EUR,GEN,V¥136,000198912-199208

*TL,T=4.7,BRONZE

sub56111-50021¥136,000

main56111-50021iUCF10¥136,000199208-199410

*TL,T=4.7,BRONZE

main56111-50060iUCF10..EUR,GEN,V¥125,000198912-199208

*TL,T=4.7,BLUE

sub56111-50061¥0

main56111-50061iUCF10¥0199208-199410

*TL,T=4.7,BLUE

main56111-50070iUCF10..EUR,GEN,V¥149,000198912-199208

*TL,T=4.7,GRAY

sub56111-50071¥149,000

main56111-50071iUCF10¥149,000199208-199410

*TL,T=4.7,GRAY

main56111-50110iUCF10..ARL¥93,500198912-199208

*LAM,T=4.7

sub56111-50100¥178,000

56114RETAINER, WINDSHIELD GLASS

main56110-50010iUCF10¥680198912-199410

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-50010iUCF10¥180198912-199410

56126SPACER, WINDSHIELD GLASS, NO.2

main56126-50010iUCF10¥120198912-199410

9017906273

main90179-06273¥120

9033340001

main90333-40001¥100

9046706093

main90467-06093¥200

9046710146

main90467-10146¥150

9046710152

main90467-10152¥110

9095001633

main90950-01633¥300

9095001661

main90950-01661¥180

9095006001

main90950-06001¥170

9095006070

main90950-06070¥230

9356755016

main93567-55016¥110

31 parts on this diagram · 1 diagram in section
